| Camera | Video Compression Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG |
|---|
| 影像感測器 | 1/1.8" CMOS, dual sensors |
|---|
| Streaming Capability | 3 streams |
|---|
| Pixel | 4 MP 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) Resolution × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| Electronic Shutter Speed | 1/1 s–1/30,000 s Main stream: 4M/1080p/1.3M/720p (1–25/30 fps) |
|---|
| Video Frame Rate | Sub stream 1: D1/CIF (1–25/30 fps) |
|---|
| Scanning System | Progressive Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps) |
|---|
| Color: 0.0002 lux@F1.4 | Bit Rate Control CBR; VBR |
|---|
| 最低照度 | B/W: 0.0001 lux@F1.4 0 lux (dual light fusion on) H.264: 2816 kbps–13056 kbps |
|---|
| 視頻碼率 | H.264H: 2816 kbps–13056 kbps 80 m (262.47 ft) (dual light fusion–white light only) |
|---|
| Illumination Distance | H.265: 1024 kbps–7936 kbps 250 m (820.21 ft) (dual light fusion–IR only) |
|---|
| Day/Night | Auto (ICR); Color; B/W |
|---|
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
|---|
| BLC | Yes |
|---|
| Illuminator Number | 10 (dual light fusion) |
|---|
| WDR | Yes |
|---|
| Wiper | Yes |
|---|
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; |
|---|
| 焦距 | 6 mm–240 mm White Balance natural light; street lamp |
|---|
| Max. Aperture | F1.4–F4.3 Gain Control Auto; manual |
|---|
| Field of View | H: 63.5°–1.8°; V: 38.4°–1.1°; D: 70.7°–2.0° Noise Reduction 2D NR; 3D NR |
|---|
| Optical Zoom | 40× Motion Detection Yes |
|---|
| Focus Control | Auto; semi-auto; manual Region of Interest (RoI) Yes |
|---|
| Close Focus Distance | 0.5 m–5 m (1.64 ft–16.40 ft) Defog Electronic |
|---|
| Iris Control | Auto; manual; fixed Digital Zoom 16× |
|---|
| PTZ | Image Rotation 180° |
|---|
| Pan: 0° to 360° endless | Up to 24 areas can be set, with up to 8 areas in the |
|---|
| Pan/Tilt Range | Privacy Masking |
|---|
| Tilt: –20° to +90° | same view Pan: 0.1°/s–240°/s |
|---|
| Manual Control Speed | S/N Ratio ≥55 dB Tilt: 0.1°/s–100°/s |
|---|
| Preset Speed | Pan: 240°/s; Tilt: 100°/s Audio |
|---|
| Preset | 300 G.711A; G.711Mu; G726; MPEG2-Layer2; G722.1; Audio Compression G729; PCM |
|---|
| Tour | 8 (up to 32 presets per tour) |
|---|
| Pattern | 5 |
|---|
| Network Port | RJ-45 (10/100 Base-T) |
|---|
| Scan | 5 HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; |
|---|
| 網絡協議 | DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; |
|---|
| 斷電記憶 | Yes IGMP; RTP; PPPoE; RTMP; TCP |
|---|
| Idle Motion | Preset; Pattern; Tour; Scan Interoperability ONVIF (Profle S&G&T); CGI; PSIA |
|---|
| Intelligence | Streaming Method Unicast; Multicast Support human body, human face, motor vehicle User/Host 20 (total bandwidth: 64 M) |
|---|
| Video Metadata | and non-motor vehicle image capture and attributes |
|---|
| extraction. | Storage FTP; Micro SD card (512 GB); NAS Tripwire; intrusion; climbing fences; loitering detection; IE 7 and later versions abandoned/missing object; fast moving; parking Chrome 45 and later versions |
|---|
| IVS (Perimeter Protection) | Browser detection; people gathering; vehicle/human alarm Firefox 52ESR and earlier versions |
|---|
| classification. | Safari |
|---|
| Face Recognition | Yes Management Software Smart PSS; DSS; DMSS |
|---|
| Auto Tracking | Yes Mobile Client Android; iPhone; iPad; Windows Phone www.dahuasecurity.com |
|---|
| Port | Accessories |
|---|
| Analog Output | 1 channel (CVBS output, BNC) Included: |
|---|
| RS-485 | 1 (baud rate: 1200 bps–115200 bps) |
|---|
| 音訊輸入 | 1 channel (LINE IN, bare wire) |
|---|
| 音訊輸出 | 1 channel (LINE OUT, bare wire) |
|---|
| DC36V/2.23A | PFB306W-S |
|---|
| Power Adapter | Bracket |
|---|
| Alarm I/O | 7/2 |
|---|
| Audio I/O | 1/1 Optional: Capture; preset; tour; pattern; recordings on SD card; Alarm Linkage alarm digital input; send email; client E–map Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; Alarm Event memory card state detection; memory space |
|---|
| detection; power exception detection | PFA150 PFB300C-S |
|---|
| Bracket | Bracket Power 36 VDC, 2.23 A (± 25%) Power Supply Hi-PoE Basic: 18 W Power Consumption Max.: 33 W (illuminator + PTZ) |
|---|
| 工作溫度 | –40 °C to +70 °C (–40 °F to +158 °F) |
|---|
| 工作濕度 | ≤95% IP67; TVS 8000 V lightning proof; surge protection; Protection voltage transient protection Structure |
|---|
| Product Dimensions | 442 mm × Φ262 mm (17.40" × Φ10.31") |
|---|
| 淨重 | 9.6 kg (21.16 lb) |
|---|

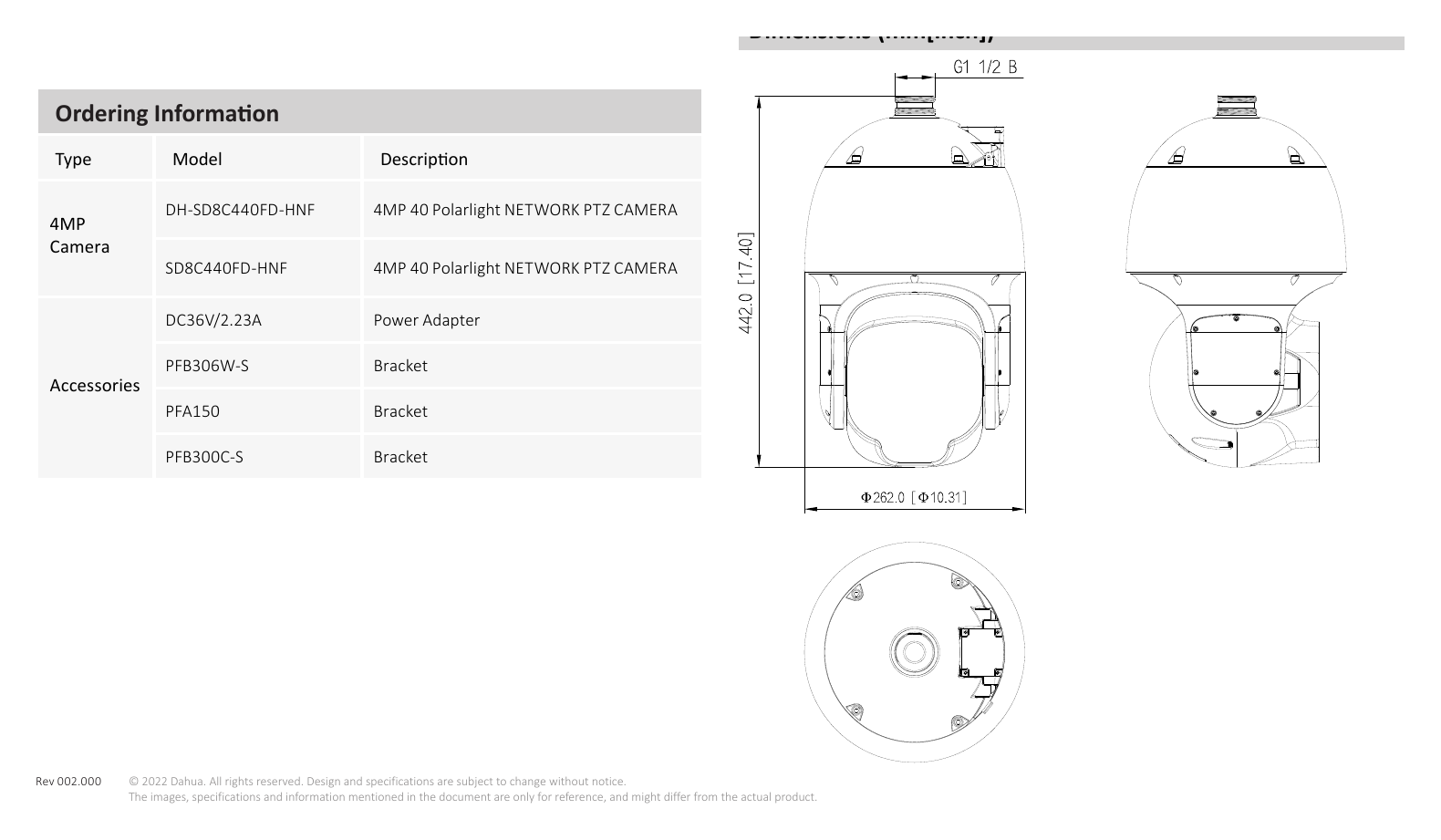

| 毛重 | 12.5 kg (27.56 lb) Dimensions (mm[inch]) Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-SD8C440FD-HNF | 4MP 40 Polarlight NETWORK PTZ CAMERA 4MP |
|---|
| SD8C440FD-HNF | 4MP 40 Polarlight NETWORK PTZ CAMERA |
|---|
| PFB306W-S | Bracket Accessories |
|---|
| PFA150 | Bracket |
|---|
| PFB300C-S | Bracket |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
