| Thermal Camera | Laser Illuminator(Optional) |
|---|
| 影像感測器 | Uncooled VOx Microbolometer Wavelength 808±5nm |
|---|
| Effective Pixels | 640(H)x512(V) Effective distance 1000m (3281ft) |
|---|
| Pixel Size | 17um Angle of Laser Beam 1° ~ 30° |
|---|
| Thermal Sensitivity(NETD) | <40mK@f/1.0 Zoom speed < 4s (Wide ~ Tele) |
|---|
| Spectral Range | 7~14um PTZ |
|---|
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR Pan/Tilt Range Pan: 0° ~ 360° endless;Tilt: -45° ~ 60°(-60° ~ 60° optional) 14(Whitehot/Blackhot/Ironrow/Icefire/ Manual Control Speed Pan: 0.01° ~12° /s; Tilt: 0.01° ~8° /s |
|---|
| Color Palettes | Fusion/Rainbow/Globow/Iconbow1/ |
|---|
| Iconbow2 .etc) | Preset Speed Pan: 0.01° ~12° /s ;Tilt: 0.01° ~8° /s |
|---|
| Thermal Lens | Preset 300 |
|---|
| 鏡頭類型 | Motorized PTZ Mode 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan |
|---|
| Focus Control | Auto / Manual Speed Setup Human-oriented focal length/ speed adaptation |
|---|
| 焦距 | 100mm 20 ~ 100mm 30 ~ 150mm Auto restore to previous PTZ and lens status Power up Action after power failure |
|---|
| H:30.4° ~ 6.2°, | H:20.6° ~ 4.2°, Activate Preset/ Scan/ Tour/ Pattern if there is no |
|---|
| Angle of View | H:6.2°, V:5° Idle Motion |
|---|
| V:23.1° ~ 4.7 ° | V:15.5° ~ 3.1° command in the specified period |
|---|
| D②:3000m | D:3000m D:4500m Protocol DH-SD, Pelco-P/D (Auto recognition) Effective Distance① |
|---|
| R③:750m | R:750m R:1150m |
|---|
| Man(1.8m*0.5m) | I ④ :380m I :380m I :570m Video |
|---|
| D:8800m | D:8800m D:13200m Compression H.264 / MJPEG Effective Distance |
|---|
| R:2300m | R:2300m R:3500m |
|---|
| Vehicle(2.3m*2.3m) | I :1200m I :1200m I :1800m Main Stream: Thermal: 1280x1024(default) / 720P @1~25/30fps |
|---|
| Visible Camera | Visible: 1080P(default) /720P @1~25/30fps Frame Rate |
|---|
| Electronic Shutter Speed | 1/1 ~ 1/30,000s Bit Rate Control CBR / VBR |
|---|
| 最低照度 | 0.001Lux@F1.5(Color), 0.0001Lux@F1.5(B/W) Bit Rate H.264: 640 ~8192Kbps |
|---|
| S/N Ratio | More than 55dB Day/Night Auto(ICR) / Color / B/W |
|---|
| IR Distance | NA BLC Mode BLC / HLC / WDR |
|---|
| IR On/Off Control | NA White Balance Auto / ATW / Indoor / Outdoor / Manual |
|---|
| IR LEDs | NA Noise Reduction 3D DNR |
|---|
| Visible Lens | Motion Detetion Off / On (4 zone, Rectangle) |
|---|
| Max Aperture | F1.5 F1.6 F3.8 F3.8 NA (EIS) |
|---|
| H:59° | H:41.5° H:23.5° H:28.8° |
|---|
| ~ 2.4° | ~ 1.1° ~ 1.0° ~ 0.5° |
|---|
| Digital Zoom | 24x |
|---|
| Optical Zoom | 30X 40X 24X 62X |
|---|
| Flip | 180° |
|---|
| Mirror | Off / On |
|---|
| Close Focus Distance | 100mm ~ 1000mm (0.33ft ~ 3.28ft) |
|---|
| Privacy Masking | Off / On (4 area, Rectangle) Laser Range Finder(Optional) |
|---|
| Wavelength | 1.57um (Eye safe) Audio |
|---|
| Effective distance | 50 ~ 5000m (164ft ~ 16404ft) Compression G.711A / G.711Mu / AAC www.dahuasecurity.com Intelligence Note: |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing ①Effective distance values shown are nominal values and should be used as estimates only. Exact value calculations depend on a wide variety of conditions. ②D:Detection Distance |
|---|
| Advanced Intelligent Functions | Fire detection & alarm ③R: Recognition Distance ④I : Identification Distance |
|---|
| Tracking Trigger Mode | NA Ordering Information |
|---|
| Tracking Trigger Event | NA DH-TPC-PT8620Cy-abc |
|---|
| 類型 | (y = P or N; a = A30150, A20100 or AM100; b = ZC710B, ZC510B, |
|---|
| Network | ZD310A or ZD110B; c = R or L) |
|---|
| Ethernet | RJ-45 (10/100Base-T) y = P: PAL IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, Video standard (y) y = N: NTSC |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x a = A30150: 30 ~ 150mm |
|---|
| Interoperability | ONVIF Profile S&G, PSIA, CGI Thermal Lens (a) a = A20100: 20 ~ 100mm a = AM100: 100mm |
|---|
| Streaming Method | Unicast / Multicast b = ZC710B: 12.5 ~ 775mm, 62X |
|---|
| Max. User Access | 10 Users / 20 Users b = ZC510B: 21 ~ 500mm, 24X Visible Lens (b) |
|---|
| Micro SD (128GB) | b = ZD310A: 7.9 ~ 316mm, 40X Memory status display (Normal / Error / Active / b = ZD110B: 6 ~ 180mm, 30X |
|---|
| Edge Storage | Formatting / Lock), NAS (Network Attached Storage), Local PC for instant c = R: Laser range finder |
|---|
| recording | Laser module (c) c = L: Laser illuminator |
|---|
| Web Viewer | |
|---|
| Management Software | Smart PSS, DSS DH-TPC-PT8620CP-A30150ZC710BR PAL, Thermal lens: 30 ~ 150mm, Visible lens: 12.5 ~ 775mm, Laser range finder |
|---|
| Smart Phone | Android, Ios Accessories |
|---|
| Certifications | Included: |
|---|
| Certification | CE (EN 60950:2000) FCC (FCC Part 15 SubpartB ) 100 ~ 300V AC (Input) |
|---|
| Intelface | 30V DC (Output) Power Supply |
|---|
| Video Interface | 1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional) |
|---|
| Audio Interface | Input/Output 1 Input / 1 Output Mounting Type |
|---|
| RS485 | Support |
|---|
| 警報 | 2/2 In/Out Electrical |
|---|
| 供電 | 100 ~ 300V AC Max. 100W (Laser range finder on) Power Consumption Max. 150W (Laser Illuminator on) Environmental -35°C ~ +65°C (-31°F ~ +149°F) / (-40°C ~ +70°C |
|---|
| 工作環境 | optional) / Less than 95% RH * Start up should be done at above -40°C (-40°F) Dimensions (mm) |
|---|
| Strorage Conditions | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 Construction |
|---|
| Casing | Metal |
|---|

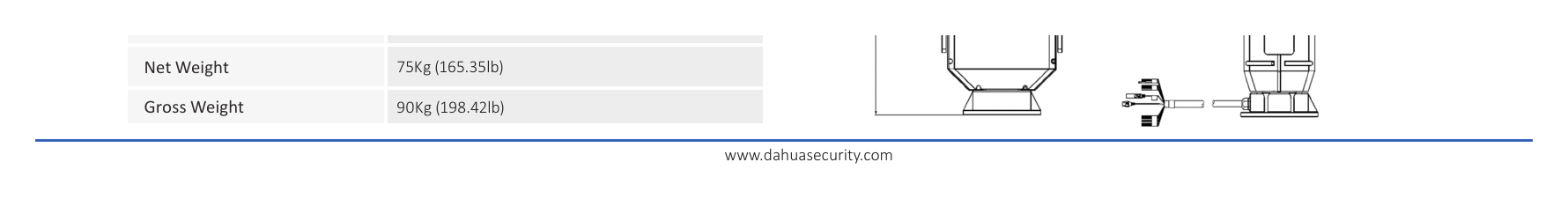

| 尺寸 | 655mm x 515mm x 617mm (25.8"x 20.3" x 24.3") |
|---|
| 淨重 | 75Kg (165.35lb) |
|---|
| 毛重 | 90Kg (198.42lb) www.dahuasecurity.com |
|---|
