| System | HDCVI Camera Input 8/16/32 Channel |
|---|
| Main Processor | Embedded Processor IP Camera Input 8+4/16+8/32 Channel, each channel up to 5MP |
|---|
| 操作系統 | Embedded LINUX Audio In/Out 4/1, BNC |
|---|
| Display | Two-way Talk 1 Mic In, 1 Mic Out, BNC 8CH：1 HDMI, 1 VGA, 1 TV Recording 16/32CH: 2 HDMI, 1 VGA, 1 TV |
|---|
| Compression | H.264+/H.264 |
|---|
| 解像度 | 1920×1080, 1280×1024, 1280×720, 1024×768 |
|---|
| Multi-screen Display | 16CH: 1/4/8/9/16/25 32CH: 1/4/8/9/16/25/36 Main stream: 1080P(1~15fps) |
|---|
| Record Rate | 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Camera title, Time, Video loss, Camera lock, Motion |
|---|
| OSD | Sub steram:D1/CIF/QCIF(1~15fps) detection, Recording |
|---|
| Video Detection and Alarm | Bit Rate 1Kbps ~ 6144Kbps Per Channel Recording, PTZ, Tour, Alarm Out, Video Push, Email, Manual, Schedule (Regular, Continuous), MD (Video Trigger Events |
|---|
| FTP, Snapshot, Buzzer and Screen Tips | Record Mode detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Motion Detection, MD Zones: 396 (22 × 18), Video Video Detection |
|---|
| Loss,Tampering and Diagnosis | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Record Interval Post-record: 10 ~ 300 sec |
|---|
| 警報輸入 | 8/16/16 |
|---|
| Relay Output | 6 |
|---|
| 接口 | 1 RJ-45 Port (1000M) Playback and Backup HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, 8CH: 1/4/9 Network Function DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, |
|---|
| Playback | IP Search (Support Dahua IP camera, DVR, NVS, etc.) 16/32CH: 1/4/9/16 Time /Date, Alarm, MD and Exact Search (accurate Max. User Access 128 users Search Mode to second), Smart search |
|---|
| Smart Phone | iPhone, iPad, Android Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, |
|---|
| Playback Function | Interoperability ONVIF 2.42, CGI Conformant Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom Electrical |
|---|
| Backup Mode | USB Device/Network |
|---|
| 供電 | AC100V-240V, 50/60Hz Storage |
|---|
| 功耗 | <30W (Without HDD) |
|---|
| Internal HDD | 4 SATA Ports, up to 8TB capacity for each disk Environmental |
|---|
| eSATA | 1 Port |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F), 0~ 90% RH 8CH: 3 USB Ports (3 USB 2.0) USB 16/32CH: 3 USB Ports (1 USB 2.0 , 2 USB 3.0) Construction |
|---|
| RS232 | 1 port, for PC communication & Keyboard Dimensions 1.5U, 440mm×417mm×76mm (17.3"x 16.4" x 3.0") |
|---|
| RS485 | 1 Port, for PTZ Control Net Weight 6kg (13.23lb) (without HDD) |
|---|
| RS422 | 1 Port, for PTZ Control Gross Weight 7kg (15.43lb) |
|---|
| Third-party Support | Installation Desktop installation/Rack-mounted Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Certifications Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Third-party Support Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, FCC: Part 15, Subpart B: 2015 and more CE: EN 55032:2015(Class B), EN 55024:2010+A1:2015, EN |
|---|
| Certifications | 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN61000- 3-3:2013 UL:EN60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|
| 類型 | Part Number Description DHI-XVR5408L 8 Channel Penta-brid 1080P Lite 1.5U DHI-XVR5408L Digital Video Recorder 8/16/32 |
|---|
| Channel | 16 Channel Penta-brid 1080P Lite 1.5U DHI-XVR5416L |
|---|
| XVR | Digital Video Recorder 32 Channel Penta-brid 1080P Lite 1.5U DHI-XVR5432L |
|---|

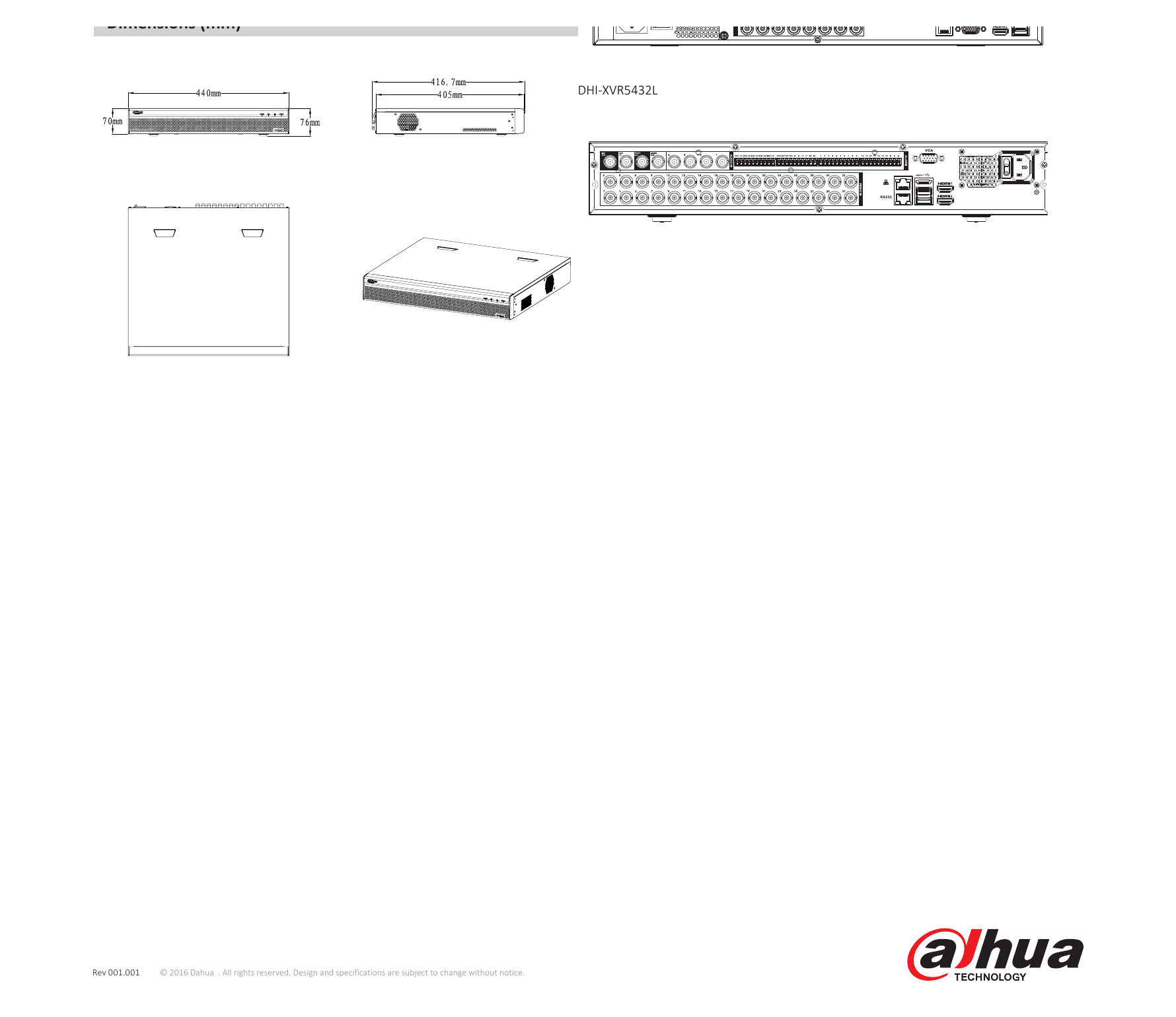

| Digital Video Recorder | DHI-XVR5416L Dimensions (mm) DHI-XVR5432L |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
