| Camera | Smart IR Yes |
|---|
| 影像感測器 | 1/2.7 inch CMOS Mirror Off/On |
|---|
| Effective Pixels | 3840 (H) × 2160 (V), 4K Privacy Masking Off/On (8 area, rectangle) |
|---|
| Scanning System | Progressive Certifications |
|---|
| PAL: 1/25s–1/100000s | CE (EN55032, EN55024, EN50130-4,EN60950-1) Electronic Shutter Speed |
|---|
| NTSC: 1/30s–1/100000s | Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| S/N Ratio | >65dB Port |
|---|
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| Fill Light Working Distance | 20 m (65.2 ft) BNC port |
|---|
| IR On/Off Control | Auto; manual Power |
|---|
| IR LED Number | 12 Power Supply 12V ±30% DC |
|---|
| Pan: 0°–360° | Power Consumption Max 3.56W (12V DC, IR on) |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
|---|
| Rotation: 0°–360° | Environment |
|---|
| 鏡頭 | Operating Temperature -40°C to +55°C (-40°F to +131°F);<95% (non- condensation) |
|---|
| 鏡頭類型 | Fixed-focal -40°C to +55°C (-40°F to +131°F);<95% (non- Storage Temperature condensation) |
|---|
| Mount Type | M12 |
|---|
| Protection Grade | IP67 |
|---|
| 焦距 | 2.8 mm; 3.6 mm; 6 mm Structure |
|---|
| Max. Aperture | F2.0 |
|---|
| Casing | Plastic 2.8 mm: 125° x 105° x 56° (diagonal x horizontal x vertical) |
|---|
| Camera Dimensions | 154.3 mm × 69.8 mm × 69.8 mm (6.07" × 2.75" × 2.75") 3.6 mm: 104° x 87° x 47° (diagonal x horizontal x Angle of View vertical) 6 mm: 62.4° x 54.7° x 31.3° (diagonal x horizontal x |
|---|
| 淨重 | 0.15 Kg (0.33 lb) vertical) |
|---|
| 毛重 | 0.21 Kg (0.46 lb) |
|---|
| 光圈類型 | Fixed iris 2.8 mm: 1.0 m (3.3 ft) |
|---|
| Close Focus Distance | 3.6 mm: 1.8 m (6.2 ft) 6 mm: 3.6 m (11.8 ft) |
|---|
| DORI 偵測距離 | (245.1 ft) (98.1 ft) (48.9ft) (24.6 ft) |
|---|
| Distance | 106.7 m 42.7 m 21.3 m 10.7 m 3.6 mm (350.1 ft) (140.1 ft) (69.9 ft) (35.1 ft) 160 m 64 m 32 m 16 m 6 mm (524.9 ft) (210.0 ft) (105.0 ft) (52.5 ft) CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps; AHD: 4K@15fps; Frame Rate TVI: 4K@15fps; CVBS: 960H 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); Resolution 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/HLC/WDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; manual |
|---|
| Gain Control | Auto; manual www.dahuasecurity.com |
|---|
| Ordering Information | Junction Mount Pole Mount |
|---|
| Description | PFA134 PFA134 + PFA152-E |
|---|
| 類型 | Part Number DH-HAC-HFW1800RP 2.8mm DH-HAC-HFW1800RP 3.6mm DH-HAC-HFW1800RP 6mm 4K Camera 4K HDCVI IR Bullet Camera DH-HAC-HFW1800RN 2.8mm DH-HAC-HFW1800RN 3.6mm DH-HAC-HFW1800RN 6mm |
|---|
| PFA134 | Junction Box (not water-proof) Junction Box (not water-proof)+Pole Mount |
|---|
| PFA134+PFA152-E | Bracket |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|

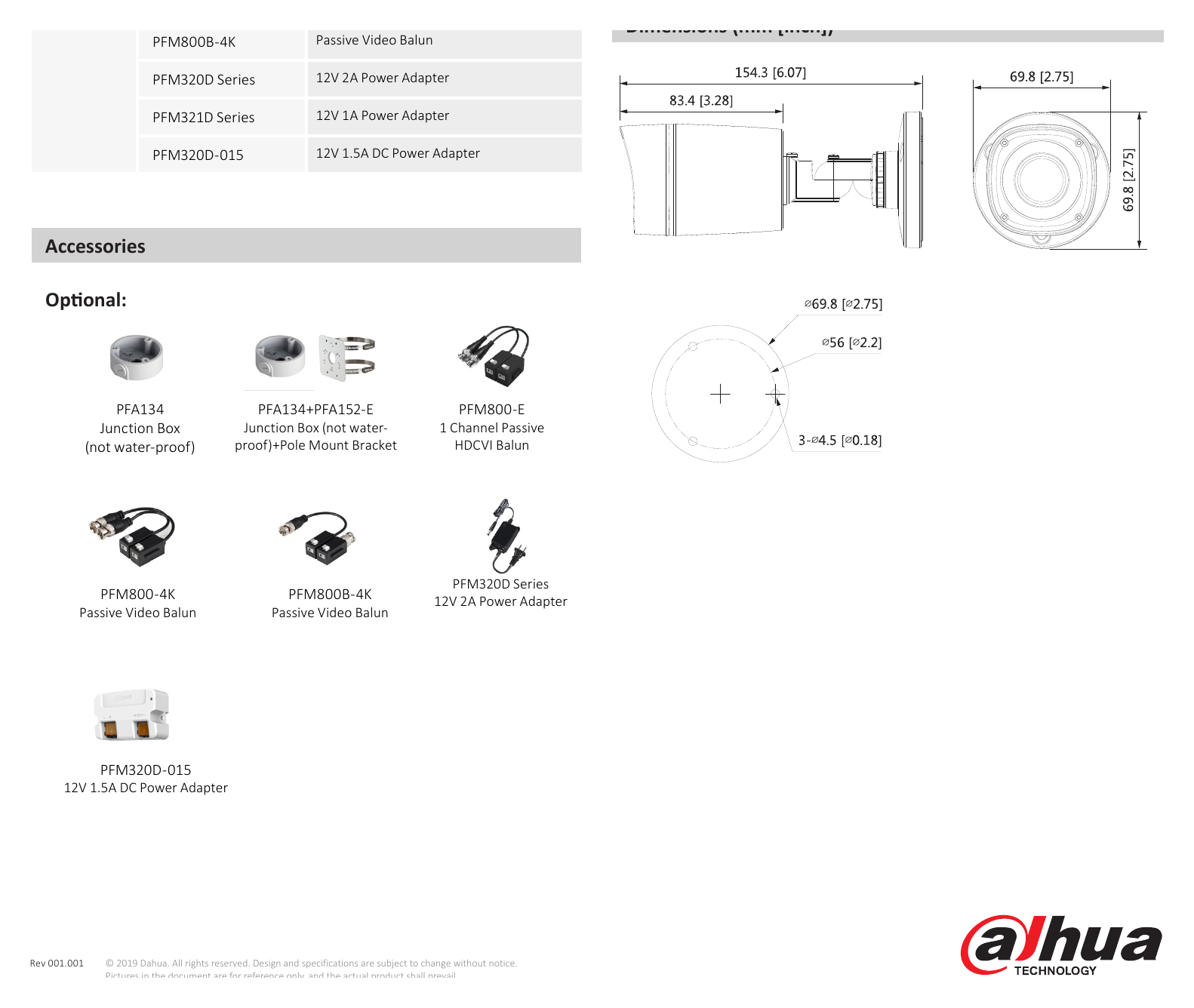

| PFM800-4K | Passive Video Balun Accessories Dimensions (mm [inch]) |
|---|
| PFM800B-4K | Passive Video Balun |
|---|
| PFM320D Series | 12V 2A Power Adapter |
|---|
| PFM321D Series | 12V 1A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A DC Power Adapter Accessories Optional: |
|---|
| Junction Box | Junction Box (not water- 1 Channel Passive (not water-proof) proof)+Pole Mount Bracket HDCVI Balun PFM320D Series |
|---|
| Passive Video Balun | Passive Video Balun PFM320D-015 12V 1.5A DC Power Adapter |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
