| of various indoor and outdoor facilities. | customized audio through the mobile app and XVR. |
|---|
| Functions | AI Coding |
|---|
| Internal SSD | Compared with H.265/H.264, AI coding can reduce more than 50% bit Smart H.265+ Codec reduces bit rate and storage requirements by up to |
|---|
| SMD Plus | 90%, outranking standard H.264 video compression and eliminating the |
|---|
| effective and accurate alarm. | The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700 m for 4K/4MP, 800 m for 1080P and 1200 m for 720p. www.dahuasecurity.com |
|---|
| Technical Specification | Recording Playback |
|---|
| System | Record Mode General, motion detection, alarm,POS |
|---|
| Main Processor | Industrial-grade processor Recording Playback 1/4/8/9 |
|---|
| 操作系統 | Embedded Linux Backup Method USB device and network |
|---|
| Operating Interface | Web; Local GUI Instant playback, general playback, event playback, tag Playback Mode playback Alarm 8 channels: Secondary filtering for human and motor |
|---|
| SMD Plus by Recorder | vehicle , reducing false alarms caused by leaves, rain and General Alarm Motion detection, video loss, tampering lighting condition change No disk, disk error, low space, offline, ip conflict, MAC Anomaly Alarm conflict Record; snapshot (panoramic); local alarm output; IPC 8 BNC ports, CVI access by default, supports HDCVI/ Alarm Linkage external alarm output; access controller; audio; buzzer; |
|---|
| AHD/TVI/CVBS auto-detect | log, preset; email 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps. Ports |
|---|
| Camera Input | 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 1-channel RCA Audio Input 4. CVBS: PAL/NTSC 8-channel BNC (Coaxial Audio) |
|---|
| Up to 12 channels of IPC access | Audio Output 1-channel RCA 4 IP channels by default + 8 channels (analog channels |
|---|
| are converted to IP channels) | Two-way Talk Yes (share the same audio input with the first channel) |
|---|
| IP Camera Input | incoming bandwidth: 64 Mbps, recording bandwidth: 64 |
|---|
| Mbps and outgoing bandwidth: 64 Mbps | 1 SSD: 1 TB (replaceable with 256 GB or 512 GB) HDD Interface *After IP channels are added beyond the existing Stores for 11 days under default settings. channels, the AI Function (SMD) will be disabled. |
|---|
| USB | 2 USB ports (USB 2.0) Main Stream: All channel 5M-N@ (1 fps–10 fps); 4M-N, 1080p@ (1 |
|---|
| HDMI | 1 fps–15 fps); 1080N, 720p, 960H, D1, CIF@ (1 fps–25/30 fps) |
|---|
| 子碼流 | VGA 1 D1, CIF@ (1 fps–15 fps) |
|---|
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
|---|
| Dual-stream | Yes |
|---|
| 視頻碼率 | 32 kbps–6144 kbps |
|---|
| 供電 | 12VDC, 1.5A |
|---|
| Audio Sampling | 8 kHz, 16 bit |
|---|
| 功耗 | <7 W (with SSD) |
|---|
| 音訊碼率 | 64 kbps |
|---|
| 淨重 | 0.57 kg (1.26 lb) 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|---|
| 毛重 | 1.05 kg (2.31 lb) When IP extension mode not enabled: 1/4/8/9 |
|---|
| Multi-screen Display | 198.3 mm × 203.4 mm × 41.5 mm When IP extension mode enabled: 1/4/8/9/16 Product Dimensions (7.81'' × 8.01'' × 1.63'') (W × D × H) |
|---|
| Third-party Camera | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; |
|---|
| Access | Samsung 332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × Packaging Dimensions 2.52") (W× D × H) |
|---|
| 工作溫度 | –10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| 視頻壓縮 | AI Coding; H.265+; H.265; H.264+; H.264 |
|---|
| 工作濕度 | 0%–90% (RH) |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM |
|---|
| 安裝 | Desktop |
|---|
| Network | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; Certifications |
|---|
| 網絡協議 | CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; DNS; DDNS; P2P EN50130; EN 55024 |
|---|
| Mobile Phone Access | iOS, Android |
|---|
| Interoperability | ONVIF 21.12; CGI Conformant Ordering Information Chrome |
|---|
| Browser | IE9 or later Type Model Description Firefox 8 Channels Penta-brid 5M-N/1080p 8 Channels DH-XVR1B08H- |
|---|
| Network Mode | Single-address mode Cooper 1U 1SSD 1T WizSense Digital |
|---|
| WizSense XVR | I(1TB) Video Recorder www.dahuasecurity.com |
|---|

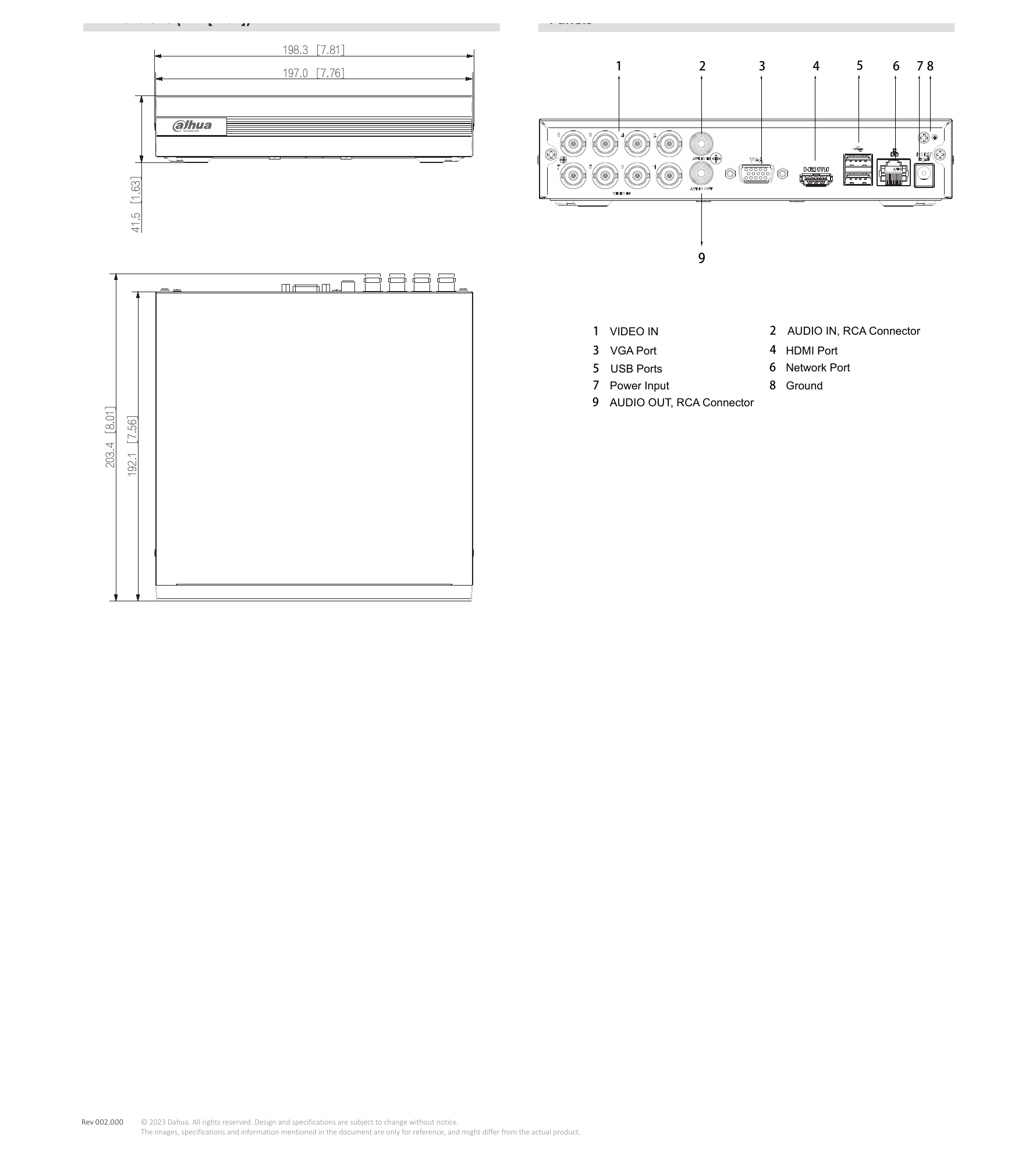

| Dimensions (mm[inch]) | Panels |
|---|
| <> | mm[inch] 1 2 3 4 5 6 78 <> <> 1 VIDEO IN 2 AUDIO IN, RCA Connector 3 VGA Port 4 HDMI Port 5 USB Ports 6 Network Port 7 Power Input 8 Ground 9 AUDIO OUT, RCA Connector <> <> |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
