| Camera | Mirror Yes |
|---|
| 影像感測器 | 4K CMOS Privacy Masking Off/On (8 areas, rectangle) |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Certification |
|---|
| Scanning System | Progressive CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; Certifications |
|---|
| PAL: 1/3 s–1/100000 s | FCC: 47 CFR FCC Part 15, Subpart B; |
|---|
| Electronic Shutter Speed | UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 NTSC: 1/4 s–1/100000 s 0.001 lux@F1.5 (Color, 30 IRE) Port |
|---|
| 最低照度 | 0.0001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port (DIP Switch) |
|---|
| S/N Ratio | >65 dB |
|---|
| 音訊輸入 | One channel built-in MIC |
|---|
| Illumination Distance | 30 m (98.43 ft) Power |
|---|
| Illuminator On/Off Control | Auto 12 VDC ± 30% (It is recommended to use a power Power Supply adapter to supply the power for one camera) |
|---|
| Illuminator Number | 1 (IR light) |
|---|
| 功耗 | Max 5.2 W (12 VDC, IR on) Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Environment |
|---|
| 鏡頭 | Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 鏡頭類型 | Fixed-focal Operating Humidity < 95% (RH), non-condensing |
|---|
| Auto Focus | No Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 鏡頭接口 | M12 Storage Humidity < 95% (RH), non-condensing |
|---|
| 焦距 | 3.6 mm Protection IP67 |
|---|
| Max. Aperture | F1.5 Structure |
|---|
| Field of View | 3.6mm: H: 87°; V: 49°; D: 99° Casing Material Metal |
|---|
| Iris Control | Fixed Product Dimensions Φ94.0 mm × 85.7 mm (Φ3.70" × 3.37") |
|---|
| 淨重 | 0.34 kg (0.75 lb) |
|---|
| Close Focus Distance | 3.6 mm: 2.2 m (7.22 ft) |
|---|
| 毛重 | 0.46 kg (1.01 lb) |
|---|
| Distance | 98.0 m 39.2 m 19.6 m 9.8 m Installation Wall mount; ceiling mount; vertical pole mount 3.6 mm (321.52 ft) (128.61 ft) (64.30 ft) (32.15 ft) CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps |
|---|
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); Resolution 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| WDR | 120 dB |
|---|
| White Balance | Auto; Area white balance |
|---|
| Gain Control | Auto/Manual |
|---|
| Noise Reduction | 3D NR |
|---|
| Illumination Mode | Smart IR |
|---|
| 除霧 | Electronic defog www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-HAC- | 4K Starlight HDCVI Fixed-focal Eyeball |
|---|
| HDW2802TLMP-A | Camera,PAL 2M Camera |
|---|
| HDW2802TLMN-A | Camera,NTSC |
|---|
| PFA13A-E | Junction Box |
|---|
| PFB205W-E | Wall Mount Bracket Adapter Plate of Mini Dome & Eyeball |
|---|
| PFA106 | Camera |
|---|
| Accessories | PFB220C Ceiling Mount Bracket (Optional) |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

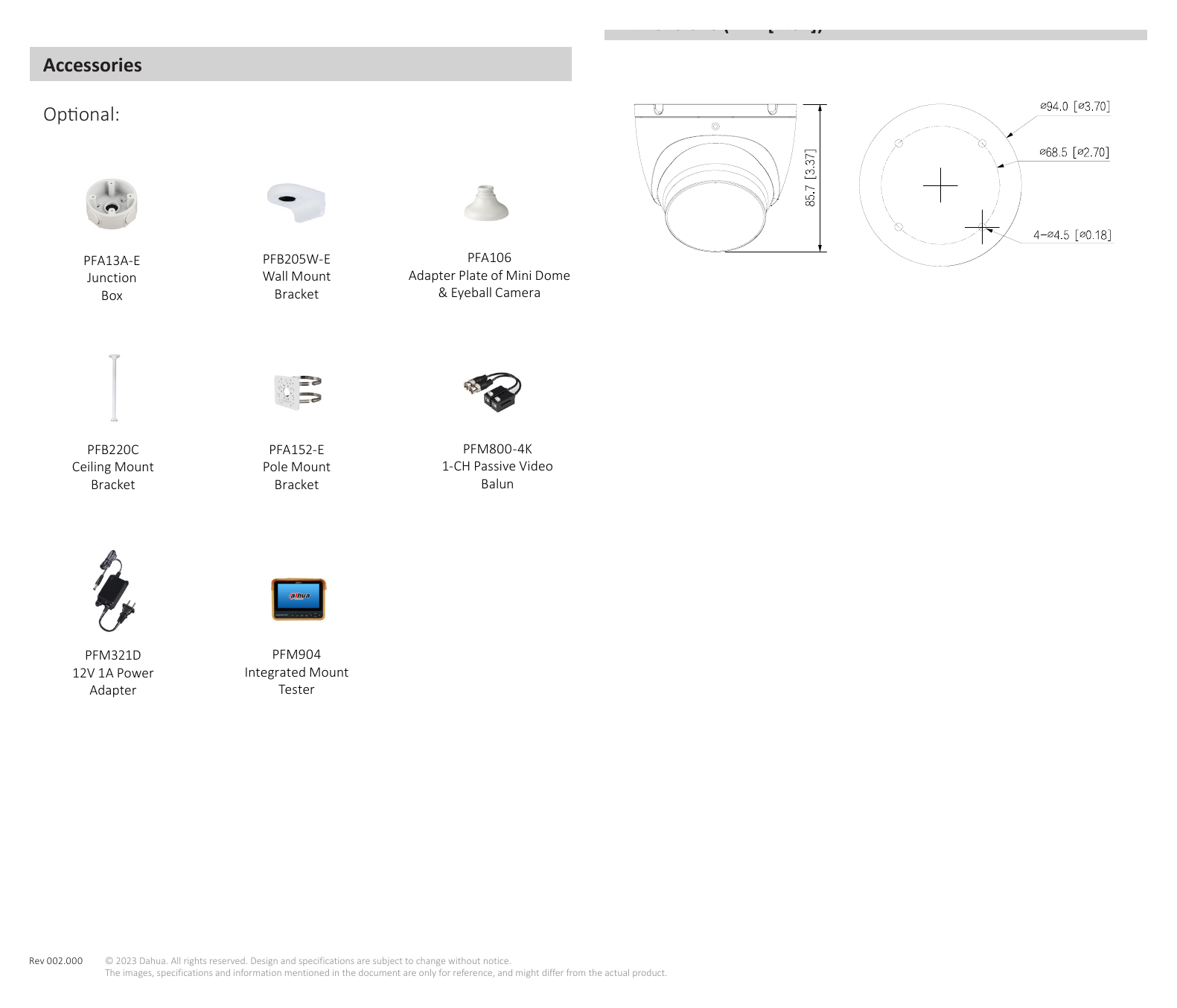

| PFM904 | Integrated Mount Tester Dimensions (mm [inch]) Accessories Optional: |
|---|
| Junction | Wall Mount Adapter Plate of Mini Dome |
|---|
| Box | Bracket & Eyeball Camera |
|---|
| PFB220C | PFA152-E PFM800-4K |
|---|
| Ceiling Mount | Pole Mount 1-CH Passive Video |
|---|
| Bracket | Bracket Balun |
|---|
| Adapter | Tester |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
