| Camera | OSD Menu Support |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Backlight Compensation BLC / HLC / WDR (120dB) |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Scanning System | Progressive Gain Control Auto / Manual |
|---|
| PAL: 1/3s~1/30,000s | Noise Reduction Ultra DNR (2D/3D) Electronic Shutter Speed NTSC: 1/4s~1/30,000s |
|---|
| Digital Zoom | 16x |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on) |
|---|
| Flip | 180° |
|---|
| S/N Ratio | More than 55dB |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| IR Distance | Distance up to 100m (328ft) Certifications |
|---|
| IR On/Off Control | Auto/Manual CE: EN55032/EN55024/EN50130-4 |
|---|
| IR LEDs | 6 Certifications FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
|---|
| 焦距 | 4.8mm~120mm |
|---|
| Video Interface | 1 |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| Audio Interface | 1 channel in |
|---|
| Angle of View | H: 62.8° ~ 2.6° |
|---|
| RS485 | 1 |
|---|
| Optical Zoom | 25x |
|---|
| Alarm I/O | 2/1 |
|---|
| Focus Control | Auto/Manual Electrical |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| 供電 | DC 12V/3A DORI Distance |
|---|
| 功耗 | 13W,20W (IR on) *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Environmental sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / |
|---|
| Detect | Observe Recognize Identify Ingress Protection IP66 1613m(5259ft) 646m(2119ft) 323m(1060ft) 161m(528ft) Vandal Resistance N/A |
|---|
| PTZ | Construction |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° Casing Metal |
|---|
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s Dimensions Φ160(mm) x 295(mm) |
|---|
| Preset Speed | Pan: 240° /s; Tilt: 200° /s Net Weight 3kg(6.61lb) |
|---|
| 預置位 | 300 Gross Weight 4.2kg(9.26lb) |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Auto restore to previous PTZ and lens status after Power up Action power failure Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion command in the specified period |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
|---|
| 解像度 | 1080P(1920×1080)/720P(1280×720) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output/ CVBS Video Output standard definition video output (switchable) www.dahuasecurity.com |
|---|
| Ordering Information | Ceiling Mount Juncon Mount |
|---|
| PFA111 + PFB300C | PFB305W + PFA120 |
|---|
| 類型 | Part Number Description 2MP 25x Starlight IR PTZ HDCVI DH-SD49225I-HC Camera, WDR, PAL 2MP 25x Starlight IR PTZ HDCVI DH-SD49225IN-HC 2MP PTZ Camera, WDR, NTSC |
|---|
| Camera, WDR, NTSC | Power Box Mount Pole Mount |
|---|
| PFB305W + PFA140 | PFB305W + PFA150 |
|---|
| PFB305W | Wall Mount |
|---|
| PFA111 | Mount Adapter |
|---|
| DC12V/3A | Power Supply |
|---|
| PFA140 | Power box |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| PFA120 | Junction Box |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFA150 | Pole Mount PFB305W + PFA151 PFA111+ PFB303S |
|---|
| PFA151 | Corner Mount |
|---|

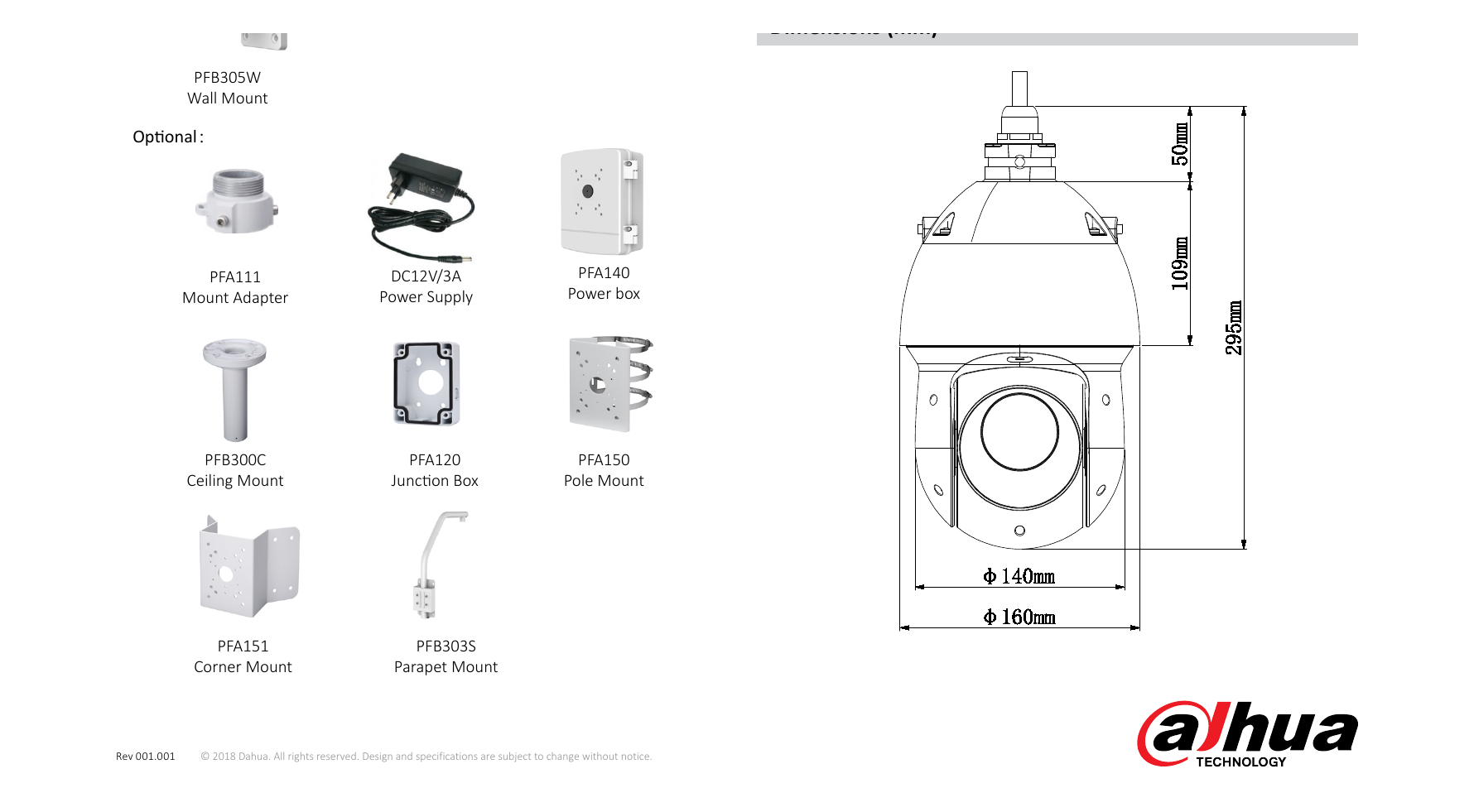

| PFB303S | Parapet mount Accessories Included: Dimensions (mm) PFB305W Wall Mount Optional： |
|---|
| Mount Adapter | Power Supply Power box |
|---|
| PFB300C | PFA120 PFA150 |
|---|
| Ceiling Mount | Junction Box Pole Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
