| Camera | 4M(2592x1520) / 1080P(1920×1080) / Resolution 720P(1280×720) |
|---|
| 影像感測器 | 1/3” CMOS |
|---|
| Frame Rate | 25/30fps@4M/1080P, 25/30/50/60fps@720P |
|---|
| Effective Pixels | 2560(H) x 1440(V), 4 Megapixels 1-channel BNC high definition video output/ CVBS |
|---|
| Scanning System | Progressive Video Output standard definition video output (switchable) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s |
|---|
| Day/Night | Auto(ICR) / Color / B/W Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux@ OSD Menu Support Minimum Illumination F1.6 (IR on) |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| IR Distance | Distance up to 200m (656ft) |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Gain Control | Auto / Manual |
|---|
| IR LEDs | 6 |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| 除霧 | Support |
|---|
| 焦距 | 4.5mm~135mm |
|---|
| Digital Zoom | 16x |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| Flip | 180° |
|---|
| Angle of View | H: 60° ~ 2.2° |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Optical Zoom | 30x Certifications |
|---|
| Focus Control | Auto/Manual CE: EN55032/EN55024/EN50130-4 |
|---|
| Close Focus Distance | 100mm~ 1000mm Certifications FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 DORI Distance *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Video Interface 1 port(BNC, 1.0V[p-p], 75Ω) sensor specification and lab test result according to EN 62676-4 whi |
|---|
| Detect | Observe Recognize Identify Audio Interface 1 channel in |
|---|
| Alarm I/O | 2/1 2700m(8858ft) 1080m(3543ft) 540m(1772ft) 270m(886ft) Electrical |
|---|
| 供電 | AC24V/3A(±25%) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° |
|---|
| 功耗 | 17W, 25W(IR On, Heater On) |
|---|
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s Environmental |
|---|
| Preset Speed | Pan: 300° /s; Tilt: 200° /s |
|---|
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
|---|
| 預置位 | 300 |
|---|
| 防護等級 | IP67 |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Vandal Resistance | IK10 |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Construction Auto restore to previous PTZ and lens status after Casing Metal Power up Action power failure |
|---|
| 尺寸 | φ209×337.4mm Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion command in the specified period |
|---|
| 淨重 | 5.8kg(12.79lb) |
|---|
| Protocol | DH-SD, Pelco-P/D (Auto recognition) Gross Weight 9.6kg(21.16lb) www.dahuasecurity.com |
|---|
| Ordering Information | Ceiling Mount |
|---|
| PFA111 + PFB300C | PFB305W |
|---|
| 類型 | Part Number Description 4MP 30x IR PTZ HDCVI Camera, DH-SD6CE430I-HC WDR, PAL 4MP 30x IR PTZ HDCVI Camera, DH-SD6CE430IN-HC 4MP PTZ WDR, NTSC |
|---|
| Power Box Mount | Pole Mount 4MP 30x IR PTZ HDCVI Camera, PFB305W + PFA140 PFB305W + PFA150 SD6CE430IN-HC WDR, NTSC |
|---|
| PFB305W | Wall Mount |
|---|
| AC24V/3A | Power Adapter |
|---|
| PFA111 | Mount Adapter |
|---|
| PFA140 | Power Box |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| Corner Mount | Parapet Mount |
|---|
| PFB305W + PFA151 | PFA111+ PFB303S |
|---|
| PFA120 | Junction Box |
|---|
| PFA150 | Pole Mount |
|---|
| PFA151 | Corner Mount |
|---|

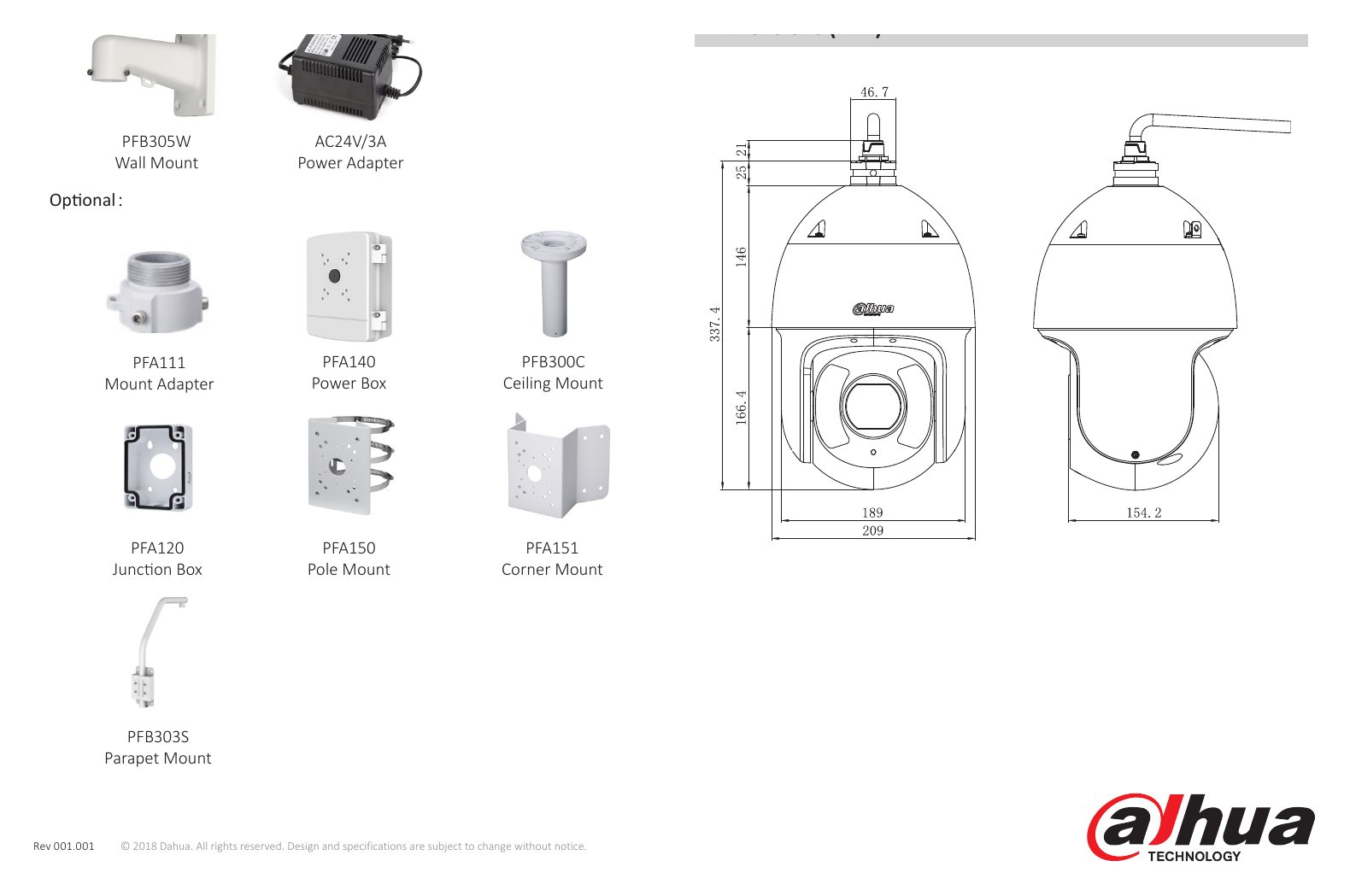

| PFB303S | Parapet Mount Accessories Included: Dimensions (mm) |
|---|
| Wall Mount | Power Adapter Optional： |
|---|
| Mount Adapter | Power Box Ceiling Mount |
|---|
| Junction Box | Pole Mount Corner Mount PFB303S Parapet Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
