DAHUA TPC-DF1241-T-S2 CCTV攝影機安裝・保養

Name: DAHUA TPC-DF1241-T-S2 DHI-TPC-DF1241-T
Brand: Dahua
SKU: TPC-DF1241-T-S2

產品簡介

Dahua TPC-DF1241-T-S2 為DHI-TPC-DF1241-T，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TPC-DF1241-T-S2 香港價格連安裝報價。

Thermal：Focal Length 2 mm 4 mm 8 mm
Detector Type：Vanadium Oxide Uncooled FPA
光圈：F2.2 F1.6 F2.0
最大解像度：256 × 192
H: 94°：H: 71.2° H: 33.4° Field of View

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

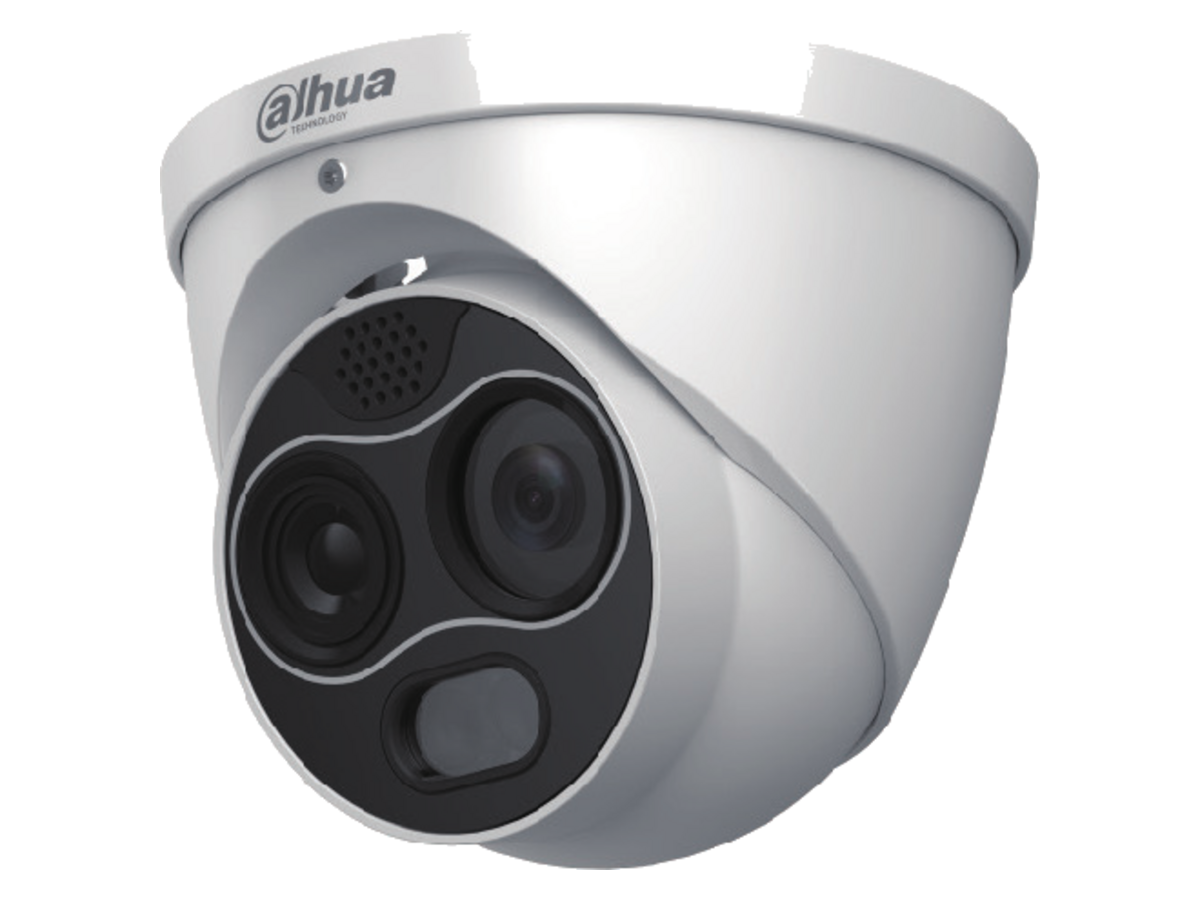

TPC-DF1241-T-S2 Dahua DHI-TPC-DF1241-T 產品圖片

詳細規格

Thermal	Focal Length 2 mm 4 mm 8 mm
Detector Type	Vanadium Oxide Uncooled FPA
光圈	F2.2 F1.6 F2.0
最大解像度	256 × 192
H: 94°	H: 71.2° H: 33.4° Field of View
V: 72°	V: 52° V: 25°
Pixel Pitch	12 μm
Focus Control	Fixed
Spectral Range	8 μm–14 μm
Close Focus Distance	0.3 m (0.98 ft) 1.0 m (3.28 ft) 2.5 m (8.2 ft) Thermal Sensitivity < 40 mK (@f/1.0, 25 Hz, 300 K) (NETD) Day/Night Auto (ICR); Color; B/W
焦距	2 mm 3.5 mm 7 mm
BLC	Yes
Field of View	H: 87.8°, V: 63.8° H: 50.6°, V: 37.8° H: 24°, V: 18°
WDR	DWDR
HLC	Yes
D②: 83 m (272 ft)	D: 146 m (479 ft) D: 292 m (958 ft) Auto; Manual; Indoor; Outdoor; Tracking; Street lamp;
Effective Distance①	White Balance
R③: 21 m (69 ft)	R: 38 m (125 ft) R: 75 m (246 ft) Natural
Human (1.8 m × 0.5 m)	I④: 11 m (36 ft) I: 19 m (622 ft) I: 38 m (125 ft)
AGC	Auto; Manual
D: 389 m	D: 778 m
D: 222 m (728 ft)	Noise Reduction 2D NR; 3D NR
Effective Distance	(1,276 ft) (2,552 ft) R: 55 m (80 ft)
Vehicle (4.0 m × 1.4 m)	I: 27 m (89 ft)
R: 97 m (318 ft)	R: 194 m (636 ft)
I: 49 m (161 ft)	I: 97 m (318 ft) S/N Ratio ≥ 55 dB
Note:	Region of Interest (RoI) Yes ①Effective Distance: The optimal values calculated according to Johnson's Criteria. They are for reference only. The actual performance depends on environmental Image Flip 90°; 180°; 270° conditions. ②D (Detection Distance): Detects objects, but cannot recognize their characteristics.
Exposure Compensation	Yes Detected objects only cover a small amount of pixels (objects must cover more than 3.6 pixels of the image). ③R (Recognition Distance): Classifies objects into general categories, such as human, Intelligence vehicle, and building (the object must cover more than 14 pixels of the image). ④I (Identification Distance): Classifies objects into specific categories based on their General Intelligenc
more than 28 pixels of the image).	Heat Detection & Alarm Cold & Hot Spot Trace
Digital Detail	Call Detection Yes Enhancement (DDE) Temperature Measurement
Digital Zoom	16x Low Temperature Mode:
Noise Reduction	2D NR; 3D NR 0 °C to +550 °C (+32 °F to +1022 °F)
Image Flip	90°; 180°; 270° Max (± 2 °C, ± 2%) Operating Temperature: –20 °C to Temperature Accuracy +50 °C (–4 °F to +122 °F) 18 (Whitehot; Blackhot; Ironrow; Icefire; Fusion; Rainbow; Spot: 12 Color Palettes
Globow; Iconbow1; Iconbow2, etc.)	Line: 12 Temperature Mode Area: 12
Fusion Mode	3 (Warm color; Cool color; Ironred) Support 12 rules simultaneously
Visible	Video and Audio
影像感測器	1/2.7'' CMOS Video Compression H.265; H.264M; H.264H; H.264B; MJEPG
Pixel	4 MP VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by
Electronic Shutter Speed	1/30,000s–1s default) Resolution Visual:
Color: 0.05 lux	Main Stream: 2336 × 1752; 1080p (1920 × 1080) ; 720p
最低照度	Black & white: 0.005 lux (1280 × 720) ; D1 (704 × 576); 2336 × 1752 (by default) 0 lux (IR on) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default)
IR Illumination Distance	≥ 30 m (98.43 ft) www.dahuasecurity.com
Frame Rate	Thermal DHI-TPC-DF1241-TB3F4- Thermal: 256 × 192 3.5 mm lens Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by Camera DW-S2 Visible: 4 MP 4 mm lens default; (sub stream) 1 fps–25 fps adjustable, 15 fps by
default	DHI-TPC-DF1241-TB7F8- Thermal: 256 × 192 7 mm lens 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by DW-S2 Visible: 4 MP 8 mm lens default; (sub stream) 1 fps–30 fps adjustable, 15 fps by
PFA106	Ceiling-mount adapter plate
音訊壓縮	G.711a; G.711mu; PCM Accessories (Optional) PFB220C Ceiling-mount bracket
PFA130-E	Junction box HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;
Protocol	DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP;
PFM320D	Power adapter NTP
Edge Storage	Micro SD card (256 G) Temperature Measurement Range
Interoperability	ONVIF; CGI
Browser	Google: 42 and earlier Min Distance 0.5 m 1m 3m Firefox: 42 and earlier
用戶管理	10 Max Distance 2.5 m 5m 8m Note: Authorized username and password; attached MAC The table displays the measured distances obtained from using the target size 0.1 m x 0.1 m for
安全	address; encrypted HTTPS; IEEE 802.1x; controlled testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.
network access	The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more. Port
Network	One 10/100 M Ethernet port (RJ-45) Accessories
音訊輸入	1
音訊輸出	1
警報輸入	1
警報輸出	1 PFB203W PFA106 PFB220C
Wall-mount bracket	Ceiling-mount Ceiling-mount
RS-485	1 pair adapter plate bracket Power 12 VDC, 1.2 A (± 20%) Power Supply
Basic: < 6.5 W (LED off)	PFA130-E PFM320D Power Consumption
Max: < 13 W (LED on,heater on)	Junction box Power adapter
Environment	Wall Mount Ceiling Mount Junction Mount
工作溫度	–30 °C to +50 °C (–22 °F to ﹢122 °F)
儲存溫度	–30 °C to +70 °C (–22 °F to ﹢158 °F)

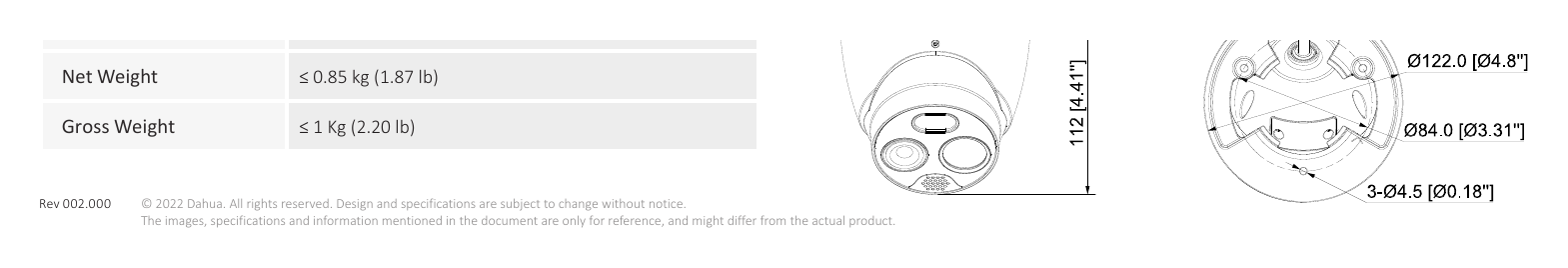

工作濕度	≤ 95% IP67; anti-surge 6 kV; anti-elctrostatic 6 kV (touched by Protection objects); anti-elctrostatic 8 kV (air) Structure Dimensions (mm [inch])
Product Dimensions	122 mm × 122 mm × 112 mm (4.8" × 4.8" × 4.41")
Packaging Dimensions	155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31")
淨重	≤ 0.85 kg (1.87 lb)
毛重	≤ 1 Kg (2.20 lb)
Rev 002.000	© 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com
