| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 PAL: 1/1 s to 1/30,000 s NTSC: 1/1 s to 1/30,000 s |
|---|
| 日夜切換 | IR cut filter Color: 0.005 Lux @(F1.2, AGC ON) |
|---|
| 最低照度 | B/W: 0.001 Lux @(F1.2, AGC ON) 0 lux with IR |
|---|
| 變焦 | 32 × optical, 16 × digital Horizontal field of view: 55° to 1.7° (wide-tele) |
|---|
| 視場角 FOV | Vertical field of view: 33° to 1.0° (wide-tele) Diagonal field of view: 61.5° to 1.9° (wide-tele) |
|---|
| 對焦 | Auto, semi-auto, manual |
|---|
| 焦距 | 4.8 mm to 153.6 mm, 32 × optical |
|---|
| 光圈 | F1.6 to F3.5 |
|---|
| 變焦速度 | Approx. 4.8 s (optical, wide to tele) |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 150 m |
|---|
| 水平旋轉 | 360° endless |
|---|
| 垂直旋轉 | -15° to 90° (auto flip) Pan manual speed: 0.1° to 160°/s Pan preset speed: 160°/s Tilt manual speed: 0.1° to 120°/s Tilt preset speed: 120°/s |
|---|
| 比例變倍 | Rotation speed can be adjusted automatically according to zoom multiples |
|---|
| 預置位 | 256 |
|---|
| 巡航掃描 | 10 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 5 patterns, record time over 10 minutes for each scan Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/One-touch Patrol/None Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
|---|
| 斷電記憶 | Yes 50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080) |
|---|
| 網絡協議 | UTC protocol (or HIKVISION-C protocol in previous DVR) |
|---|
| 圖像設定 | AGC, white balance |
|---|
| 寬動態 WDR | ≥ 120 dB |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 8 programmable privacy masks |
|---|
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) Half-duplex mode RS-485 Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|---|
| 供電 | 36V DC, max. 30 W (IR: 14 W) |
|---|

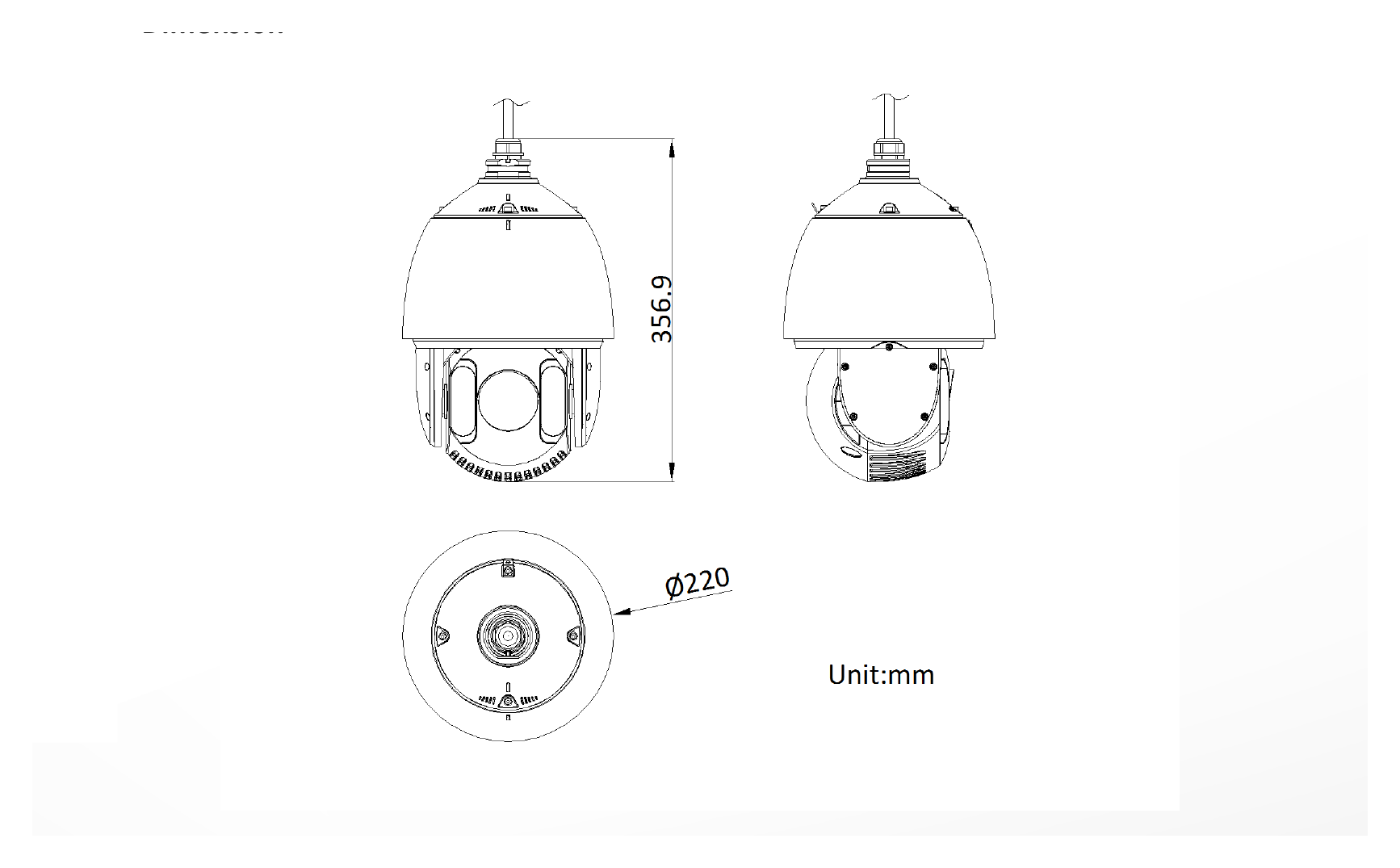

| 尺寸 | Ø 220 mm × 356.9 mm (Ø 8.66" ×14.06") |
|---|
| 重量 | Approx. 4.5 kg (9.92 lb.) |
|---|
| 工作環境 | -30° C to 65° C (-22° F to 149° F). Humidity 90% or less |
|---|
| 語言 | English IP66 (outdoor dome), IK10 (excluding glass window), TVS 4,000 V lightning protection, Protection surge protection and voltage transient protection |
|---|
