| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 220.0 m (721.8 ft) 87.3 m (286.4 ft) 44.0 m (144.4 ft) 22.0 m (72.2 ft) |
|---|
| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/1 to 1/30,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 變焦 | 10x optical, 16x digital |
|---|
| 慢快門 | Yes |
|---|
| 焦距 | 2.8 to 28 mm |
|---|
| 視場角 FOV | Horizontal FOV 108° to 19.8°, vertical FOV 56.4° to 11.5° |
|---|
| 對焦 | Auto, semi-auto, manual |
|---|
| 光圈 | Max. F1.3 |
|---|
| 變焦速度 | Approx. 6.0 s |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | IR Distance: up to 50 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | 355° |
|---|
| 垂直旋轉 | 0° to 90° |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s |
|---|
| 比例變倍 | Yes |
|---|
| 預置位 | 300 |
|---|
| 預置位凍結 | Yes |
|---|
| 守望動作 | Preset, patrol scan 3D Positioning Yes |
|---|
| PTZ 狀態顯示 | Yes |
|---|
| 定時任務 | Preset, patrol scan, dome reboot, dome adjust, auxiliary output |
|---|
| 斷電記憶 | Yes 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) Main Stream 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Main stream: H.265+/H.265/H.264+/H.264 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711/G.722.1/G.726/MP2L2/PCM/AAC 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
|---|
| 同時取流 | Up to 20 channels Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|---|
| 用戶管理 | Up to 32 users; 3 user levels: administrator, operator, and user Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2/1.3, host authentication (MAC address) |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), ANR |
|---|
| 客戶端 | iVMS-4200, HikCentral Pro, Hik-Connect |
|---|
| 瀏覽器 | Chrome 57+, Firefox 52+, Safari 11+, IE11 |
|---|
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 55 dB |
|---|
| 除霧 | Digital Defog |
|---|
| 防抖 | EIS |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 24 programmable polygon privacy masks, mask color or mosaic configurable |
|---|
| Regional Focus | Yes |
|---|
| Regional Exposure | Yes |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
|---|
| 內置麥克風 | 1 built-in microphone |
|---|
| Built-in Speaker | 1 built-in speaker 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|---|
| 警報 | 1 input, 1 output |
|---|
| 電源輸出 | 12 VDC, max. 0.7 W |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception, alarm input and output Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection, audio exception detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm |
|---|
| Alarm Linkage | output, trigger recording, trigger capture, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan) Detects up to 30 faces simultaneously. Supports detecting, capturing, grading, Face Capture selecting of face in motion, and outputs the best face picture of the face Line crossing, intrusion, region entrance, region exiting Perimeter Protection Support alarm triggering |
|---|
| 供電 | 12 VDC, Max. 24 W; PoE (802.3at) |
|---|

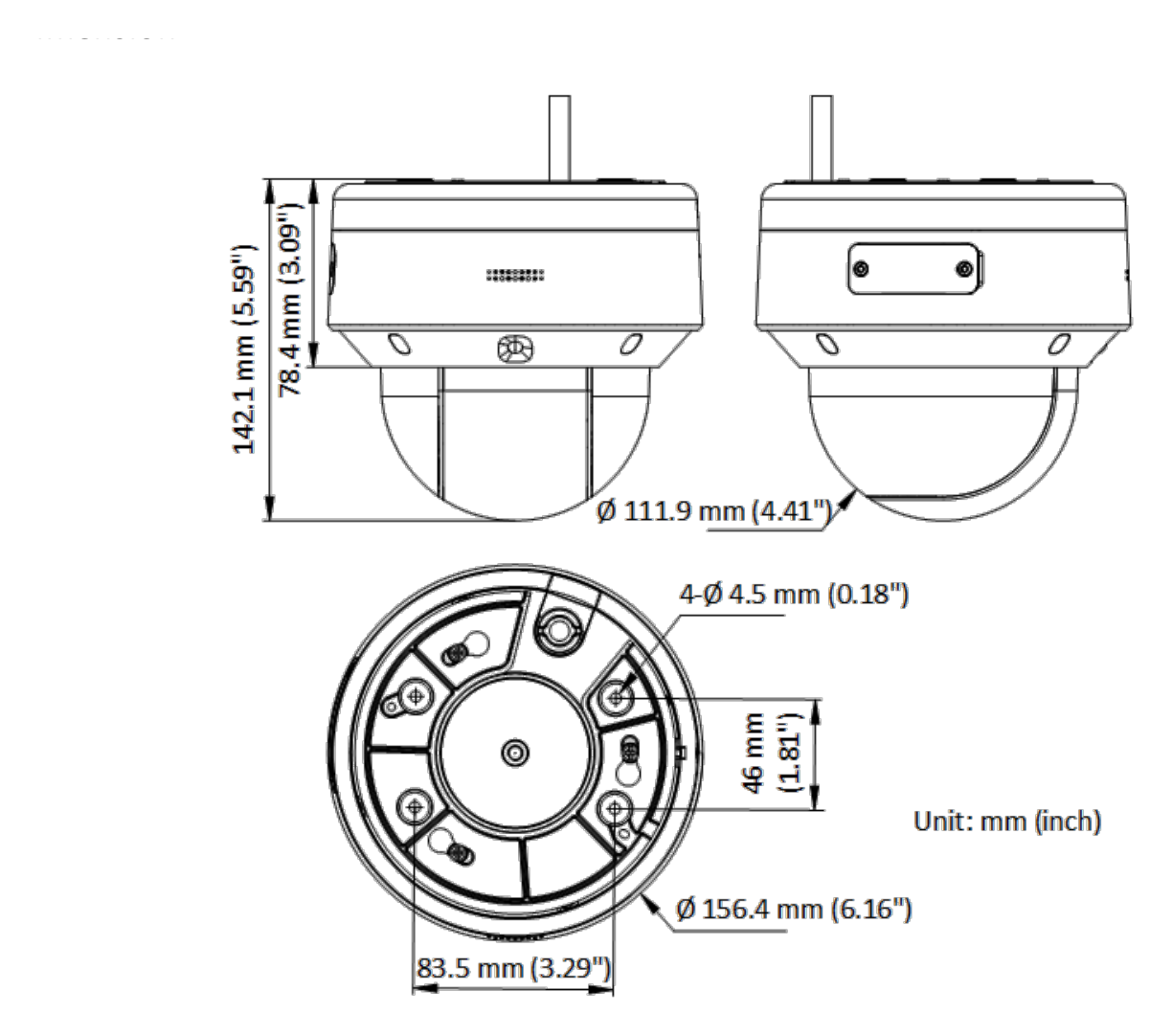

| 尺寸 | Ø 156.4 mm × 142.1 mm (Ø 6.16" × 5.59") |
|---|
| 重量 | Approx. 1.90 kg (4.19 lb.) |
|---|
| 材質 | Metal |
|---|
| 工作環境 | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
|---|
| 一般功能 | Mirror, password protection FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1); |
|---|
| Safety | CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
| 防護等級 | IP66 (IEC 60529-2013) |
|---|
