| 變焦速度 | Approx. 3.6 s (optical lens, wide-tele) |
|---|
| Working Distance | 10 mm to 1500 mm (wide-tele) |
|---|
| Aperture Range | F1.6 to F3.5 |
|---|
| 焦距 | 4.8 mm to 120 mm, 25× optical zoom |
|---|
| 影像增強 | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
|---|
| 最大解像度 | 2560 × 1440 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),50fps |
|---|
| 主碼流 | (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × |
|---|
| 第三碼流 | 576, 640 × 480, 352 × 288),60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Open-ended, support ONVIF, ISA |
|---|
| 同時取流 | Up to 20 channels |
|---|
| 用戶管理 | Up to 32 users,3 levels: Administrator, Operator and User |
|---|
| 客戶端 | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
|---|
| 瀏覽器 | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc. |
|---|
| 警報輸出 | 1-ch alarm output |
|---|
| 警報輸入 | 2-ch alarm input |
|---|
| 音訊輸入 | 1-ch audio input |
|---|
| 音訊輸出 | 1-ch audio output |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M Ethernet, Hi -PoE |
|---|
| H.264+ | Support |
|---|
| H.265+ | Support |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG |
|---|
| H.265 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| Video Bitrate | 32 Kbps to 16384 Kbps |
|---|
| 音訊壓縮 | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM G.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps/64 Kbps/128 Kbps |
|---|
| SVC | Support |
|---|
| 影像感測器 | 1/2.8" progressive scan CMOS |
|---|
| 最低照度 | Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON) Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
|---|
| Gain | Auto/Manual |
|---|
| 快門速度 | 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| Digital Zoom | 16× |
|---|
| 隱私遮蔽 | 24 programmable privacy masks |
|---|
| Focus Mode | Auto/Semi-automatic/Manual |
|---|
| WDR | 120 dB WDR (not supported by full frame rate) |
|---|
| 水平旋轉 | 360° endless |
|---|
| 水平速度 | Configurable, from 0.1°/s to 250°/s, ,Preset speed: 300°/s |
|---|
| 垂直旋轉 | From -5° to 90° (auto-flip) |
|---|
| 垂直速度 | Configurable, from 0.1°/s to 150°/s,Preset Speed: 200°/s |
|---|
| Proportional Zoom | Support |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
|---|
| 斷電記憶 | Support Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
|---|
| PTZ 狀態顯示 | Support |
|---|
| 預置位凍結 | Support Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
|---|
| Basic Event Detection | Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance |
|---|
| Smart Detection | Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection |
|---|
| Smart Tracking | Support |
|---|
| Smart Record | ANR (Automatic Network Replenishment), Dual -VCA |
|---|
| ROI | Main stream, sub-stream, and third stream respectively support four fixed areas. |
|---|

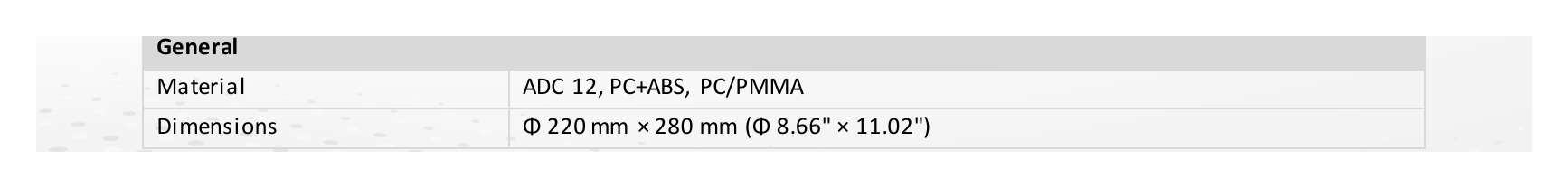

| 材質 | ADC 12, PC+ABS, PC/PMMA |
|---|
| 尺寸 | Φ 220 mm × 280 mm (Φ 8.66" × 11.02") |
|---|
| 重量 | Approx. 3 kg (6.61 lb) IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Protection Level Transient Protection 24 VAC, 1.5 A, 50/60 Hz and PoE (802.3 at), 42.5 to 57 VDC, 0.6 A, class4 Power Max.: 22 W |
|---|
| 工作溫度 | -30°C to 65°C (-22°F to 149°F) |
|---|
| 工作濕度 | ≤ 90% |
|---|
