| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 2200 m (7217.8 ft) 873 m (2864.2 ft) 440 m (1443.6 ft) 220 m (721.8 ft) |
|---|
| 影像感測器 | 1/2.8" progressive scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/1 s to 1/30000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | IR cut filter |
|---|
| 變焦 | 32x optical, 16x digital |
|---|
| 焦距 | 4.8 mm to 153 mm |
|---|
| 變焦速度 | Approx. 4.8 s Horizontal field of view: 50.8° to 2.6° (wide-tele), |
|---|
| 視場角 FOV | Vertical field of view: 29.4° to 1.5° (wide-tele), Diagonal field of view:57.4° to 3° (wide-tele) |
|---|
| 光圈 | Max. F1.6 |
|---|
| 對焦 | Auto, semi-auto, manual |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | IR Distance: up to 200 m |
|---|
| 水平旋轉 | 360° |
|---|
| 垂直旋轉 | -15° to 90° (auto flip) |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|---|
| 比例變倍 | Yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans |
|---|
| 斷電記憶 | Yes |
|---|
| 守望動作 | Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan 3D Positioning Yes |
|---|
| PTZ 狀態顯示 | Yes |
|---|
| 預置位凍結 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, Scheduled Task panorama scan, dome reboot, dome adjust, aux output 50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 kbps to 16384 kbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
|---|
| 同時取流 | Up to 20 channels |
|---|
| 用戶管理 | Up to 32 users, 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|---|
| 客戶端 | iVMS-4200, HikCentral Pro, Hik-Connect |
|---|
| 瀏覽器 | IE11, Chrome 57+, Firefox 52+, Safari 11+ |
|---|
| 日夜模式 | Day, Night, Auto, Schedule |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | EIS |
|---|
| Regional Exposure | Yes |
|---|
| Regional Focus | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 隱私遮蔽 | 24 programmable polygon privacy masks, mask color or mosaic configurable |
|---|
| 信噪比 SNR | > 52 dB |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
|---|
| 警報 | 2 inputs, 1 output 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|---|
| 重設 | Yes |
|---|
| Built-in Speaker | 1 built-in speaker with effective distance reaching max. 30 meters |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception, alarm input and output Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection, audio exception detection |
|---|
| Smart Tracking | Manual tracking, auto-tracking Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm |
|---|
| Alarm Linkage | output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) Detects up to 5 faces simultaneously. |
|---|
| 人臉抓拍 | Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) 24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater); Hi-PoE |
|---|
| 工作環境 | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
|---|
| 材質 | ADC12 |
|---|

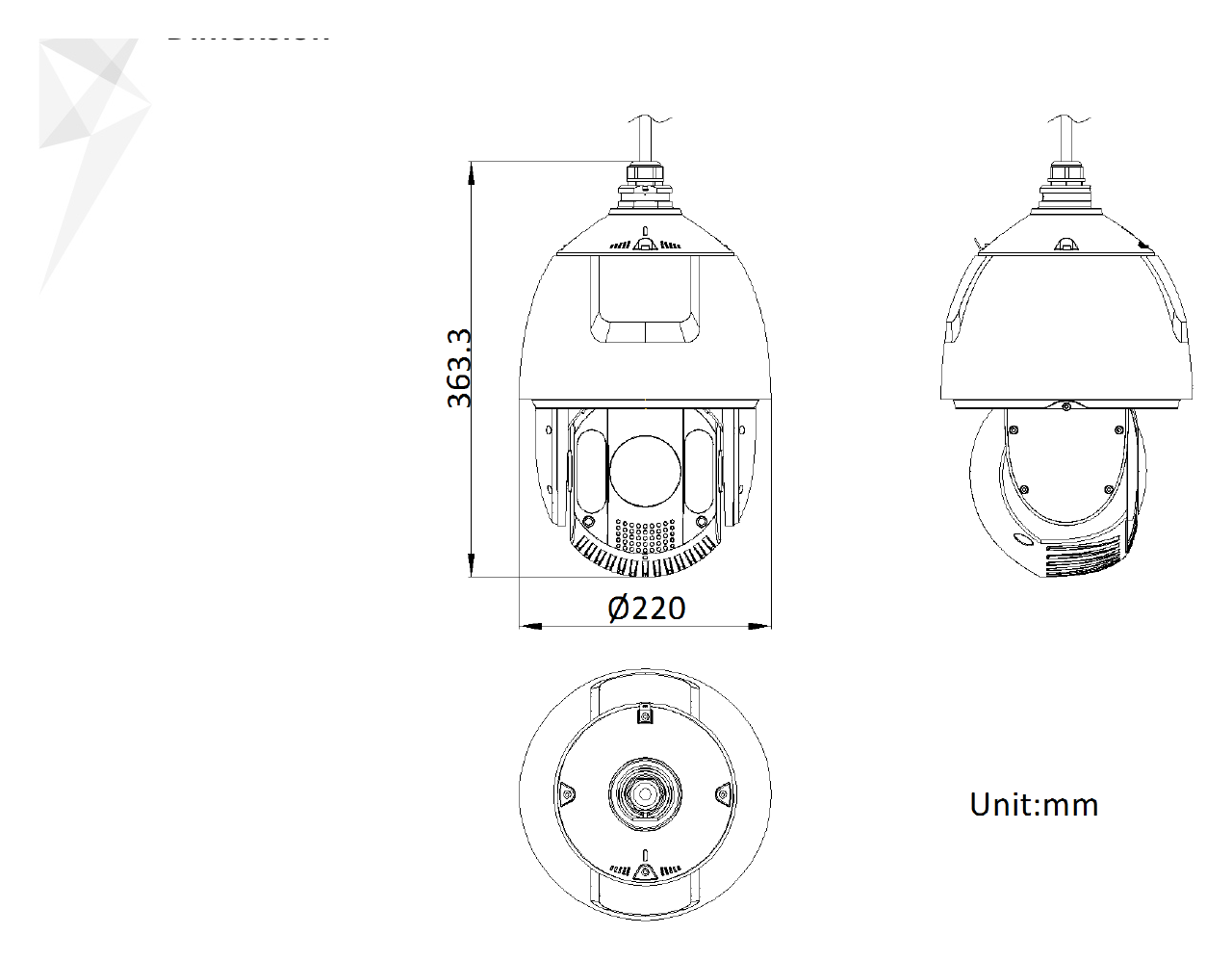

| 尺寸 | Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91") |
|---|
| 重量 | Approx. 5 kg (11.03 lb.) IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) CB (IEC 60950-1 |
|---|
| Safety | CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
