| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 2034.5 m (6674.9 ft) 807.3 m (2648.6 ft) 406.9 m (1335.0 ft) 203.4 m (667.3 ft) |
|---|
| 影像感測器 | 1/1.8" progressive scan CMOS |
|---|
| 最低照度 | Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON) |
|---|
| 快門速度 | 1/1 s to 1/30,000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | IR cut filter |
|---|
| 變焦 | 25x optical, 16x digital |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 對焦 | Semi-auto, manual, auto, rapid focus |
|---|
| 焦距 | 5.9 mm to 147.5 mm |
|---|
| 變焦速度 | Approx. 4.8 s Horizontal field of view: 59.8° to 3.3° (wide-tele), |
|---|
| 視場角 FOV | Vertical field of view: 33.7° to 1.9° (wide-tele), Diagonal field of view: 65° to 3.8° (wide-tele) |
|---|
| 光圈 | Max. F1.5 |
|---|
| 水平旋轉 | 360° |
|---|
| 垂直旋轉 | -20° to 90° (auto flip) |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s |
|---|
| 比例變倍 | Yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
|---|
| 斷電記憶 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, Park Action panorama scan 3D Positioning Yes |
|---|
| PTZ 狀態顯示 | Yes |
|---|
| 預置位凍結 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, Scheduled Task panorama scan, dome reboot, dome adjust, aux output 50 Hz: 25 fps (1920×1080, 1280×960, 1280×720) 60 Hz: 24 fps (1920×1080, 1280×960, 1280×720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 5 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16384 Kbps |
|---|
| H.264 類型 | Baseline profile, main profile, high profile |
|---|
| H.265 類型 | Main profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
|---|
| 音訊碼率 | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
|---|
| 網絡儲存 | NAS (NFS, SMB/ CIFS), ANR IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T) |
|---|
| 同時取流 | Up to 20 channels |
|---|
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User |
|---|
| Smooth Streaming | Yes User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, HikCentral |
|---|
| 瀏覽器 | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
|---|
| 日夜模式 | Day, night, auto, scheduled-switch |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 寬動態 WDR | 140 dB WDR |
|---|
| 除霧 | Optical defog |
|---|
| 防抖 | EIS (Built-in gyroscope to improve EIS performance) |
|---|
| Regional Exposure | Yes |
|---|
| Regional Focus | Yes |
|---|
| 隱私遮蔽 | 24 programmable polygon privacy masks, mask color or mosaic configurable |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
|---|
| 警報 | 7 alarm inputs, 2 alarm outputs 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|---|
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
|---|
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
|---|
| 基本事件 | Motion detection, video tampering alarm, alarm input and output, exception Intrusion detection, line crossing detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection |
|---|
| Smart Tracking | Manual tracking, auto-tracking Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, |
|---|
| Alarm Linkage | Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. Support detecting up to 30 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support vehicl |
|---|
| 一般功能 | Mirror, password protection, watermark, IP address filter 24 VAC±25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater) |
|---|
| 工作環境 | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
|---|

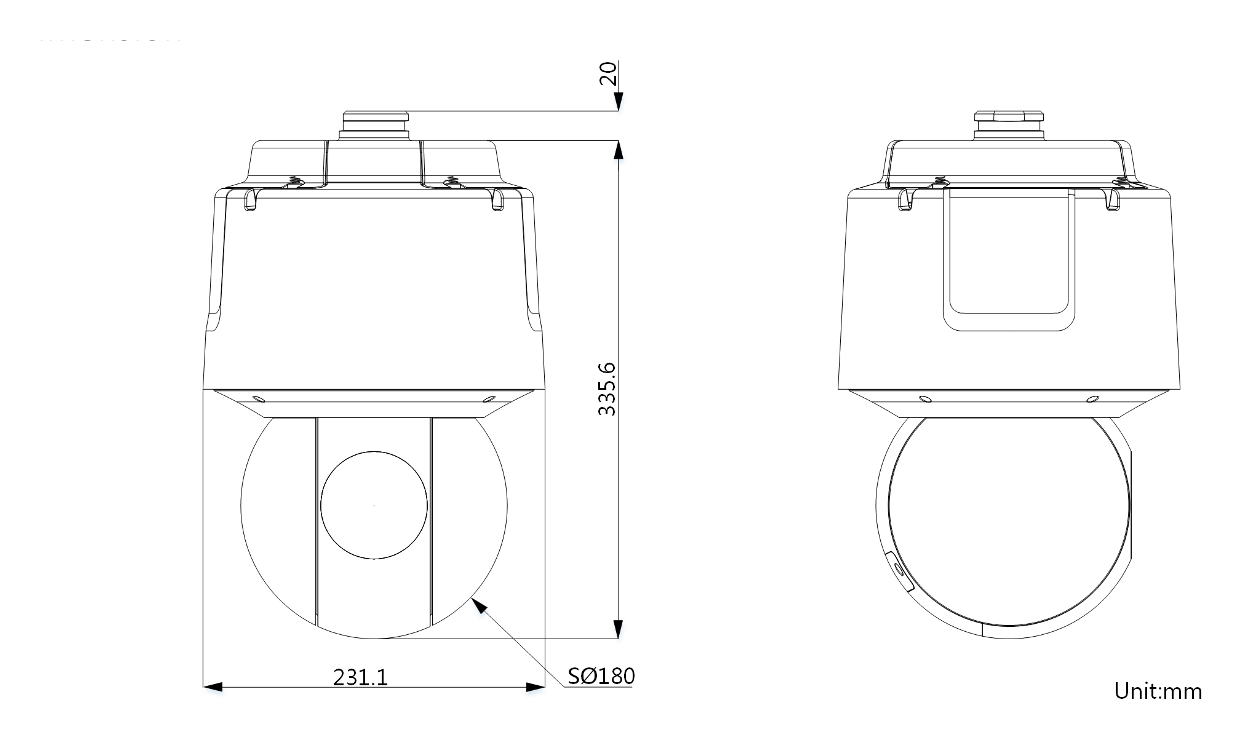

| 尺寸 | ⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14") |
|---|
| 重量 | Approx. 6 kg (13.23 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian FCC SDoC (47 CFR Part 15, Subpart |
|---|
| Safety | CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) Reach (Regulation (EC) No 1907/2006) Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Protection Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
|---|
