Hikvision DS-2DF6A436XG1-ELY 為6A Series 4MP 36 × DarkFighter IR Network Speed Dome，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2DF6A436XG1-ELY 香港價格連安裝報價。
| 影像感測器 | 1/1.8" progressive scan CMOS |
|---|---|
| 最低照度 | Color: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2, AGC ON) |
| 快門速度 | 1/1 s to 1/30,000 s |
| 慢快門 | Yes |
| 日夜切換 | IR cut filter |
| 變焦 | 36x optical, 16x digital |
| 最大解像度 | 2688 × 1520 |
| 對焦 | Auto, semi-auto, manual, rapid focus |
| 焦距 | 6.0 mm to 216 mm, 36× Optical |
| 變焦速度 | Approx. 4.5 s Horizontal field of view: 56.6° to 1.7° (wide-tele), |
| 視場角 FOV | Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
| 光圈 | Max. F1.2 |
| 水平旋轉 | 360° |
| 垂直旋轉 | -20° to 90° (auto flip) |
| 水平速度 | pan speed: configurable from 0.1° to 300°/s; preset speed: 300°/s |
| 垂直速度 | tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| 比例變倍 | Yes |
| 預置位 | 300 |
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
| 斷電記憶 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ 狀態顯示 | Yes |
| 預置位凍結 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output 50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720); |
| 主碼流 | 60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only. 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| 視頻碼率 | 32 Kbps to 16384 Kbps |
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
| H.265 類型 | Main Profile |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 8 fixed regions for each stream |
| Target Cropping | No |
| 音訊壓縮 | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| 音訊碼率 | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) MP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz |
| 環境噪音過濾 | Yes |
| Smooth Streaming | Yes Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest |
| 安全 | authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) |
| 網絡儲存 | NAS (NFS, SMB/ CIFS), ANR IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP |
| 同時取流 | Up to 20 channels |
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User |
| 客戶端 | HikCentral, iVMS-4200, Hik-Connect |
| 瀏覽器 | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| 日夜模式 | Day, night, auto, scheduled-switch |
| 影像增強 | BLC, HLC, 3D DNR |
| 寬動態 WDR | 150 dB WDR |
| 除霧 | Optical defog |
| 防抖 | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| 隱私遮蔽 | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| 信噪比 SNR | ≥ 52 dB |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
| 重設 | Yes |
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
| 機身儲存 | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB |
| 警報 | 7 inputs, 2 outputs 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal -proof alam,audio exception detection,unattended baggage detection, object removal detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (su |
| Smart Tracking | Manual tracking, auto-tracking 3.0 Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks a |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | No |
| De-icing | No |
| 一般功能 | Mirror, password protection, watermark, IP address filter 36 VDC (Max. 45 W, including max. 6 W for heater), Hi -PoE (Max. 40 W, including max. 6 W for heater) |
| 工作環境 | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |

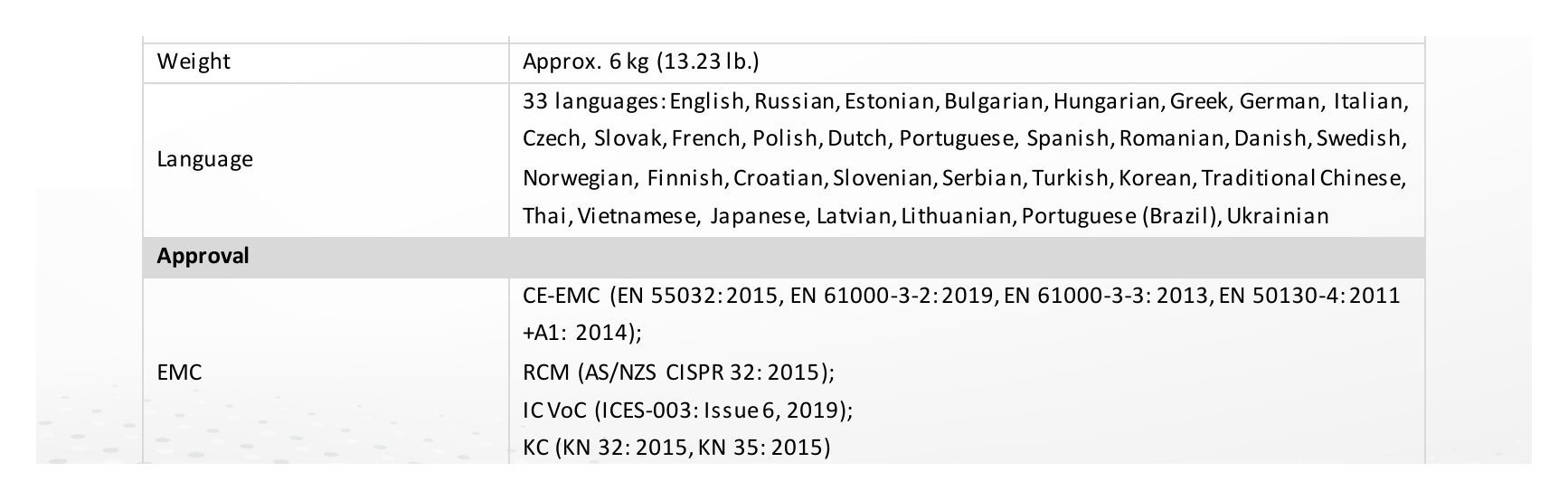

| 尺寸 | ⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14") |
| 重量 | Approx. 6 kg (13.23 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbia n, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian CE-EMC (EN 55032: 2015, EN 61000 |
| EMC | RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) CE-RoHS (2011/65/EU); |
| Environment | WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Anti-Corrosion Protection | NEMA 4X IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10 |
| DORI 偵測距離 | Detect Observe Recognize Identify |
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
| Distance (Tele) | 2979.3 m (9774.6 ft.) 1182.3 m (3878.9 ft.) 595.9 m (1955.1 ft.) 297.9 m (977.4 ft.) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14")｜重量 Approx. 6 kg (13.23 lb.) 33 languages: English, Russian, Estonian, Bulgarian, H
