| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 4300 m (14107.6 ft) 1706.3 m (5598.1 ft) 860 m (2821.5 ft) 430 m (1410.8 ft) |
|---|
| 影像感測器 | 1/1.8" progressive scan CMOS |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.0005 Lux @ (F1.2, AGC ON) |
|---|
| 快門速度 | 1/1 s to 1/30,000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | ICR |
|---|
| 日夜模式 | Day, night, auto, scheduled-switch |
|---|
| BLC | Yes |
|---|
| WDR | 140 dB WDR |
|---|
| HLC | Yes 3D DNR Yes |
|---|
| 除霧 | Yes |
|---|
| EIS | Yes. Built-in gyroscope to improve EIS performance. |
|---|
| Regional Exposure | Yes |
|---|
| Regional Focus | Yes |
|---|
| White Balance | Auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, locked WB |
|---|
| Digital Zoom | 16x |
|---|
| Optical Zoom | 36x |
|---|
| 隱私遮蔽 | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 一般功能 | Mirror, password protection, watermark, IP address filter |
|---|
| Optical Defog | Yes |
|---|
| 焦距 | 6.0 mm to 216 mm, 36× Optical |
|---|
| 對焦 | Semi-auto, manual, auto, rapid focus |
|---|
| 變焦速度 | Approx. 4.5 s Horizontal field of view: 56.6° to 1.7° (wide-tele), |
|---|
| 視場角 FOV | Vertical field of view: 33.7° to 0.9° (wide-tele), Diagonal field of view: 63.4° to 1.9° (wide-tele) |
|---|
| 光圈 | F1.2 |
|---|
| 水平旋轉 | 360° |
|---|
| 垂直旋轉 | -20° to 90° (auto flip) |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s |
|---|
| Proportional Zoom | Yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
|---|
| 斷電記憶 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
|---|
| PTZ 狀態顯示 | Yes |
|---|
| 預置位凍結 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
|---|
| 最大解像度 | 3840 × 2160 50 Hz: 25 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720) 60 Hz: 24 fps (3840 × 2160, 2560×1440, 1920×1080, 1280×960, 1280×720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 |
|---|
| 視頻壓縮 | H.265, H.264, MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16384 Kbps |
|---|
| H.264 類型 | Baseline profile, main profile, high profile |
|---|
| H.265 類型 | Main profile |
|---|
| H.264+ | Yes |
|---|
| H.265+ | Yes |
|---|
| SVC | Yes |
|---|
| ROI | Fixed region |
|---|
| 音訊壓縮 | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
|---|
| 音訊碼率 | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) Support detecting up to 30 faces at the same time. Support detecting, tracking, |
|---|
| 人臉抓拍 | capturing, grading, selecting of face in motion, and output the best face picture of the face Support vehicle detection (license plate number,vehicle model, and vehicle color recognition) |
|---|
| 基本事件 | Motion detection, video tampering alarm, alarm input and output, exception Intrusion detection, line crossing detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection, vandal-proof alarm, audio exception detection |
|---|
| Smart Tracking | Manual tracking, event tracking, auto-tracking |
|---|
| Smart Record | ANR, Dual-VCA |
|---|
| Alarm Linkage | Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
|---|
| 網絡儲存 | NAS (NFS, SMB/ CIFS), ANR IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, ISUP, Open Network Video Interface (Profile S, Profile G, Profile T) |
|---|
| 同時取流 | Up to 20 channels |
|---|
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User |
|---|
| Smooth Streaming | Yes User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hikcentral |
|---|
| 瀏覽器 | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
|---|
| 通訊接口 | RJ45, self-adaptive 10M/100M Ethernet port Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
|---|
| 警報輸入 | 7 alarm inputs |
|---|
| 警報輸出 | 2 alarm outputs |
|---|
| 音訊輸入 | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10% |
|---|
| 音訊輸出 | 1 audio output, line level, impedance: 600 Ω |
|---|
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
|---|
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive 24 VAC ± 25% (Max. 45 W, including max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 6 W for heater) |
|---|
| Operating Conditions | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
|---|

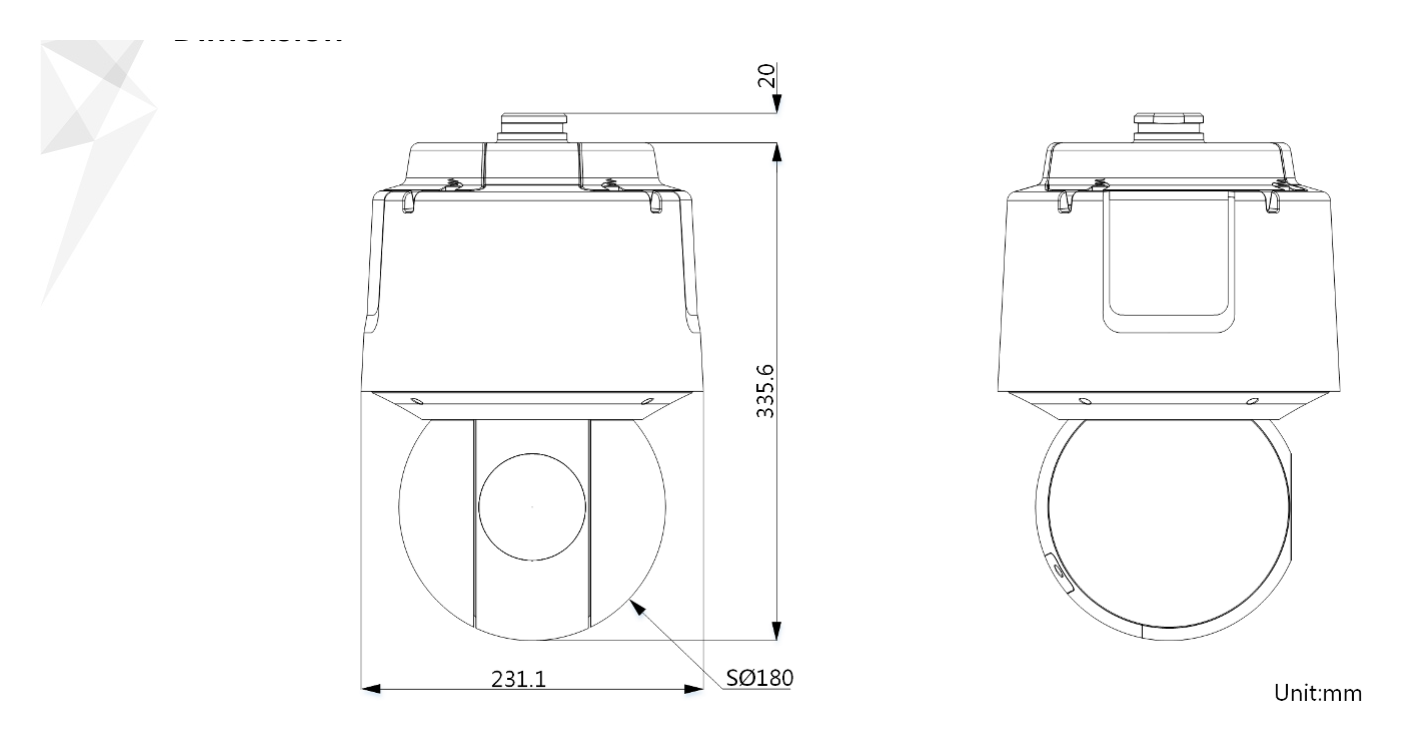

| 尺寸 | ⌀ 231.1 mm × 355.6 mm (⌀ 9.10" × 14") |
|---|
| 重量 | Approx. 6 kg (13.23 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian FCC SDoC (47 CFR Part 15, Subpart |
|---|
| Safety | CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Lightning Protection, Surge Protection and Voltage Transient Protection, ±6 kV Line to Protection Gnd, ±3kV Line to Line, IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) Smart Features Line crossing, intrusion, region ent |
|---|
