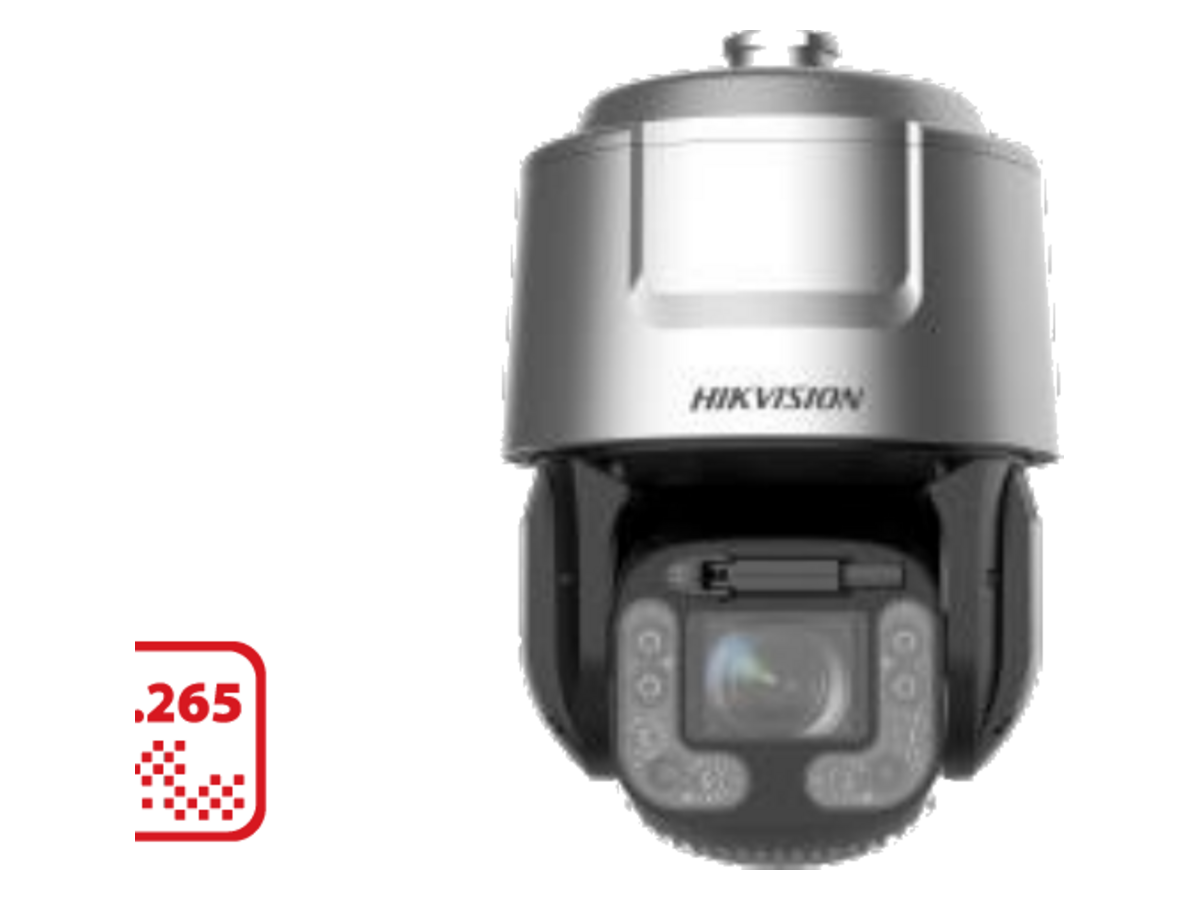

Hikvision DS-2DF7C432MXG1-WR-4G 為7C Series 4MP 32X Realtime Low Consumption 4G Darkfighter Network Speed Dome，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2DF7C432MXG1-WR-4G 香港價格連安裝報價。
| 影像感測器 | 1/1.8" progressive scan CMOS |
|---|---|
| 最低照度 | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5 ，AGC ON), 0 Lux with light |
| 快門速度 | 1/1 s to 1/30,000 s |
| 慢快門 | Yes |
| 日夜切換 | IR cut filter |
| 變焦 | 32x optical, 16x digital |
| 最大解像度 | 2688 × 1520 |
| 對焦 | Auto, semi-auto, manual, rapid focus |
| 焦距 | 6.0 mm to 192 mm |
| 變焦速度 | Approx. 5 s Horizontal field of view: 60.2° to 1.6° (wide-tele), |
| 視場角 FOV | Vertical field of view: 35.2° to 0.9° (wide-tele), Diagonal field of view: 67.4° to 2.6° (wide-tele) |
| 光圈 | Max. F1.5 |
| 補光類型 | Hybrid |
| 補光距離 | IR Distance: up to 200 m, White Light Distance: up to 30 m |
| 智能補光 | Yes |
| 水平旋轉 | 360° |
| 垂直旋轉 | -15° to 90°,auto flip |
| 水平速度 | Pan speed: configurable from 0.1° to 130°/s; preset speed: 130°/s |
| 垂直速度 | Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| 比例變倍 | Yes |
| 預置位 | 300 |
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
| 斷電記憶 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ 狀態顯示 | Yes |
| 預置位凍結 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random sca n, frame scan, panorama scan, dome reboot, dome adjust, aux output 50 Hz: 25fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 f |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| 視頻碼率 | 32 Kbps to 16384 Kbps |
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
| H.265 類型 | Main Profile |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 8 fixed regions for each stream |
| Target Cropping | No |
| 音訊壓縮 | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| 音訊碼率 | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) MP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16KHz, 32KHz, 48KHz |
| 環境噪音過濾 | Yes |
| Smooth Streaming | Yes |
| 網絡儲存 | NAS (NFS, SMB/ CIFS), ANR IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP |
| 同時取流 | Up to 20 channels |
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest |
| 安全 | authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140 -2 level 2) |
| 客戶端 | HikCentral, iVMS-4200, Hik-Connect |
| 瀏覽器 | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Mobile Communication Type | 4G EU: TDD-LTE: Band38/40/41, FDD-LTE: Band 1/3/5/7/8/20/28,WCDMA/HSPA+:Band1/5/8 LA: TDD-LTE: Band38/40, FDD-LTE: Band 1/2/3/4/5/7/8/12/17/28/66,WCDMA/HSPA+:Band1/2/3/4/5/8 |
| 標準 | TDD-LTE/FDD-LTE/WCDMA/HSP A+ |
| SIM | No |
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| 寬動態 WDR | 150 dB |
| 日夜模式 | Day, night, auto, scheduled-switch |
| 影像增強 | BLC, HLC, 3D DNR |
| 除霧 | Optical defog |
| 防抖 | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| 隱私遮蔽 | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| 信噪比 SNR | ≥ 52 dB |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
| 重設 | Yes |
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
| 機身儲存 | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| 警報 | 7 inputs, 2 outputs 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | No |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal -proof alam,audio exception detection,unattended baggage detection, object removal detection Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PT |
| Smart Tracking | Manual tracking, auto-tracking |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Model with -W: Yes, Model without -W: No |
| De-icing | No |
| 一般功能 | Mirror, password protection, watermark, IP address filter in daylight: 3.75 W (4G proactive mode, no preview, supplement light off) Low power local recording scenario at night: 4.65 W (4G proactive mode, no preview, supplement light on) Low power 4G preview real -time transmission scenario in daylight: 5.05 W |
| 供電 | (4G preview, supplement light off) Low-power 4G preview real -time transmission scenario at night: 5.95 W (4G preview, supplement light on) Average power consumption for the device with 4G preview and real -time transmission round-the-clock: 5.1 W (4G preview, no supplement light during the day, supplement light on at night, 5.05 W for 14 hours during the day, 5.95W for 10 hours at night) |
| 工作環境 | Temperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95% |

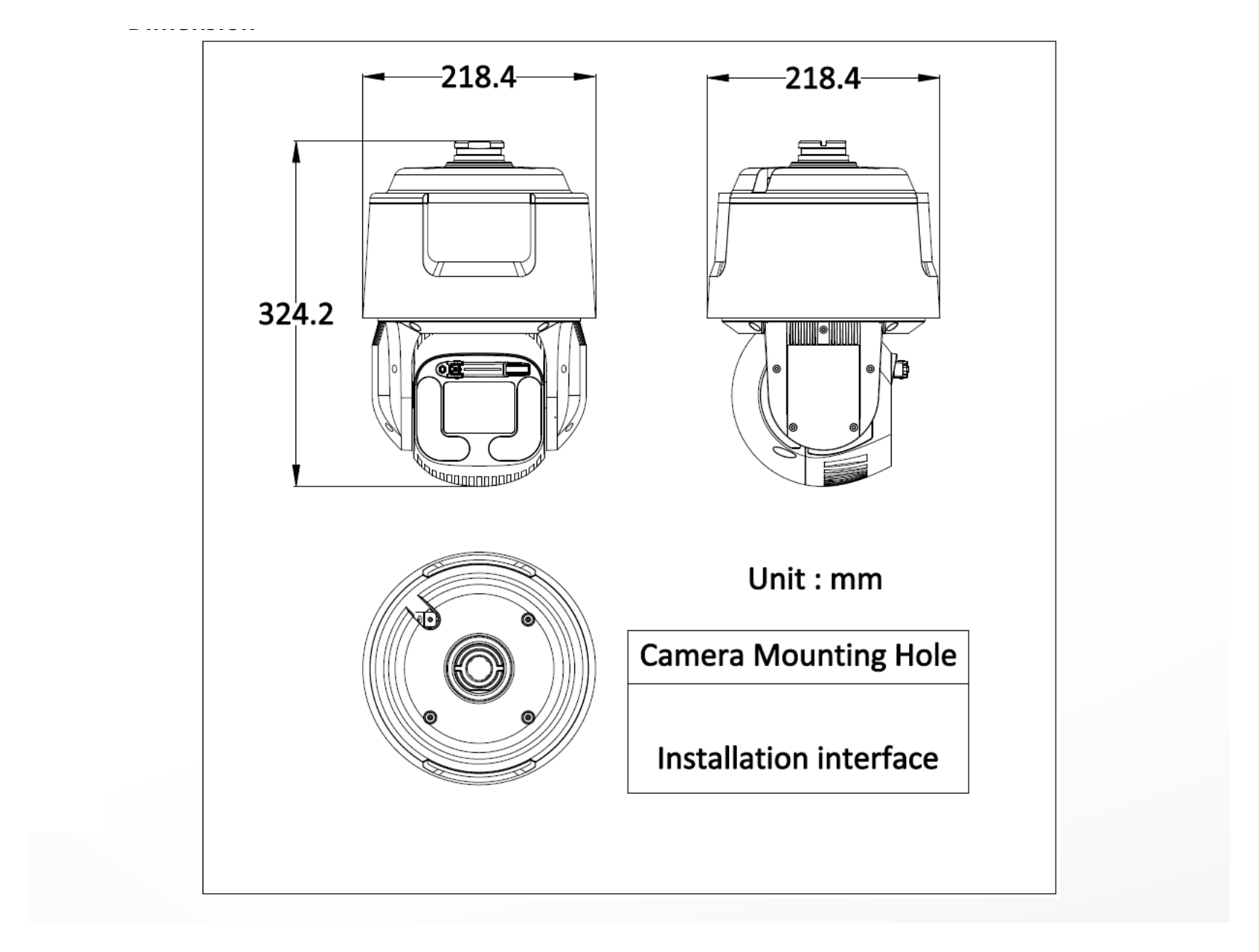

| 尺寸 | Ø 218.4 mm × 324.2 mm (Ø 8.6" × 12.76") |
| 重量 | Approx. 4.2 kg (9.26 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chi nese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian CE-RED: EN 301489-1 V2 |
| Environment | WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP66 (IEC 60529-2013), 6000V Lightning Protection, Surge Protection and Voltage Protection Transient Protection |
| DORI 偵測距離 | Detect Observe Recognize Identify |
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
| Distance (Tele) | 2648.3 m (8688.7 ft.) 1050.9 m (3447.8 ft.) 529.7 m (1737.9 ft.) 264.8 m (868.8 ft.) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
Ø 218.4 mm × 324.2 mm (Ø 8.6" × 12.76")｜重量 Approx. 4.2 kg (9.26 lb.) 33 languages: English, Russian, Estonian, Bulgarian
DS-2DF7C432MXG1-WR-4G Hikvision 7C Series 4MP 32X Realtime Low Consumption 4G Darkfighter Network Speed Dome亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2DF7C432MXG1-WR-4G 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：變焦方面，DS-2DF7C432MXG1-WR-4G 係 32x optical, 16x digital，DS-2DF8425IXG1-ELWY 係 25x optical, 16x digital；焦距方面，DS-2DF7C432MXG1-WR-4G 係 6.0 mm to 192 mm，DS-2DF8425IXG1-ELWY 係 5.9 mm to 147.5 mm, 25× Optical；補光類型方面，DS-2DF7C432MXG1-WR-4G 係 Hybrid，DS-2DF8425IXG1-ELWY 係 IR。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2DF8425IXG1-ELWY 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2DF7C432MXG1-WR-4G 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2DF7C432MXG1-WR-4G Hikvision 7C Series 4MP 32X Realtime Low Consumption 4G Darkfighter Network Speed Dome供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝、藍田CCTV 閉路電視安裝、觀塘CCTV 閉路電視安裝、銅鑼灣CCTV 閉路電視安裝、鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2DF7C432MXG1-WR-4G 香港價格連安裝報價。
DS-2DF7C432MXG1-WR-4G Hikvision 7C Series 4MP 32X Realtime Low Consumption 4G Darkfighter Network Speed Dome適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
企業秘書、稅務顧問公司裝 CCTV 監控客戶公司文件檔案室，稅季外勤同事出入記錄管理，配合門禁分級保障大量客戶公司機密資料，防止未授權查閱。免費上門評估，上環、灣仔企業服務公司即約報價。免費上門度尺、報價一目了然，香港、新界一帶即日上門。
WhatsApp 查詢 →建築工程顧問公司裝 CCTV 監控圖則模型檔案室同繪圖工作間，客戶項目資料同工程圖紙屬機密，配合工地現場監控延伸管理，出入口記錄訪客同承建商往來。免費上門評估，觀塘、灣仔工程顧問樓層即約報價。免費上門度尺、報價一目了然，香港、新界一帶即日上門。
WhatsApp 查詢 →知識產權、專利代理公司裝 CCTV 監控未公開專利文件檔案室同會議室，防止資料外洩爭議，出入口錄影配合門禁分級記錄客戶同代理人往來。持牌團隊免費勘察，中環、灣仔專業樓層歡迎查詢。免費上門度尺、報價一目了然，香港、新界一帶即日上門。
WhatsApp 查詢 →牙科診所裝 CCTV 監控候診區同牙科手術椅同X光機，診症室私隱合規佈點不入鏡治療過程，X光室防盜同醫療糾紛錄影存證。免費上門評估，銅鑼灣、尖沙咀專科醫務中心即約報價。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →骨科診所裝 CCTV 監控候診區同復康治療區同X光儀器，診症室私隱合規佈點不入鏡治療過程，復康儀器房防盜同醫療糾紛錄影存證。免費上門評估，銅鑼灣、尖沙咀專科醫務中心即約報價。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →耳鼻喉科診所裝 CCTV 監控候診區同內窺鏡同精密診斷儀器，診症室私隱合規佈點不入鏡治療過程，內窺鏡儀器室防盜同醫療糾紛錄影存證。免費上門評估，銅鑼灣、尖沙咀專科醫務中心即約報價。免費現場勘察、報價清晰透明，香港、新界一帶即日上門。
WhatsApp 查詢 →查看更多CCTV 監控適用場景，請參閱 CCTV 監控安裝工程。
如需整套CCTV 監控方案，請參閱 CCTV 監控安裝工程。
