Hikvision DS-2DF7C432MXG1-WRP 為4MP 32X Realtime Low Consumption 4G Darkfighter Traffic Network Speed Dome，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2DF7C432MXG1-WRP 香港價格連安裝報價。
| 影像感測器 | 1/1.8" progressive scan CMOS Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with light |
|---|---|
| 快門速度 | 1/30 s to 1/30000 s |
| 慢快門 | Yes |
| 日夜切換 | IR cut filter |
| 變焦 | 32x optical, 16x digital |
| 最大解像度 | 2688 × 1520 |
| 對焦 | Auto,semi-auto,manual |
| 焦距 | 6.0 mm to 192 mm |
| 變焦速度 | Approx. 5 s Horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6° |
| 光圈 | Max. F1.5 |
| 補光類型 | Hybrid |
| 補光距離 | IR Distance: up to 200 m, White Light Distance: up to 30 m |
| 智能補光 | Yes |
| 水平旋轉 | 360° |
| 垂直旋轉 | -15° to 90°,auto flip |
| 水平速度 | Pan speed: configurable from 0.1° to 130°/s; preset speed: 130°/s |
| 垂直速度 | Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| 比例變倍 | Yes |
| 預置位 | 300 |
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
| 斷電記憶 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| PTZ 狀態顯示 | Yes |
| 預置位凍結 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output 50 Hz: 25fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) Main stream: |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
| H.265 類型 | Main Profile |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 8 fixed regions for each stream |
| Target Cropping | No |
| 音訊壓縮 | G.711,MP3,MP2L2,G.722.1,G.726,PCM,AAC-LC 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) MP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16KHz, 32KHz, 48KHz |
| 環境噪音過濾 | Yes SSL/TLS,ISUP,WebSocket,WebSockets,ARP,SRTP,IPv4,IPv6,TCP/IP,ICMP,HTTP,HTTPS,FT |
| 網絡協議 | P,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,Q oS,IPv4/IPv6,UDP |
| Smooth Streaming | Yes |
| 網絡儲存 | NAS (NFS, SMB/ CIFS), ANR |
| API | ISAPI,EZVIZ,Open Network Video Interface,ISUP,OTAP,SDK |
| 同時取流 | Up to 20 channels |
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User Password protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest |
| 安全 | authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140 -2 level 2) |
| 客戶端 | HikCentral, iVMS-4200, Hik-Connect |
| 瀏覽器 | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
| Mobile Communication Type | 4G EU: TDD-LTE: Band38/40/41, FDD-LTE: Band 1/3/5/7/8/20/28,WCDMA/HSPA+:Band1/5/8 LA: TDD-LTE: Band38/40, FDD-LTE: Band 1/2/3/4/5/7/8/12/17/28/66,WCDMA/HSPA+:Band1/2/3/4/5/8 |
| 標準 | TDD-LTE/FDD-LTE/WCDMA/HSP A+ |
| SIM | No |
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| 寬動態 WDR | 150 dB |
| 日夜模式 | schedule,auto,night,Day |
| 影像增強 | BLC, HLC, 3D DNR |
| 除霧 | Digital defog |
| 防抖 | Yes. Built-in gyroscope to improve EIS performance. |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| 隱私遮蔽 | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| 信噪比 SNR | ≥ 52 dB |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
| 重設 | Yes |
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
| 機身儲存 | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 256 GB |
| 警報 | 7 inputs, 2 outputs 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | No |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive alarm input and output,Motion detection,exception(HDD full,HDD error,network disconnected,IP address conflict,illegal login,abnormal restart), video tampering alarm audible warning,trigger alarm output,trigger recording,notify surveillance center,send email,Upload to FTP/NAS/memory card Traffic Violation Evidence Collection: illegal parking, |
| Intelligent Transportation | fallen object detection, pedestrian detection, congestion detection, roadblock |
| System | detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection; (2) Road incident detection for urban roads: congestion detection, roadblock detection, construction detection, traffic accident detection, fog detection, smoke detection, and fire detection Supports general highway incident detection ：supports pothole detection, crack detection, and |
| 一般功能 | IP address filter,mirror,password reset via email,third stream |
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Model with -W: Yes, Model without -W: No |
| De-icing | No |
| 供電 | Average power consumption for the device with 4G preview and real -time transmission round-the-clock: 5.1 W (4G preview, no supplement light during the day, supplement light on at night, 5.05 W for 14 hours during the day, 5.95W for 10 hours at night) |
| 工作環境 | Temperature: -30°C to 65°C (-22°F to 149°F), Humidity: ≤ 95% |

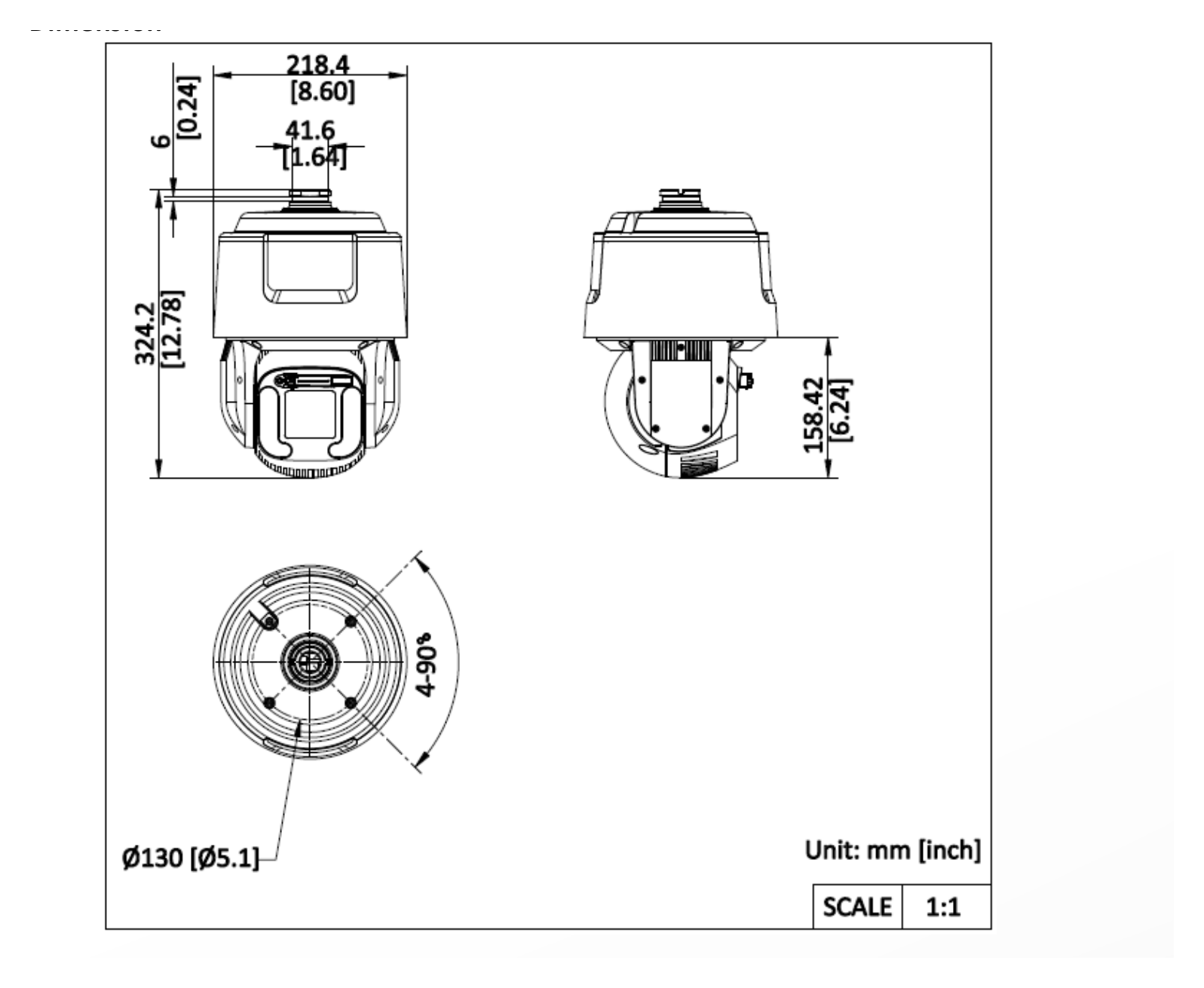

| 尺寸 | Ø 218.4 mm × 324.2 mm (Ø 8.6" × 12.76") |
| 重量 | Approx. 4.2 kg (9.26 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian CE-RED: EN 301489-1 V2. |
| Environment | WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP66 (IEC 60529-2013), 6000V Lightning Protection, Surge Protection and Voltage Protection Transient Protection |
| DORI 偵測距離 | Detect Observe Recognize Identify |
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
| Distance (Tele) | 2648.3 m (8688.7 ft.) 1050.9 m (3447.8 ft.) 529.7 m (1737.9 ft.) 264.8 m (868.8 ft.) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
Ø 218.4 mm × 324.2 mm (Ø 8.6" × 12.76")｜重量 Approx. 4.2 kg (9.26 lb.) 33 languages: English, Russian, Estonian, Bulgarian
DS-2DF7C432MXG1-WRP Hikvision 4MP 32X Realtime Low Consumption 4G Darkfighter Traffic Network Speed Dome亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2DF7C432MXG1-WRP 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2DF7C432MXG1-WRP 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-2DF7C432MXG1-WRP Hikvision 4MP 32X Realtime Low Consumption 4G Darkfighter Traffic Network Speed Dome供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：上水CCTV 閉路電視安裝、中環CCTV 閉路電視安裝、九龍城CCTV 閉路電視安裝、九龍灣CCTV 閉路電視安裝、佐敦CCTV 閉路電視安裝、元朗CCTV 閉路電視安裝、北角CCTV 閉路電視安裝、土瓜灣CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-2DF7C432MXG1-WRP 香港價格連安裝報價。
DS-2DF7C432MXG1-WRP Hikvision 4MP 32X Realtime Low Consumption 4G Darkfighter Traffic Network Speed Dome適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
