| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 4020 m (13189 ft) 1595.2 m (5233.6 ft) 804 m (2637.8 ft) 402 m (1318.9 ft) |
|---|
| 影像感測器 | 1/1.8" progressive scan CMOS |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.0005 Lux @ (F1.5, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/3 s to 1/30,000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | IR cut filter |
|---|
| HLC | Yes |
|---|
| 變焦 | 45 × optical, 16 × digital |
|---|
| 最大解像度 | 2560 × 1440 Horizontal field of view: 60.2° to 1.7° |
|---|
| 視場角 FOV | Vertical field of view: 35.2° to 1° Diagonal field of view: 67.4° to 1.8° |
|---|
| 對焦 | Auto, semi-auto, manual, rapid focus |
|---|
| 變焦速度 | Approx. 8.5 s |
|---|
| 焦距 | 5.9 to 265.5 mm |
|---|
| 光圈 | Max. F1.5 |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 300 m |
|---|
| 水平旋轉 | 360° |
|---|
| 垂直旋轉 | -15° to 90° (auto flip) |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|---|
| 比例變倍 | Yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
|---|
| 斷電記憶 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, Park Action panorama scan 3D Positioning Yes |
|---|
| PTZ 狀態顯示 | Yes |
|---|
| 預置位凍結 | Yes panorama scan, dome reboot, dome adjust, aux output 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (1920 × 1080, 12 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16384 Kbps |
|---|
| H.264 類型 | Baseline profile, main profile, high profile |
|---|
| H.265 類型 | Main profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), ANR IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|---|
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X |
|---|
| 安全 | authentication, watermark, IP address filter, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
|---|
| 客戶端 | iVMS-4200, HikCentral, Hik-Connect |
|---|
| 瀏覽器 | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | EIS (Built-in gyroscope to improve EIS performance) |
|---|
| Regional Exposure | Yes |
|---|
| Regional Focus | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 圖像參數切換 | Yes |
|---|
| 隱私遮蔽 | 24 programmable polygon privacy masks, mask color or mosaic configurable |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
|---|
| 警報 | 7 inputs, 2 outputs 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 基本事件 | Motion detection, video tampering alarm, exception, alarm input and output Line crossing detection, intrusion detection, region entrance detection, region exiting |
|---|
| 智能事件 | detection, unattended baggage detection, object removal detection, audio exception detection |
|---|
| Smart Tracking | Manual tracking, auto-tracking Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm Alarm Linkage output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) Detects up to 15 faces simultaneously. |
|---|
| 人臉抓拍 | Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture 24 VAC, 3.0 A, 50/60 Hz & Hi-PoE, 42.5 to 57 VDC, 1.41 A Power (Max. 40 W, includes max. 16 W for IR and max. 10 W for heater) |
|---|
| 一般功能 | Mirror, password protection |
|---|
| 工作環境 | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
|---|

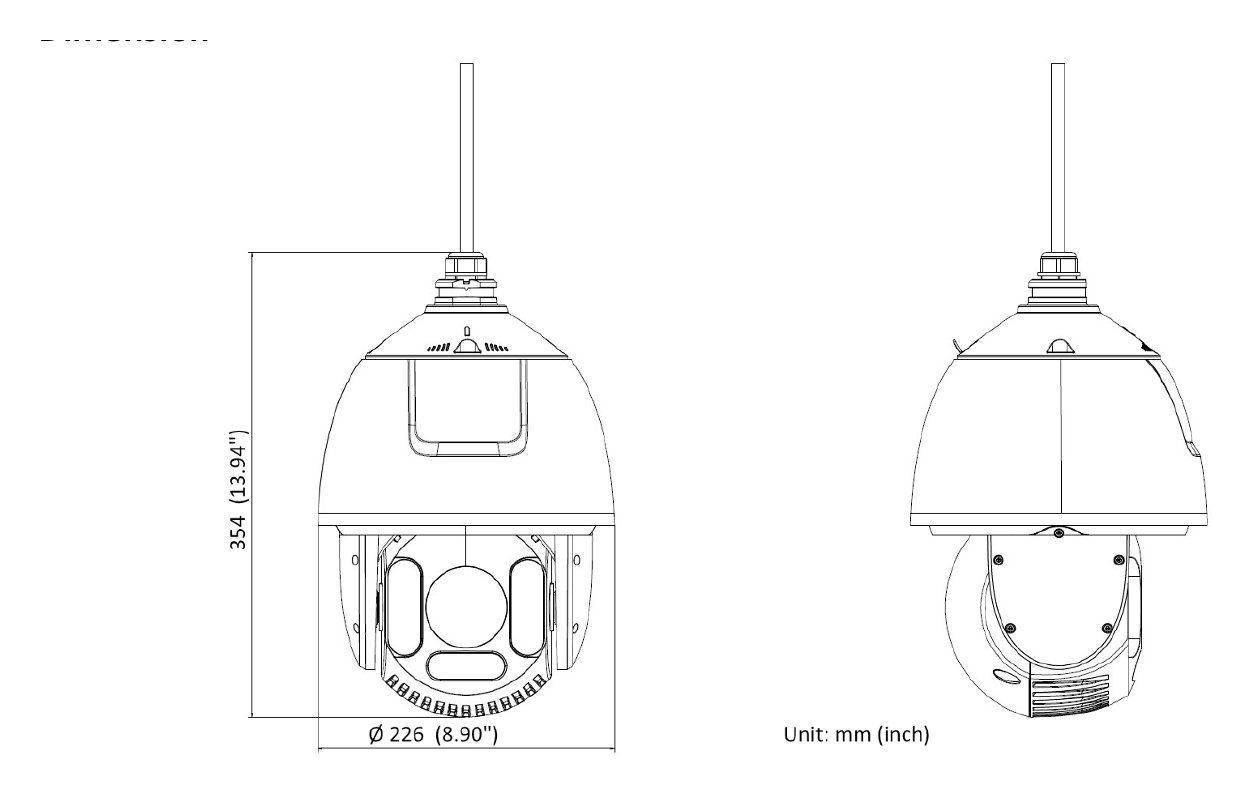

| 尺寸 | Ø 226 mm × 354 mm (Ø 8.90" × 13.94") |
|---|
| 重量 | Approx. 5.0 kg (11.02 lb.) FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); |
|---|
| Safety | CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage Protection transient protection |
|---|
