| 最大解像度 | 9024 × 2656 [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, |
|---|
| 最低照度 | AGC ON), [PTZ channel] Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON) |
|---|
| 快門速度 | 1 s to 1/30000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 變焦 | [PTZ channel] 20 × optical, 16 × digital |
|---|
| 慢快門 | Yes [Panoramic channel] 2 mm, [PTZ channel] 12 to 240 mm [Panoramic channel] Horizontal field of view：270°, vertical field of view: 110° |
|---|
| 視場角 FOV | [PTZ channel] Horizontal field of view: 30.0° to 1.96°, vertical field of view: 17.4° to 1.12°, diagonal field of view: 33.9° to 2.24° |
|---|
| 對焦 | Auto, semi-auto, manual, rapid focus [Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.0 |
|---|
| 變焦速度 | [PTZ channel] Approx. 5.6 s |
|---|
| 補光類型 | Hybrid IR distance: up to 250 m, White light distance: up to 50 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | 360° |
|---|
| 垂直旋轉 | -15° to 90° (Auto flip) |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 210°/s, preset speed: 240°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s |
|---|
| 比例變倍 | [Panoramic channel]: no; [PTZ channel]: yes |
|---|
| 預置位 | 300 |
|---|
| 預置位凍結 | Yes |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
|---|
| PTZ 狀態顯示 | Yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
|---|
| 斷電記憶 | Yes [Panoramic channel] 50 Hz: 25 fps (9024 × 2656, 8160 × 2400, 5760 × 1696, 3840 × 1080) 60 Hz: 24 fps (9024 × 2656, 8160 × 2400, 5760 × 1696, 3840 × 1080) [PTZ channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) [Panoramic channel] 50 Hz: 25 fps (2048 × 600, 1280 × 376), 60 Hz: 30 fps (2048 × 600, 1280 × 37 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
|---|
| 音訊壓縮 | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC: 16 kHz, 32 kHz, 48 kHz IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | ONVIF (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator, and user Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS), ANR |
|---|
| 客戶端 | iVMS-4200, HikCentral Pro, Hik-Connect |
|---|
| 瀏覽器 | IE10-11, Chrome 57+, Firefox 52+, Safari 12+ |
|---|
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day, night, auto, scheduled-switch |
|---|
| 寬動態 WDR | [Panoramic channel] no, [PTZ channel] 120 dB |
|---|
| 信噪比 SNR | ≥ 55 dB |
|---|
| 除霧 | [Panoramic channel]: no; [PTZ channel]: optical defog |
|---|
| 防抖 | EIS (Built-in gyroscope to improve EIS performance) |
|---|
| 影像增強 | BLC, HLC, 3D DNR Privacy Mask mask color or mosaic configurable |
|---|
| Regional Focus | Yes |
|---|
| Regional Exposure | Yes |
|---|
| 網絡接口 | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
|---|
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10% |
|---|
| 警報 | 7 alarm inputs, 2 alarm outputs |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設 | Yes 1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single Fiber Optical module fiber, up to 20 km transmission distance Line crossing detection, region entrance detection, region exiting detection, Smart Event unattended baggage detection, object removal detection, intrusion detection |
|---|
| Smart Tracking | Manual tracking,auto-tracking |
|---|
| Smart Linkage | Manual tracking, auto tracking, tracking takeover, linked tracking capture Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures, Face Capture Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
|---|
| People Density | Supports detecting the level of people density in the configured area 36 VDC± 20%, max. 90 W (Max. 60 W, including max. 4.8 W for IR and max. 16 W for |
|---|
| 供電 | heater) PoE 802.3bt, type4, class8, max. 90 W (Max. 60 W, including max. 4.8 W for IR and max. 16 W for heater) |
|---|

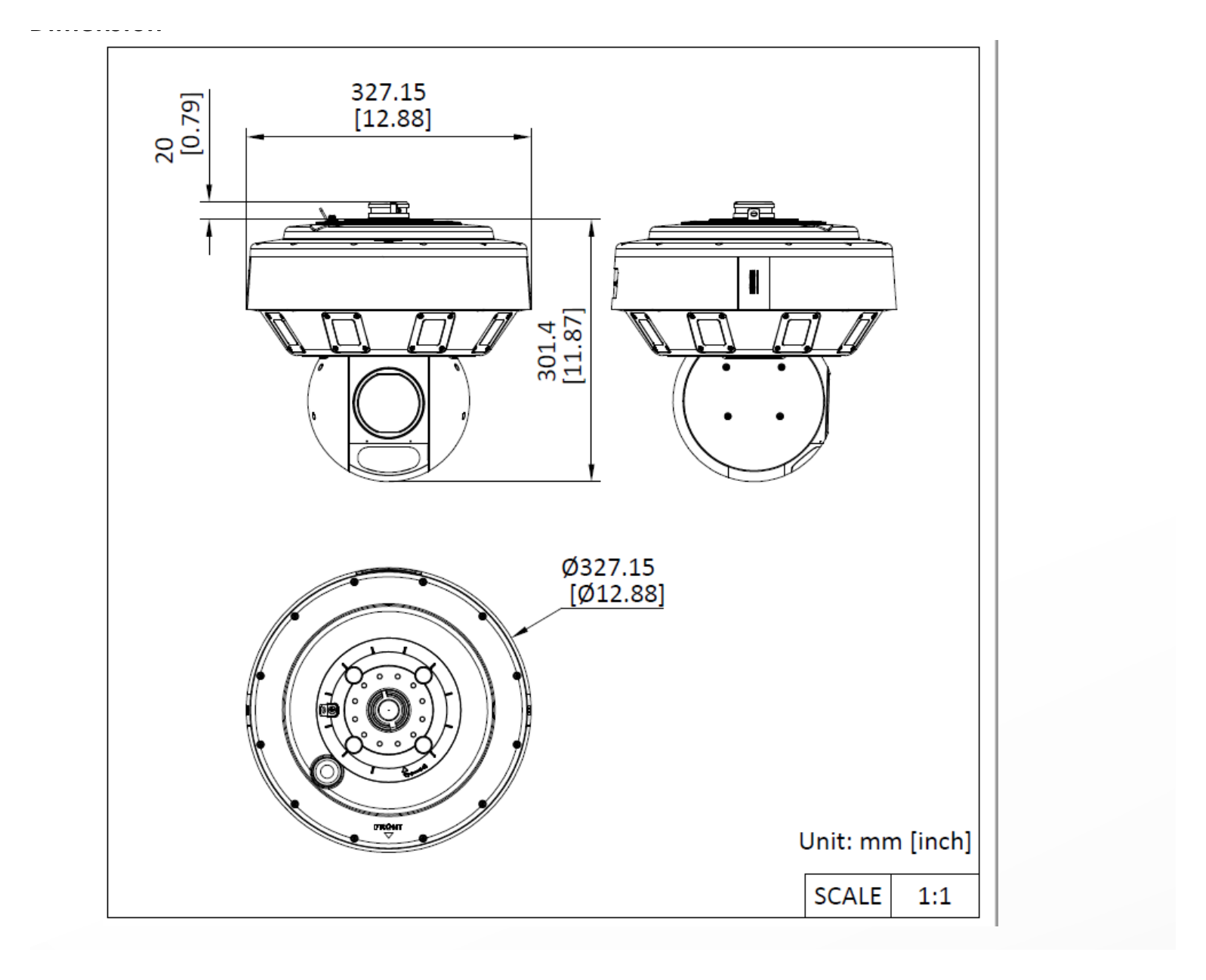

| 尺寸 | Ø 327.15 mm × 310.4 mm (Ø 12.88" × 12.22") |
|---|
| 重量 | 7.9 kg (17.42 lb.) |
|---|
| 材質 | ADC12 |
|---|
| 工作環境 | -40°C to 70°C (-40°F to 158 °F). Humidity 90% or less (non-condensing) |
|---|
| Wiper | No |
|---|
| Safety | CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017) CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
| 防護等級 | IP66 (IEC 60529-2013) |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m 38.6 m (126.6 ft.) 15.3 m (50.2 ft.) 7.7 m (25.3 ft.) 3.9 m (12.8 ft.) 4137.9 m (13575.8 ft.) 1642.0 m (5387.1 ft.) 827.6 m (2715.2 ft.) 413.8 m (1357.6 ft.) |
|---|
