| 最大解像度 | [Panoramic channel] 2688 × 1520, [PTZ channel] 2688 × 1520 Color: 0.0005 Lux @ (F1.0, AGC ON), |
|---|
| 最低照度 | [PTZ channel] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 lux with IR |
|---|
| 快門速度 | 1/30 s to 1/30000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| 變焦 | 36 × optical,16 × digital |
|---|
| 慢快門 | Yes |
|---|
| 焦距 | [Panoramic channel] 2.8 mm, [PTZ channel] 6-216 mm [Panoramic channel] horizontal field of view: 106.3°, vertical field of view: 56.2°, diagonal field of view: 131.3°, [PTZ channel] horizontal field of view: 59° to 2°, vertical field of view: 34.2° to 1.1°, diagonal field of view: 67.1° to 2.3° |
|---|
| 對焦 | Auto,semi-auto,manual |
|---|
| 光圈 | [Panoramic channel] Max. F1.0, [PTZ channel] Max. F1.36 |
|---|
| 變焦速度 | Approx. 4.8 s |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | 300 m |
|---|
| 水平旋轉 | [PTZ channel] 0° to 360°,[Panoramic channel] 0°to 175° |
|---|
| 垂直旋轉 | [Panoramic channel] 9°to 65°, [PTZ channel] -20° to 90° |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 700°/s, preset speed: 700°/s |
|---|
| Movement Range (Rotate) | [Panoramic channel] -90°to 90° |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 500°/s, preset speed 500°/s |
|---|
| 比例變倍 | [Panoramic channel] No, [PTZ channel] Yes |
|---|
| 預置位 | 300 |
|---|
| 預置位凍結 | Yes |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
|---|
| PTZ 狀態顯示 | Yes Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
|---|
| 斷電記憶 | Yes 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel] Channel 1: 50 Hz: 50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720) [Panoramic channel] Channel 2,3,4,5: 50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 9 |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline profile,Main profile,High profile |
|---|
| H.265 類型 | Main profile |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711,G.722.1,G.726,MP2L2,PCM |
|---|
| 音訊碼率 | 32 to 192 Kbps (MP2L2) |
|---|
| 音訊取樣率 | MP2L2: 16 to 48 kHz,PCM: 8 to 48 kHz |
|---|
| 環境噪音過濾 | Yes IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,T CP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | ONVIF (Profile S, Profile G, Profile T),ONVIF (Profile M),ISAPI,SDK,ISUP,EZVIZ |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator, and user Password protection,complicated password,IP address filter,HTTPS encryption,802.1X |
|---|
| 安全 | authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200,HikCentral Pro,Hik-Connect |
|---|
| 瀏覽器 | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
|---|
| 圖像參數切換 | Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 日夜模式 | Day,night,auto,schedule |
|---|
| 寬動態 WDR | [Panoramic channel] 120 dB, [PTZ channel] 150 dB |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | EIS (Built-in gyroscope to improve EIS performance) |
|---|
| 影像增強 | HLC,3D DNR |
|---|
| 隱私遮蔽 | mask color or mosaic configurable,24 programmable polygon privacy masks |
|---|
| Regional Focus | Yes |
|---|
| Regional Exposure | Yes |
|---|
| Satellite Positioning | No |
|---|
| Gyroscope | Yes |
|---|
| Compass | No |
|---|
| 網絡接口 | 1 RJ45 10M/100M/1000MM self-adaptive Ethernet port Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1024 1 input (line in), two-core terminal, max. input amplitude: 3.3 vpp, input impedance: |
|---|
| Audio | 4.7 KΩ,1 output (line out), two-core terminal, max. output amplitude: 3.3 vpp, output impedance: 4.7K Ω |
|---|
| 警報 | 7 input(s), 2 output(s) |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設 | Yes 1 FC interface, built-in fiber module, 1000M, TX1310/RX1550 nm wavelength, single module fiber, up to 20 km transmission distance |
|---|
| 基本事件 | Motion detection,video tampering alarm,exception,alarm input and output Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture |
|---|
| Smart Tracking | Manual tracking,auto-tracking,panorama tracking |
|---|
| Smart Linkage | 3D positioning, manual tracking, auto tracking, linked tracking capture |
|---|
| Multi-Target-Type Detection | [PTZ channel] Supports simultaneous detection and capture of human body and face Line crossing detection;intrusion detection;region entrance detection;region exiting detection |
|---|
| 供電 | 36 VDC ± 20%%, max. 105 W,including max. 12 W for IR,PoE(802.3bt) 42.5 -57V| 2.12A |
|---|

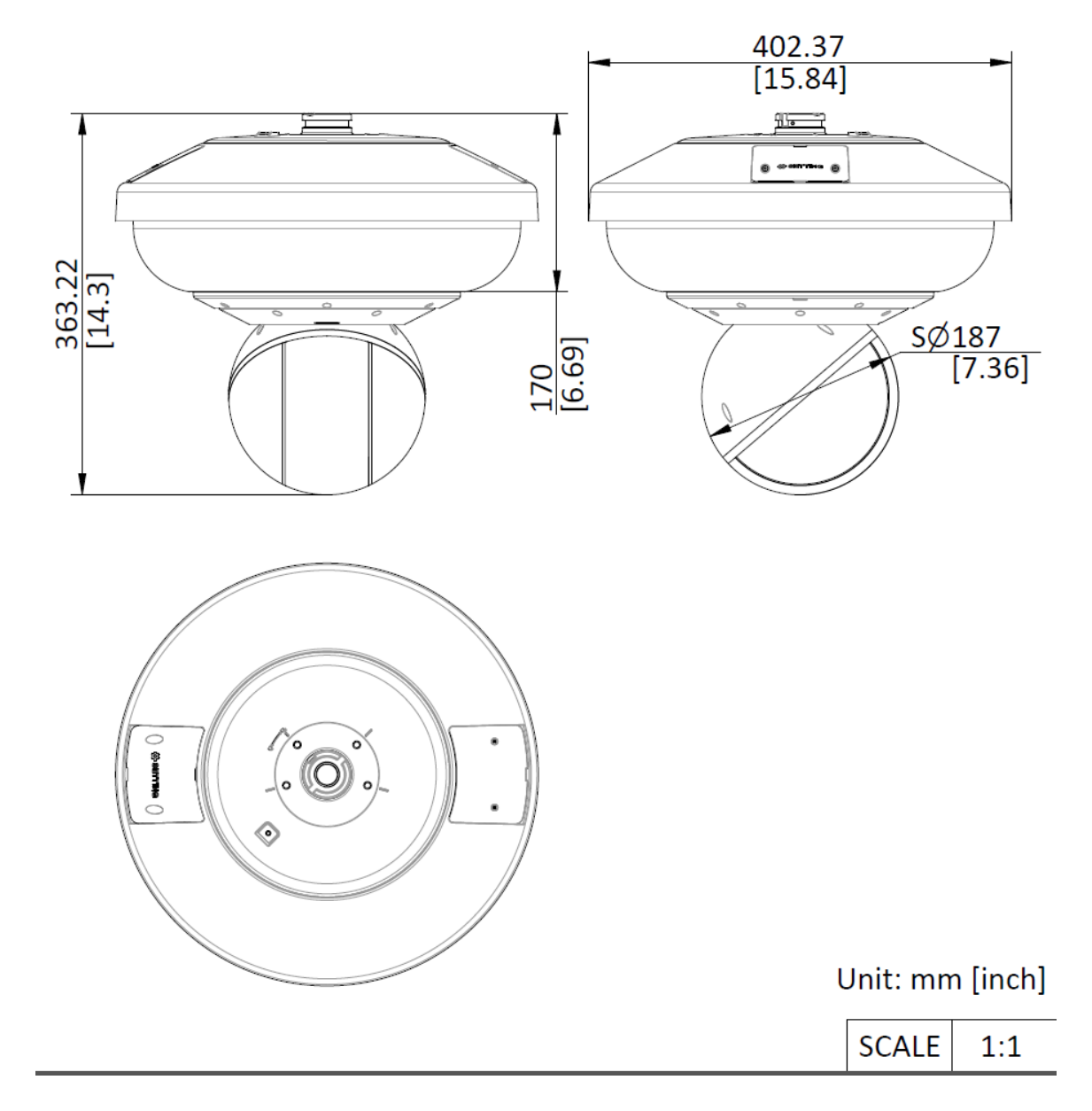

| 尺寸 | Ø 402.37 mm × 363.22 mm (Ø 15.84" × 14.3") |
|---|
| 重量 | Weight Approx. 9.67 kg (21.32 lb.) With Package Weight Approx. 12.69 kg (27.98 lb.) |
|---|
| 材質 | ADC12 -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: - 30 °C to 55°C (-22°F to 122°F) |
|---|
| 一般功能 | mirror,password protection |
|---|
| Wiper | No |
|---|
| Safety | CE-LVD (EN 62368-1: 2014/A11: 2017) |
|---|
| Environment | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage Protection transient protection |
|---|
| Anti-Corrosion Protection | NO |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m [PTZ channel] 2979.3 m (9774.61 ft.) 1182.3 m (3878.94 ft.) 595.9 m (1955.05 ft.) 297.9 m (977.36 ft.) Distance (Tele) [Panoramic channel] 38.6 m (126.64 ft.) 15.3 m (50.20 ft.) 7.7 m (25.26 ft.) 3.9 m (12.80 ft.) Distance |
|---|
