Hikvision DS-2DV6C425MXG-ELW 為Vibration Resistant 6C Series 4MP 25X Darkfighter Network Speed Dome，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2DV6C425MXG-ELW 香港價格連安裝報價。
| 影像感測器 | 1/1.8 ＂ progressive scan CMOS |
|---|---|
| 最大解像度 | 2688 × 1520 |
| 最低照度 | Color: 0.0005 Lux @ (F1.5, AGC ON),B/W: 0.0001 Lux @ (F1.5, AGC ON),0 Lux with IR |
| 快門速度 | 1/30 s to 1/30,000 s |
| 日夜切換 | ICR |
| 變焦 | 25 × optical,16 × digital |
| 慢快門 | yes |
| 焦距 | 5.9mm to 147.5 mm Horizontal field of view: 57.6° to 3.3°, vertical field of view: 32.3° to 1.8°, diagonal field of view: 67.1° to 2.3° |
| 對焦 | Auto,semi-auto,manual,rapid focus |
| 光圈 | F1.5 |
| 變焦速度 | Approx. 4.8 s |
| 補光距離 | IR distance: up to 200 m,White light distance: up to 50 m |
| 水平旋轉 | 360° |
| 垂直旋轉 | -20° to 90° (auto flip) |
| 水平速度 | Pan speed: configurable from 0.1° to 210°/s, preset speed: 210°/s |
| 垂直速度 | Tilt speed: configurable from 0.1° to 150°/s, preset speed 150°/s |
| 比例變倍 | yes |
| 預置位 | 300 |
| 預置位凍結 | yes |
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
| 守望動作 | Preset,patrol scan |
| PTZ 狀態顯示 | yes |
| 定時任務 | Preset,patrol scan,dome reboot,dome adjust,aux output |
| 斷電記憶 | yes 50 Hz: up to 75 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| 主碼流 | 60 Hz: up to 90 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under monitoring mode only. 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 3 52 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 35 |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| 視頻碼率 | 32 Kbps to 16384 Kbps |
| H.264 類型 | baseline profile||main profile||high profile |
| H.265 類型 | main profile |
| SVC 分級編碼 | yes |
| 感興趣區域 ROI | fixed region |
| 音訊壓縮 | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)16 Kbps to 64 Kbps(AAC-LC) IPv4/IPv6,HTTP,HTTPS,FTP,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP ,RTCP,RTP,TCP |
| 網絡協議 | /IP,UDP,IGMP,ICMP,DHCP,ISUP,Bonjour,WebSocket,WebSockets,SSL/TLS,ARP,SRTP,SF |
| 同時取流 | Up to 20 channels |
| API | ONVIF (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP |
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User Password protection,complicated password,HTTPS encryption,water mark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication |
| 安全 | for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2) |
| 網絡儲存 | NAS (NFS, SMB/CIFS) |
| 客戶端 | iVMS-4200,Hik-Connect,HikCentral Pro |
| 瀏覽器 | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ Up to 4 models, |
| Model Specification | Model type: detection model, classification model, mixed model (detection model and classification model) |
| 日夜模式 | day, night, auto, scheduled-switch |
| 信噪比 SNR | ≥52dB |
| 寬動態 WDR | 150 dB |
| 除霧 | Optical defog |
| 防抖 | EIS (Built-in gyroscope to improve EIS performance) |
| 影像增強 | BLC, HLC, 3D DNR |
| 隱私遮蔽 | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | yes |
| Regional Exposure | yes |
| 網絡接口 | RJ45, self-adaptive 10M/100M Ethernet port 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| 警報 | 7 alarm inputs, 2 alarm outputs |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 TB . Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof Basic Event alam,audio exception detection,unattended baggage detection, object removal detection Upload to |
| Smart Tracking | Manual tracking, auto-tracking 3.0 Support person arming. When the device detects the armed face or human body in the |
| Object Tracking | monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. 36 VDC± 25%, max. 60 W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater) Power PoE 802.3bt, type4, class7, max. 60W (Max. 36 W, including max. 6.4 W for IR and max. 8 W for heater) |
| 尺寸 | Ø 214.9 mm × 288.3 mm (Ø 8.5" × 11.3") |
| 重量 | Approx. 6.1 kg (13.45 lb.) |
| 工作環境 | Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% |
| 一般功能 | mirror, password protection, watermark, IP address filter 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), U |
| Heater | Yes |
| Wiper | Yes CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014) |
| Safety | CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| 防護等級 | IP67 (IEC 60529-2013) |
| DORI 偵測距離 | Detect Observe Recognize Identify |
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
| Distance (Tele) | 2034.5 m (6674.87 ft) 807.3 m (2648.62 ft) 406.9 m (1334.97 ft) 203.4 m (667.32 ft) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

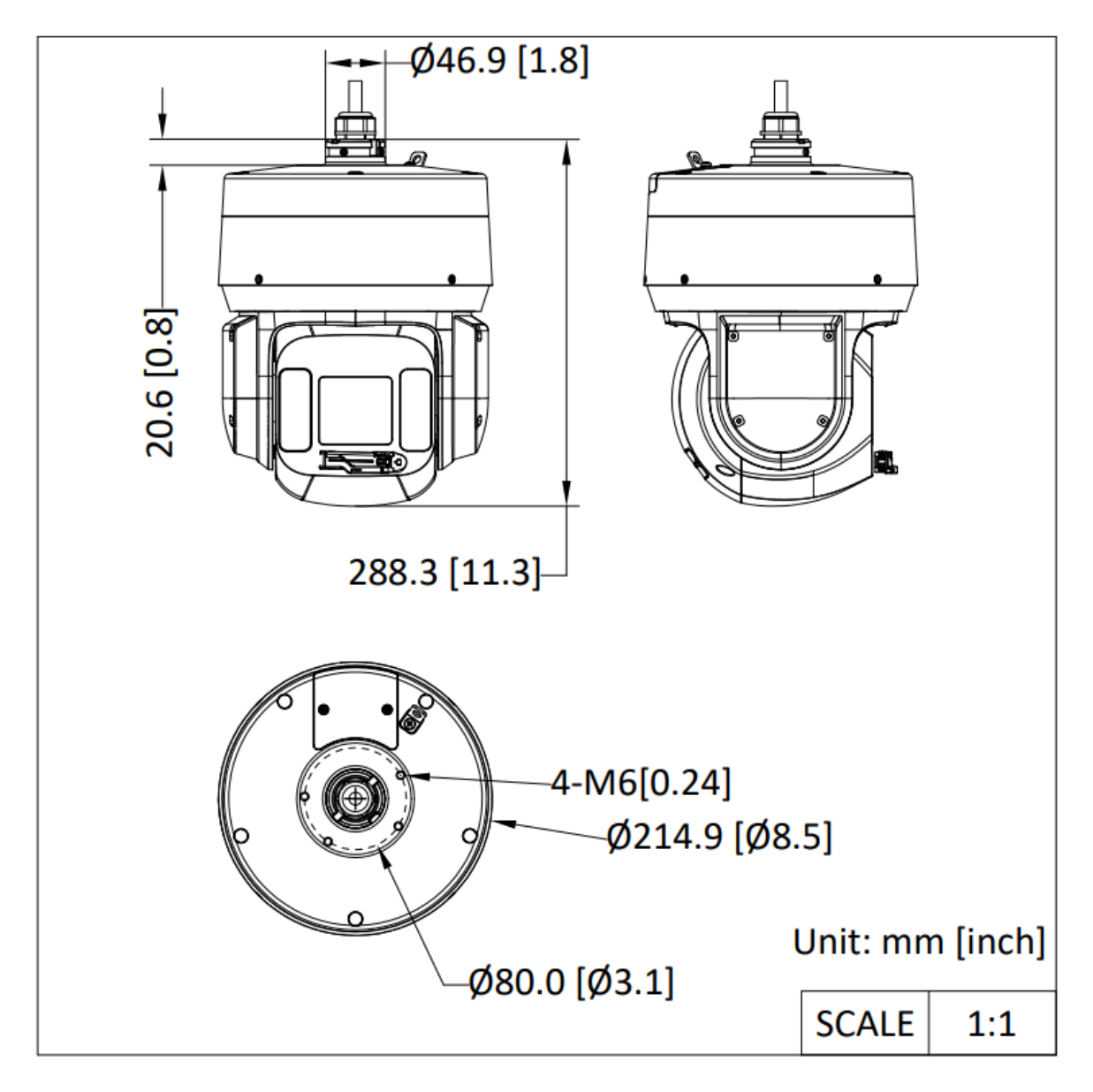

Ø 214.9 mm × 288.3 mm (Ø 8.5" × 11.3")｜重量 Approx. 6.1 kg (13.45 lb.)｜Unit: mm
DS-2DV6C425MXG-ELW Hikvision Vibration Resistant 6C Series 4MP 25X Darkfighter Network Speed Dome亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2DV6C425MXG-ELW 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，DS-2DV6C425MXG-ELW 係 Approx. 6.1 kg (13.45 lb.)，DS-D4039CD-1F 係 5.6 kg (12.35 lb)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-D4039CD-1F 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2DV6C425MXG-ELW 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
