| 最大解像度 | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; |
|---|
| 最低照度 | [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1 s to 1/30,000 s |
|---|
| 日夜切換 | ICR |
|---|
| 變焦 | [PTZ channel] 15 × optical, 16 × digital |
|---|
| 慢快門 | yes |
|---|
| 焦距 | [Bullet channel]: 2.8 mm; [PTZ channel]: 5 to 75 mm, 15 × optical [Bullet channel] horizontal field of view: 96.1°, vertical field of view: 52.1°, diagonal |
|---|
| 視場角 FOV | field of view: 113.3°, [PTZ channel] horizontal field of view: 55° to 4°, vertical field of view: 33° to 2.2°, diagonal field of view: 61.5° to 4.6° |
|---|
| 對焦 | auto,manual,semi-auto |
|---|
| 光圈 | [Bullet channel]: F1.0; [PTZ channel]: F1.6 |
|---|
| 變焦速度 | [PTZ channel]: approx. 2.3 s |
|---|
| 補光類型 | [PTZ channel]: IR; [Bullet channel]: White Light |
|---|
| 補光距離 | [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | 360° endless |
|---|
| 垂直旋轉 | [Bullet channel] 9° to 21° (manually adjust), [PTZ channel] -15° to 90° |
|---|
| 水平速度 | Pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
|---|
| 比例變倍 | yes |
|---|
| 預置位 | 300 |
|---|
| 預置位凍結 | yes |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans preset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan |
|---|
| PTZ 狀態顯示 | yes Preset,pattern scan,patrol scan,tilt scan,auto scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output |
|---|
| 斷電記憶 | yes [Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ ch |
|---|
| 視頻壓縮 | H.265,H.264,MJPEG |
|---|
| 視頻碼率 | 32 kbps to 16384 kbps |
|---|
| H.264 類型 | main profile,baseline profile,high profile |
|---|
| H.265 類型 | main profile |
|---|
| SVC 分級編碼 | yes |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) MP2L2: 16 kHz, 32kHz, 48 kHz,AAC-LC: 16 kHz, 32kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32kHz, 48 kHz,MP3: 8 kHz, 16 kHz, 32kHz, 48 kHz |
|---|
| 環境噪音過濾 | yes DHCP,FTP,HTTPS,TCP/IP,ICMP,HTTP,SFTP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP, SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets |
|---|
| 同時取流 | 20 |
|---|
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
|---|
| 用戶管理 | 32 802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200,HikCentral Pro,Hik-Connect |
|---|
| 瀏覽器 | IE 11, Chrome 80+, Firefox 80+, Safari 13+ |
|---|
| 圖像參數切換 | Yes |
|---|
| 圖像設定 | sharpness,saturation,brightness,contrast |
|---|
| 日夜模式 | day, night, auto, scheduled-switch |
|---|
| 寬動態 WDR | True WDR |
|---|
| 信噪比 SNR | ＞52dB |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | EIS |
|---|
| 影像增強 | BLC,HLC,3D DNR programmable polygon privacy masks; mask color or mosaic configurable |
|---|
| Regional Focus | yes |
|---|
| Regional Exposure | yes |
|---|
| 網絡接口 | RJ45, self-adaptive 10M/100M Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 |
|---|
| 警報 | 1 alarm input, 1 alarm output |
|---|
| 重設 | yes |
|---|
| 內置麥克風 | 2 built-in microphones,picking up sounds in the radius up to 8 m |
|---|
| Built-in Speaker | 1 built-in speaker, with effective distance reaching max. 20 m Motion detection,video tampering alarm,exception (network disconnected, IP address |
|---|
| 基本事件 | conflict, illegal login, HDD full, HDD error),alarm input and output,audio exception detection audio exception detection,region exiting detection,region entranc e detection,intrusion detection,Line crossing detection [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording,[PTZ channel] Upload to |
|---|
| 聯動方式 | FTP/NAS/memory card, notify survei llance center, send email, trigger alarm output, trigger recording, strobe light and audio alarm, and PTZ actions (such as preset, patrol scan, pattern scan) Detects up to 5 faces simultaneously, Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
|---|
| Regional People Counting | method. Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection |
|---|
| Smart Linkage | manual tracking, linked tracking capture，tracking in turn 12 VDC, 3.33 A PoE: IEEE 802.3at, 42.5 to 57.2 V, 0.6 A |
|---|

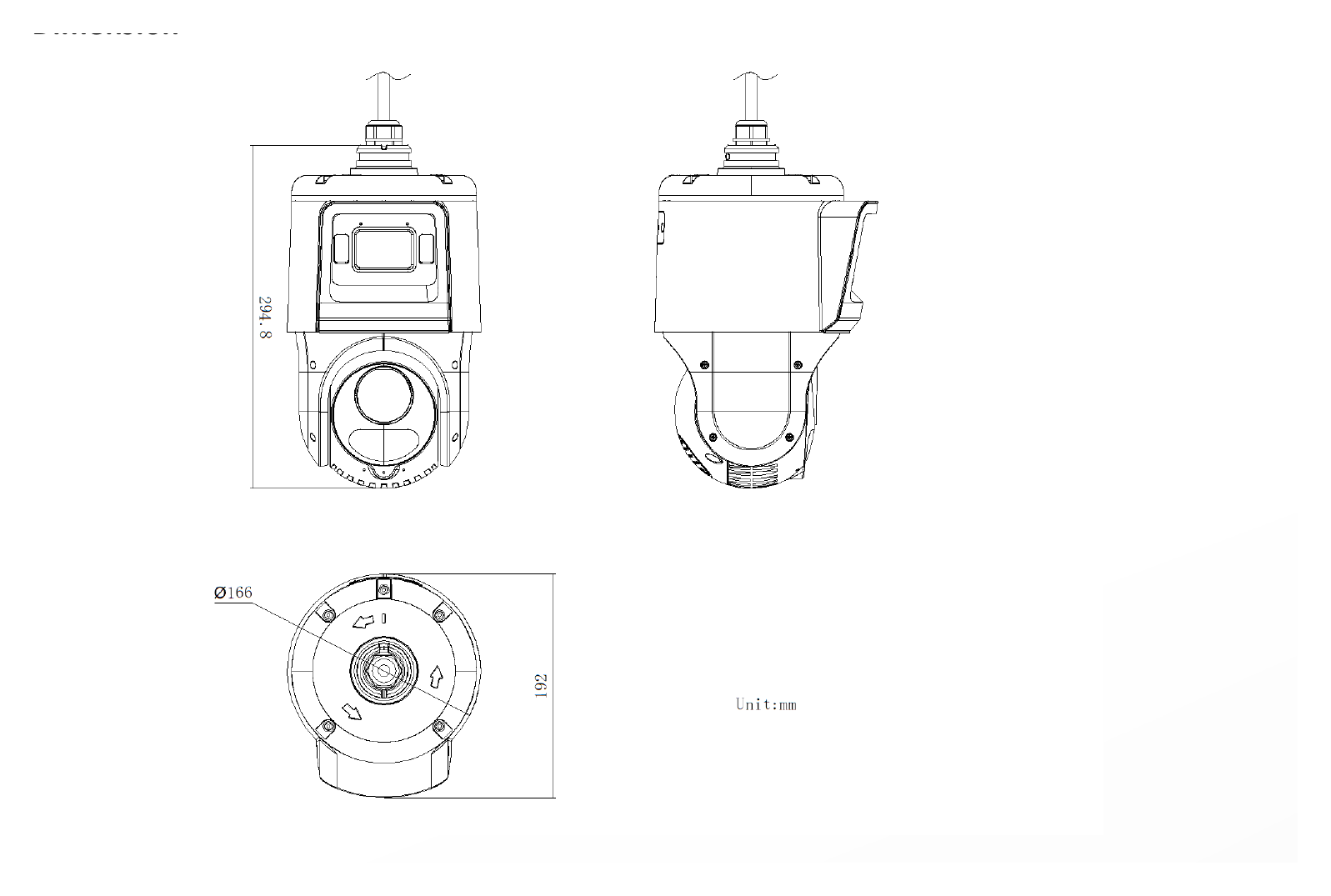

| 尺寸 | Ø 166 mm × 294.8 mm (Ø 6.5" × 11.6") |
|---|
| 重量 | Approx. 3.0 kg (16.5 lb.) |
|---|
| 材質 | ADC12 |
|---|
| 工作環境 | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | mirror, password protection, watermark, IP address filter |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m |
|---|
| Distance (Tele) | 960.0 m (3149.61 ft) 381.0 m (1250.0 ft) 192.0 m (629.92 ft) 96.0 m (314.96 ft) |
|---|
