| 快門速度 | 1/25 s to 1/30000 s |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | [Bullet channel] Color, [PTZ channel] IR cut filter |
|---|
| 變焦 | [PTZ channel] 25 × optical, 16 × digital |
|---|
| 最大解像度 | [Bullet channel] 3680 × 1656, [PTZ channel] 2688 × 1520 |
|---|
| 對焦 | Auto,semi-auto,manual |
|---|
| 變焦速度 | [Bullet channel] No, [PTZ channel] approx. 4.8 s |
|---|
| 焦距 | [Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 147.5 mm [Bullet channel] horizontal field of view: 190° ± 10°, vertical field of view: 80° ±10°, |
|---|
| 視場角 FOV | diagonal field of view: 198° ± 10°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6° |
|---|
| 光圈 | [Bullet channel] F1.0, [PTZ channel] F1.5 |
|---|
| 補光類型 | [Bullet channel] White Light and IR, [PTZ channel] IR [Bullet channel] White Light: up to 40 m, IR: up to 60 m [PTZ channel] IR: up to 400 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | [PTZ channel] 0° to 360° |
|---|
| 垂直旋轉 | [Bullet channel] 12° to 24°, [PTZ channel] -20° to 90° |
|---|
| 水平速度 | [PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s [Bullet channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|---|
| 比例變倍 | [Bullet channel] No, [PTZ channel] Yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
|---|
| 斷電記憶 | Yes Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
|---|
| PTZ 狀態顯示 | Yes |
|---|
| 預置位凍結 | Yes Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output [Bullet channel] 50 Hz: 25 fps (3632 ×1632 ，3680 ×1656), 60 Hz: 30 fps (3632 ×1632 ， 3680 ×1656),[PTZ channel] 50 Hz: 50 fps (2688 × 1520 ， 2560 × 1440 ， 1920 × 1080 ， 1280 × 960 ，1280 × 720), 60 Hz: 60 fps (2688*1520 ，2560 × 1440 ，1920 × 1080 ，1280 × 960 ， 1280 × 720) [B |
|---|
| 子碼流 | 576 ，640 × 480 ，352 × 288),[PTZ channel] 50 Hz: 25 fps (704 × 576 ，640 × 480 ，352 × 288), 60 Hz: 30 fps (704 × 576 ，640 × 480 ，352 × 288) [Bullet channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, |
|---|
| 第三碼流 | 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Main stream: H.265+/H.265/H.264+/H.264, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline profile,Main profile,High profile |
|---|
| H.265 類型 | Main profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711,MP2L2,AAC-LC,MP3,G.726,G.722.1,PCM 64 Kbps (G.711ulaw/G.711alaw),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC -LC),8 to 320 Kbps (MP3),16 Kbps (G.726),16 Kbps (G.722.1) |
|---|
| 音訊取樣率 | 8 kHz,16 kHz,32 kHz,48 kHz |
|---|
| 環境噪音過濾 | Yes ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP Password protection,complicated password,watermark,control timeout settings,security audit log,host authentication (MAC address),HTTPS encryption,IP |
|---|
| 安全 | address filter,TLS 1.3,basic and digest authentication for HTTP/HTTPS,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,TLS 1.2 |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,T CP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
|---|
| 同時取流 | Up to 20 channels |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator, and user |
|---|
| 客戶端 | iVMS-4200,HikCentral Pro,Hik-Connect Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ ； Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Model type for AI Open Platform trained algorithm loading: high-performance model (small model), enhanced high-performance model (hybrid small -large model), and |
|---|
| Model Specification | ultra-high-precision model (large model).↵ Supports 4 model packages, each capable of detecting 16 target types and classifying 1 target. The device runs up to 2 small models or 1 large model at the same time. Algorithm type for AI Open Platform high-performance model (small model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR, Segmentation, Image Comparison. Su |
|---|
| Task Type | classifications). Supports video real -time analysis. Algorithm type for AI Open Platform ultra -high-precision model (large model): Detection, Classification, Mixed (maximum: 1 detection + 7 classifications), OCR. Supports image scheduled analysis and I/O-triggered analysis. Supports algorithm orchestration for comparison. Supports importing user -defined orchestration packages (3 operator nodes, |
|---|
| Rule Setting | Up to 16 rules. Supports moving target filtering and shield region setting. |
|---|
| 日夜模式 | schedule,Day,auto,night |
|---|
| 影像增強 | 3D DNR,HLC,BLC,EIS |
|---|
| 寬動態 WDR | [Bullet channel] 120 dB, [PTZ channel] 150 dB |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | EIS (Built-in gyroscope to improve EIS performance) |
|---|
| Regional Exposure | Yes |
|---|
| Regional Focus | [Bullet channel] No, [PTZ channel] Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 圖像參數切換 | Yes [Bullet channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| Satellite Positioning | No |
|---|
| Gyroscope | Yes |
|---|
| Compass | No |
|---|
| 重設 | Yes |
|---|
| 網絡接口 | 1 RJ45 100M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1TB . |
|---|
| 警報 | 7 input(s), 2 output(s) 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras VCA range: [Bullet channel] up to 40m(nightt |
|---|
| 聯動方式 | actions (such as preset, patrol scan, pattern scan), [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording |
|---|
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures |
|---|
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc. Support vehicle and non-vehicle counting Blocklist and allowlist: up to 10,000 records LPR Countries/Regions: 4 areas (Europe, Middl |
|---|
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
|---|
| Smart Linkage | Manual tracking, auto tracking, tracking takeover, linked tracking capture Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring |
|---|
| 一般功能 | mirror,password protection |
|---|
| 工作環境 | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
|---|
| Wiper | No |
|---|
| 材質 | ADC12 |
|---|

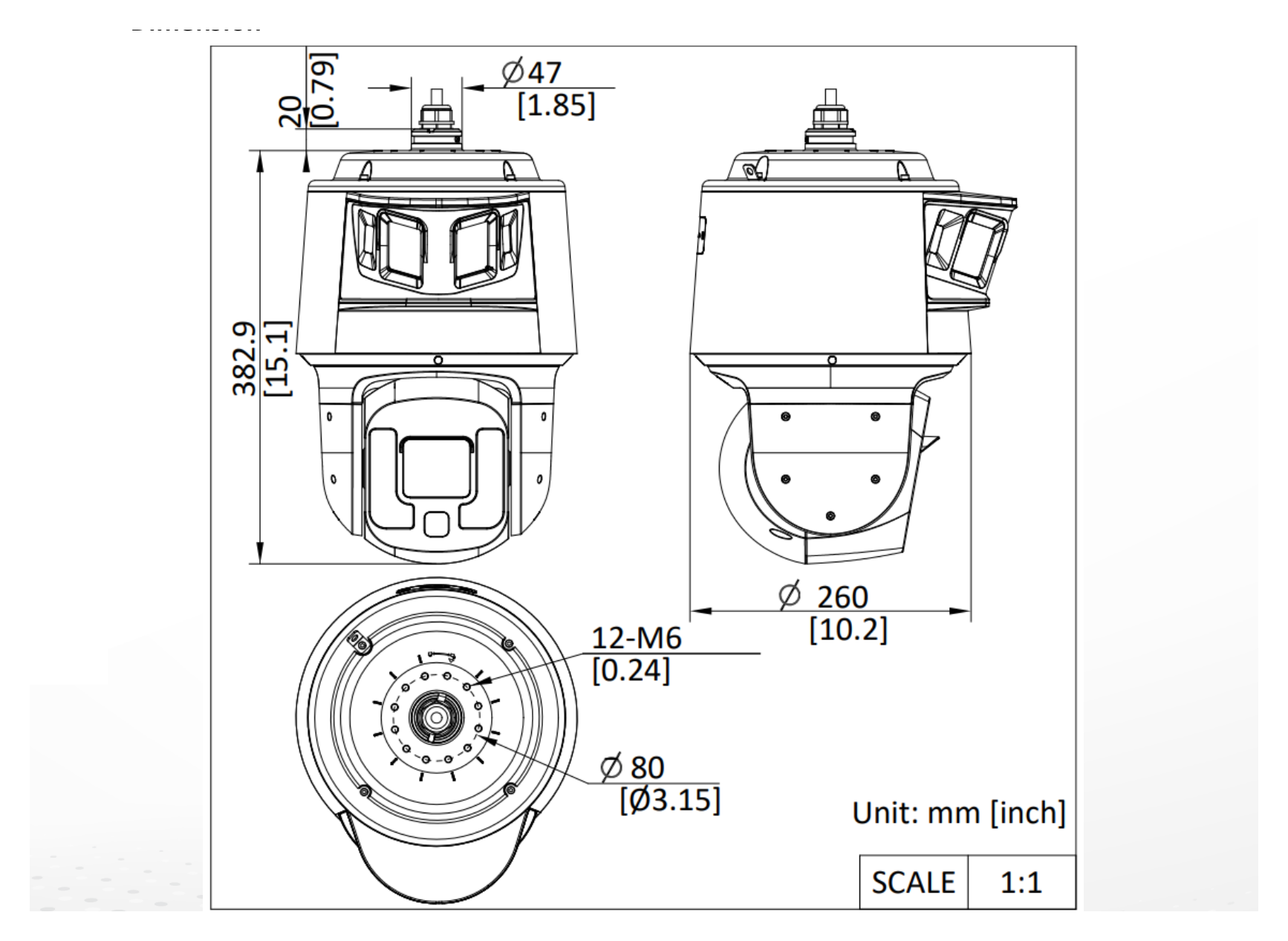

| 尺寸 | Ø 260 mm × 382.9 mm (Ø 10.24" × 15.07") |
|---|
| 重量 | Approx. 7.8 kg (17.196 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian CE-EMC (EN 50130-4:2011+A1:201 |
|---|
| Safety | CE-LVD (EN 62368-1:2014 + A11:2017),CB (IEC 62368-1:2014) |
|---|
| Environment | CE-RoHS (2011/65/EU and its amendment (EU)2015/863) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013),IK10 (IEC 62262:2002, excluding glass |
|---|
| 防護等級 | window),Lightning Protection,Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line |
|---|
| Anti-Corrosion Protection | Model with -Y: NEMA 4X (NEMA 250-2018), Model without -Y: No |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m 38.6m 15.3m 7.7m 3.9m 2034.5m 807.3m 406.9m 203.4m |
|---|
