| Working Frequency | 24.05 GHz to 24.25 GHz,24.00 GHz to 24.25 GHz |
|---|
| Detection Distance | Human: 500 m, vehicle: 500 m |
|---|
| Horizontal Detection Angle | Double beam: Narrow beam: 15° (0 m to 500 m) Wide beam: 50° (0 m to 100 m) |
|---|
| Vertical Detection Angle | 30° |
|---|
| Max. Detectable Targets | 128 |
|---|
| Distance Measurement Accuracy | 1m |
|---|
| Speed Measurement Accuracy | 0.06 m/s |
|---|
| Angle Measurement Accuracy | 0.8° Radar events including line crossing detection and intrusion detection. Detected target |
|---|
| Radar Event | is tracked and captured by PTZ camera channel. Video double checks radar detected targets to improve detection accuracy. |
|---|
| Data Fresh Rate | 10 Hz [Panorama 1] 1/1.8” progressive scan CMOS [Panorama 2] 1/1.8” progressive scan CMOS [Detail] 1/1.8” progressive scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 [Panorama 1] Color: 0.0005 Lux @ (F1.6, AGC ON) [Panorama 2] Color: 0.0005 Lux @ |
|---|
| 最低照度 | (F1.4, AGC ON), B/W: 0.0001 Lux @ (F1.4, AGC ON), 0 Lux with IR [Detail] Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/25 s to 1/30,000 s |
|---|
| 變焦 | 32 × optical,16 × digital |
|---|
| 慢快門 | yes |
|---|
| 焦距 | [Panoramic channel] 5 to 50 mm, [PTZ channel] 6 to 192 mm |
|---|
| 視場角 FOV | [Panorama 1] 58° [Panorama 2] 40° to 9° [Detail] 60.2° to 2.3° |
|---|
| 對焦 | Auto, semi-auto, manual |
|---|
| 光圈 | [Panorama 1] F1.6 [Panorama 2] F1.4 [Detail] F1.2 |
|---|
| 變焦速度 | [Panorama 1] No [Panorama 2] Approx. 1.8 s [Detail] Approx. 5.6 s |
|---|
| 補光類型 | Laser |
|---|
| 補光距離 | [Panorama] 200 m [Detail] 200 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | [Panorama] 0° to 270° [Detail] 0° to 360° |
|---|
| 垂直旋轉 | [Panorama] -11° to 11° [Detail] -20° to 90° [Panorama] Configurable from 0.1° to 10°/s [Detail] Configurable from 0.1° to 210°/s, preset speed: 250°/s [Panorama] Configurable from 0.1° to 20°/s [Detail] Configurable from 0.1° to 150°/s, preset speed: 90°/s |
|---|
| 比例變倍 | [Panorama] No [Detail] Yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan panorama scan |
|---|
| PTZ 狀態顯示 | yes Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
|---|
| 斷電記憶 | yes Panorama 1: 50 Hz: 25 fps(2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps(2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Panorama 2: |
|---|
| 主碼流 | 50 Hz: 25 fps(2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps(2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Detail: 50 Hz: 25 fps(2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps(2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Panorama 1: 50 Hz: 25 fps(704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps(704 × 480, |
|---|
| 子碼流 | 50 Hz: 25 fps(704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps(704 × 480, 640 × 480, 352 × 240) Detail: 50 Hz: 25 fps(704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps(704 × 480, 640 × 480, 352 × 240) Panorama 1: 50 Hz: 25 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Panorama 2: |
|---|
| 第三碼流 | 50 Hz: 25 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Detail: 50 Hz: 25 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Main stream: H.264+/H.265+/H.264/H.265, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| SVC 分級編碼 | yes |
|---|
| 感興趣區域 ROI | [Detail] Yes |
|---|
| 音訊壓縮 | G.711A, G.711U, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3 |
|---|
| 音訊碼率 | 16 to 64Kbps (AAC-LC),32 to 192 Kbps (MP2L2),8 to 320 Kbps (MP3) MP2L2: 16 KHz, 32 KHz, 48 KHz; AAC-LC: 16 KHz, 32 KHz, 48 KHz; PCM: 8 KHz, 16 KHz, 32 KHz, 48 KHz |
|---|
| 環境噪音過濾 | Yes SSL/TLS,HTTPS,QoS,IGMP,SMTP,ICMP,W ebSocket,W ebSockets,HTTP,RTSP,SFTP,RTCP, DNS,UDP,UPnP,SNMP,FTP,DHCP,NTP,DDNS,PPPoE,802.1X,RTP,TCP/IP,IPv6,IPv4 |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | API, ISAPI, SDK, ISUP, Hik-Connect |
|---|
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS) |
|---|
| 客戶端 | iVMS-4200,Hik-Connect,HikCentral Pro Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
|---|
| 日夜模式 | Day,night,auto,schedule |
|---|
| Satellite Positioning | Yes |
|---|
| Gyroscope | Yes |
|---|
| Compass | Yes |
|---|
| 網絡接口 | RJ45 1000 M Ethernet Interface, self-adaptive 1 audio input, 2.0 to 2.4 Vp-p, input impedance: 1 kΩ ± 10%; 1 audio output, line level, impedance: 600 Ω |
|---|
| 警報 | 7 alarm inputs, 2 alarm outputs |
|---|
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
|---|
| 機身儲存 | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB |
|---|
| 重設 | Yes 1 fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 155 Mbps transmission rate Motion detection,video tampering alarm,exception (network disconnected, IP address |
|---|
| 基本事件 | conflict, illegal login, HDD full, HDD error),audio exception detection,vandal -proof alam,alarm input Intrusion detection, line crossing detection, region entrance detection, region exiting detection 36 VDC, 4.17 A, max. 90 W [Panorama] heating 6 W, supplement light 6 W [Detail] heating 6 W, supplement light 12 W |
|---|

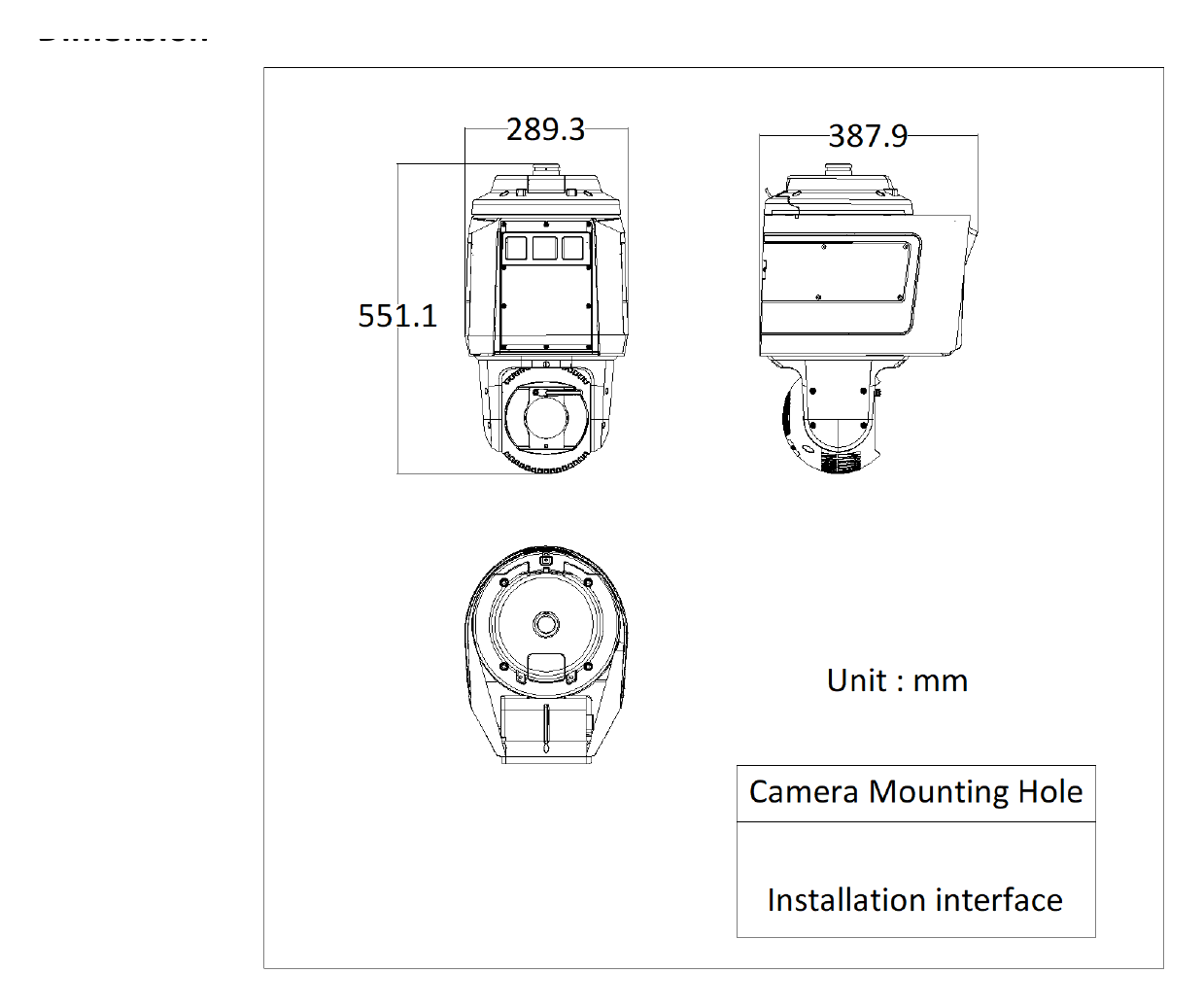

| 尺寸 | Ø 391 mm × 530 mm (15.39" × 20.87") |
|---|
| 重量 | Approx. 17 kg (37.48 lb.) |
|---|
| 工作環境 | Temperature: -40 °C to 70 °C (-40 °F to 158 °F), humidity: < 95% |
|---|
| Wiper | Yes |
|---|
| 除霧 | Yes |
|---|
| 防護等級 | IP67 |
|---|
