| 快門速度 | 1 s to 1/30000 s [Bullet channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light, [PTZ channel] Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 lux with light |
|---|
| 慢快門 | Yes |
|---|
| 日夜切換 | [Panoramic channel] Color, [PTZ channel] IR cut filter |
|---|
| 變焦 | [PTZ channel] 32 × optical, 16 × digital [Panoramic channel] 3680 × 1656, [PTZ channel] 2688 × 1520 [Panoramic channel] horizontal field of view: 190°± 5°°, vertical field of view: 80° ± 5°, |
|---|
| 視場角 FOV | [PTZ channel] horizontal field of view: 60.7° to 2.3°, vertical field of view: 35.9° to 1.3°, diagonal field of view: 68.4° to 2.7° |
|---|
| 變焦速度 | [Panoramic channel] No, [PTZ channel] approx. 3.6 s |
|---|
| 對焦 | Auto,semi-auto,manual |
|---|
| 焦距 | [Panoramic channel] 2.8 mm, [PTZ channel] 5.5 to 176 mm |
|---|
| 光圈 | [Panoramic channel] F1.0, [PTZ channel] F1.6 |
|---|
| 補光類型 | Hybrid(IR + White Light) [Panoramic channel] White Light Distance: up to 30 m, [PTZ channel] IR Distance: up to 150 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | 360° endless |
|---|
| 垂直旋轉 | [Panoramic channel] 12°to 24°, [PTZ channel] -10° to 90° |
|---|
| 水平速度 | [PTZ channel] pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s [PTZ channel] tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s,[Panoramic channel] tilt speed configurable |
|---|
| 比例變倍 | [Panoramic channel] No, [PTZ channel] Yes |
|---|
| 預置位 | 300 |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan |
|---|
| 斷電記憶 | Yes Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan |
|---|
| PTZ 狀態顯示 | Yes |
|---|
| 預置位凍結 | Yes Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output [Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656) 60 Hz: 30 fps (3632 × 1632, 3680 × 1656) [PTZ channel] 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline profile,Main profile,High profile |
|---|
| H.265 類型 | Main profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 8 fixed regions for each stream |
|---|
| 音訊壓縮 | G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3 32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.722.1),64 Kbps (G.711),16 Kbps (G.726) |
|---|
| 音訊取樣率 | 8 kHz,16 kHz,32 kHz,48 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| API | ONVIF (Profile S, Profile G, Profile T, Profile M),ISUP,ISAPI,SDK,OTAP |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),auto network replenishment (ANR) IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,T CP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP |
|---|
| 同時取流 | Up to 20 channels |
|---|
| 用戶管理 | Up to 32 users. 3 user levels: administrator, operator, and user Password protection,complicated password,IP address filter,HTTPS encryption,802.1X |
|---|
| 安全 | authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark, TPM 2.0 (FIPS 140-2 level 2) |
|---|
| 客戶端 | iVMS-4200,HikCentral Pro,Hik-Connect Plug-in required live view: IE8+ |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ |
|---|
| 寬動態 WDR | [Bullet channel] 120 dB, [PTZ channel] 140 dB |
|---|
| 日夜模式 | Day,night,auto,schedule [Panoramic channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
|---|
| 影像增強 | HLC,3D DNR |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | EIS (Built-in gyroscope to improve EIS performance) |
|---|
| Regional Exposure | Yes |
|---|
| Regional Focus | [Panoramic channel] No, [PTZ channel] Yes Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 圖像參數切換 | Yes |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| Satellite Positioning | No |
|---|
| Gyroscope | Yes |
|---|
| Compass | No |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
|---|
| 內置麥克風 | 1 built-in microphone |
|---|
| Built-in Speaker | 1 built-in speaker |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| 警報 | 2 input(s), 1 output(s) 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
|---|
| 重設 | Yes exception (network disconnected, IP address conflict, illegal login, HDD full, HDD |
|---|
| 基本事件 | error),audio exception detection,vandal -proof alam,alarm input,[PTZ channel] motion detection, video tampering alarm Line crossing detection,intrusion detection,region entrance detection,region exiting |
|---|
| 智能事件 | detection,unattended baggage detection,object removal detection,loitering detection,people gathering detection,fast moving detection,parking detection [Panoramic channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, |
|---|
| 聯動方式 | [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) [Panoramic channel]: no,[PTZ channel] Supports simultaneous detection and capture of human body, face and vehicle Smart functions: Support license plate recognition of vehicles and motorcycles (only in checkpoint s |
|---|
| Smart Tracking | [PTZ channel] Manual tracking, auto-tracking 3.0 |
|---|
| Smart Linkage | tracking takeover, linked tracking capture 12VDC± 15%, max. 60 W (Max. 40 W, including max. 7.2 W for light and max. 16 W for heater) PoE 802.3bt, type4, class8, max. 90W (Max. 40 W, including max. 7.2 W for light and max. 16 W for heater) |
|---|
| 材質 | PA*+50% glass fiber |
|---|
| Wiper | Model with -W: Yes, Model without -W: No |
|---|
| 一般功能 | mirror,password protection -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F) |
|---|

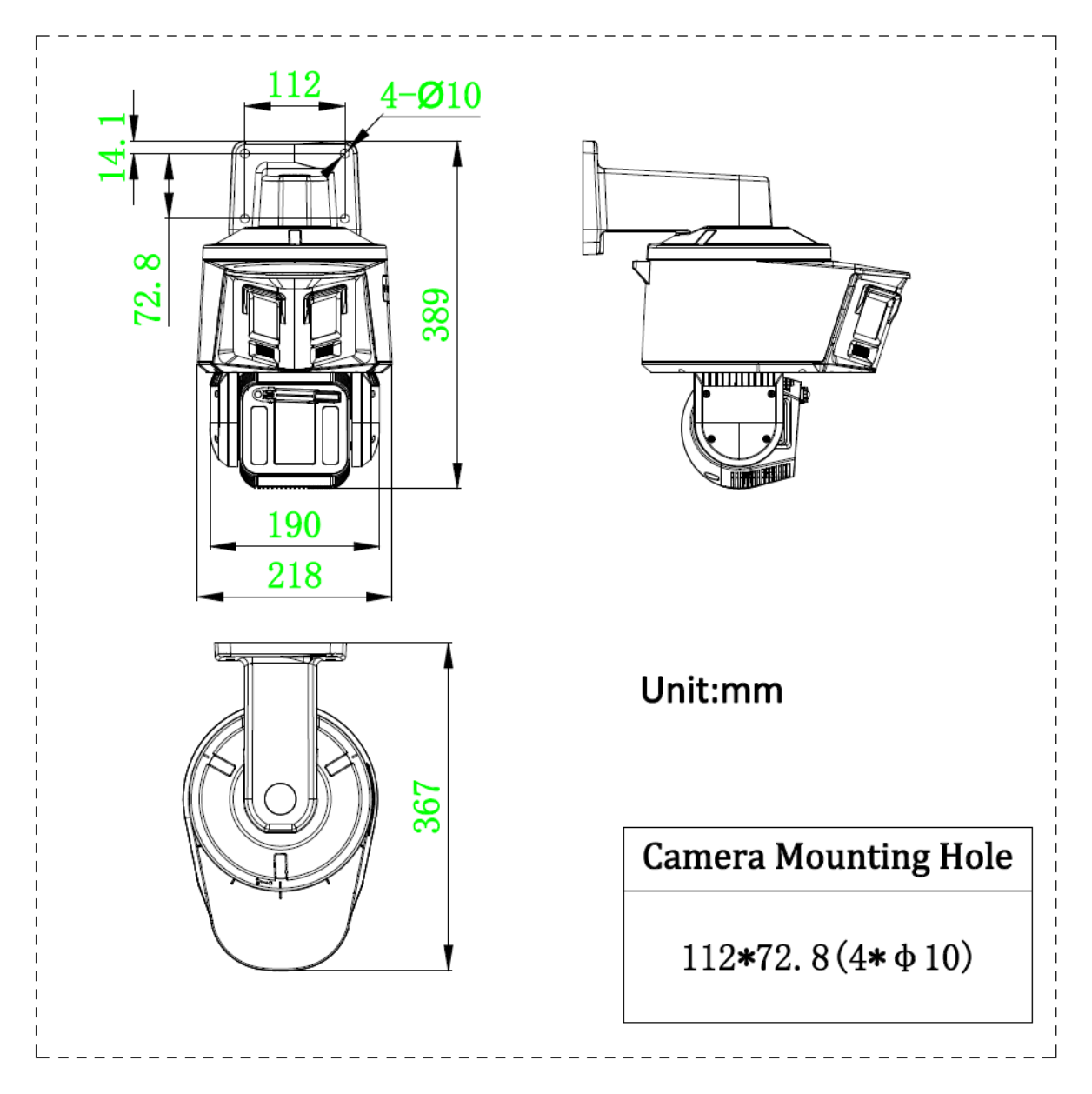

| 尺寸 | Ø 218 mm × 389 mm (Ø 8.58" × 15.31") |
|---|
| 重量 | Approx. 5.4 kg (11.9 lb.) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian CE-EMC (EN 55032: 2015, EN 61000 |
|---|
| Environment | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006) IP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage Protection transient protection |
|---|
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018),C5M |
|---|
| DORI 偵測距離 | Detect Observe Recognize Identify |
|---|
| Definition | 25 px/m 63 px/m 125 px/m 250 px/m 44.7 m (146.65 ft.) 17.7 m (58 ft.) 8.9 m (29.2 ft.) 4.5 m (14.76 ft.) 3523.5 m (11560 ft.) 1398.2 m (4587.27 ft.) 704.7 m (2312 ft.) 352.4 m (1156.17 ft.) |
|---|
