| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|
| 解像度 | 384 × 288 (the resolution of output image is 1920 × 1080) |
|---|
| Pixel Interval | 17 μm |
|---|
| Response Waveband | 8 μm to 14 μm |
|---|
| NETD | ≤ 35 mK (@25° C, F# = 1.0) |
|---|
| 焦距 | 25 mm |
|---|
| Focus Mode | Semi-auto & Manual |
|---|
| IFOV | 0.68 mrad |
|---|
| 光圈 | F1.0 |
|---|
| Field of View | 14.9° × 11.2° (H × V) |
|---|
| Min. Focusing Distance | 1.5 m |
|---|
| Digital Zoom | ×2, ×4, ×8 |
|---|
| 最低照度 | Color: 0.005 Lux @ (F1.3，AGC ON), B/W: 0.001 Lux @ (F1.3，AGC ON) |
|---|
| Aperture (Range) | F1.3-F4.6 |
|---|
| 快門速度 | 1 s to 1/30,000 s |
|---|
| WDR | 120 dB |
|---|
| Optical Defog | Yes |
|---|
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
|---|
| Target Coloration | Supported in white hot and black hot mode |
|---|
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip) |
|---|
| 水平速度 | Configurable, From 0.1°/s to 200°/s, Preset Speed: 240°/s |
|---|
| 垂直速度 | Configurable, From 0.1°/s to 105°/s, Preset Speed: 200°/s |
|---|
| Proportional Zoom | Yes |
|---|
| 預置位 | 300 in total, 273 are configurable. |
|---|
| 巡航掃描 | 8; Up to 32 Presets Per Patrol |
|---|
| 花樣掃描 | 4; More Than 10 Minutes Per Pattern |
|---|
| Power Off Memory | Yes Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
|---|
| PT Status | Turn On/Turn Off Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output |
|---|
| IR Distance | Up to 200 m |
|---|
| IR Intensity and Angle | Automatically adjusted Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) |
|---|
| Temperature Range | - 20° C to 550° C (- 4° F to 1022° F) |
|---|
| Temperature Accuracy | Max (± 2° C, ± 2%) |
|---|
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable. Optical channel 50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720) |
|---|
| 主碼流 | 60 Hz:30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 512, 384 × 288) Optical channel 50 Hz:25 fps (704 × 576, 352 × 288) |
|---|
| 子碼流 | 60 Hz:30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 640 × 512, 384 × 288) Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
|---|
| 音訊壓縮 | G.711u/G.711a/G.722.1/MP2L2/G.726/PCM IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
|---|
| API | ISAPI, HIKVISION SDK, third-party management platform, ONVIF profile S,T,G) |
|---|
| 同時取流 | Up to 20 channels |
|---|
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
|---|
| 客戶端 | iVMS-4200, Hik-Connect Live view (plug-in allowed) : Internet Explorer 11 |
|---|
| 瀏覽器 | Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 + |
|---|
| 警報輸入 | 7-ch inputs (0-5 VDC) |
|---|
| 警報輸出 | 2-ch relay outputs, alarm response actions configurable Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
|---|
| 音訊輸出 | Linear Level; Impedance: 600 Ω 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface |
|---|
| Analog Video Output | 1.0 V [p-p]/75 Ω 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, |
|---|
| 介面語言 | Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
|---|
| 供電 | 24V AC ± 20%, 36V DC ± 20%, 48V DC ± 20%, Hi-PoE |
|---|
| 功耗 | 65W Max |
|---|
| Working | - 40° C to 65° C (- 40° F to 149° F) |
|---|
| Temperature/Humidity | 95% or less |
|---|
| Wiper | Yes IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
|---|

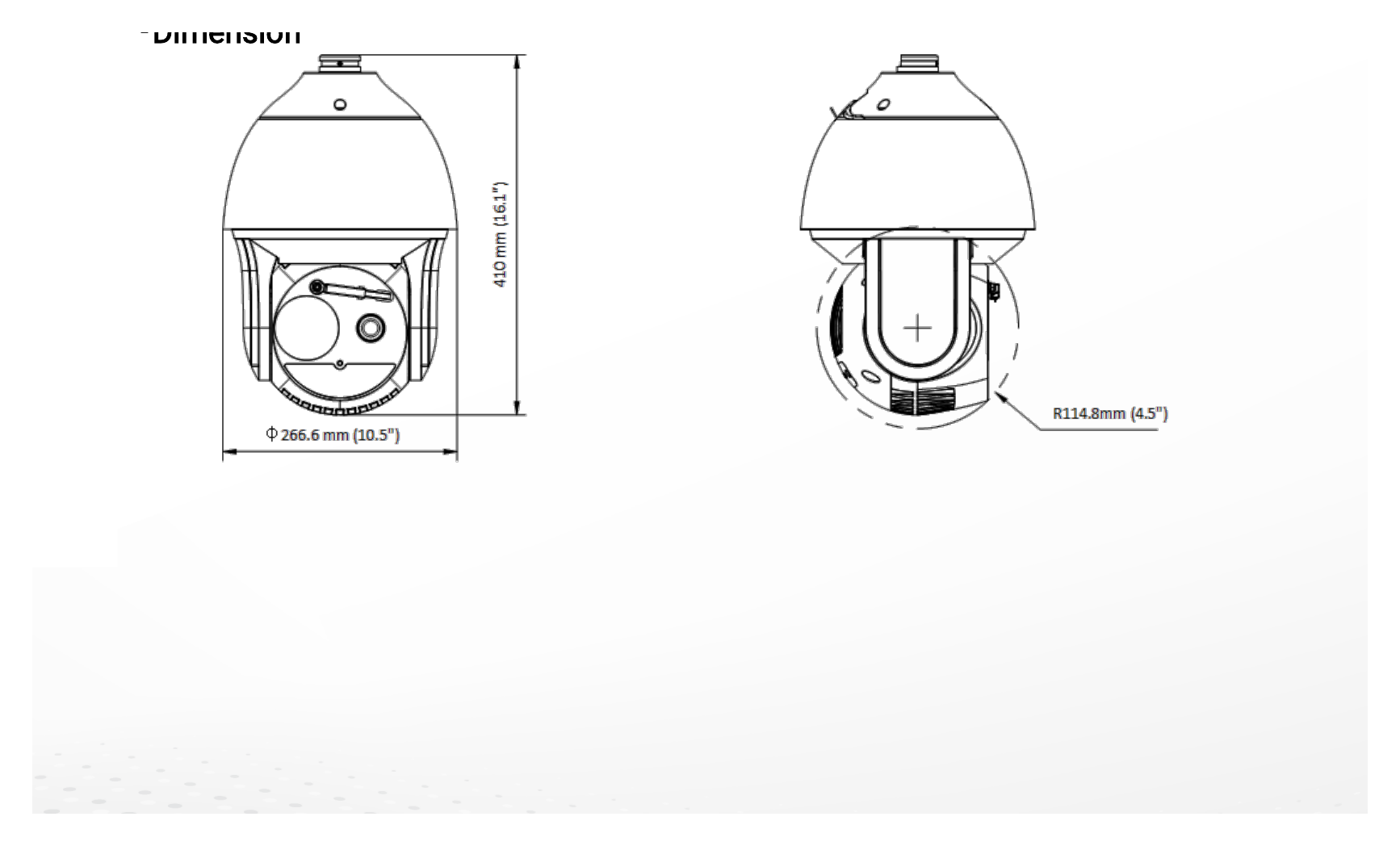

| 尺寸 | 266.6 mm × 410 mm × 198.6 mm (10.5 " × 16.15 " × 7.82 ") |
|---|
| 重量 | Approx. 9 kg (19.84 lb) |
|---|
| VCA Range for Humans | 175 m |
|---|
| VCA Range for Vehicles | 525 m CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) CB: IEC 62368-1: 2014+A11; |
|---|
| Safety | CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 CE-RoHS：2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006 |
|---|
| 防護等級 | IP66: IEC 60529-2013 Range Table |
|---|
| VCA Range | VCA Range Temperature Temperature |
|---|
| Detection Range | Detection Range Recognition Recognition Identification Identification (Vehicles: 1.4 × (Humans: 1.8 × Range (Vehicles: Range (Humans: Range (Vehicles: Range (Humans: 4.0 m) 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 2255 m 735 m 564 m 184 m 282 m 92 m |
|---|
