Hikvision DS-2TD4538-25A4 為Bi-spectrum Mobile Thermal PTZ Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2TD4538-25A4 香港價格連安裝報價。
| 影像感測器 | VOx Uncooled Focal Plane Arrays |
|---|---|
| 解像度 | 384 x 288 Spectral 8 μm to 14 μm Range |
| Pixel Pitch | 12 μm |
| 焦距 | 25 mm |
| Thermal | Focus Mode Athermalized |
| Module | IFOV 0.48 mrad |
| NETD | Less than 35 mK (@25 °C,F#=1.0) |
| Field of View | 10.5° × 7.9° (H × V) |
| 光圈 | F1.0 |
| Digital Zoom | ×1, ×2, ×4, ×8 Min. Focusing 23 m Distance |
| Optical | F1.0-F1.6 (Range) Module |
| Focus Mode | Semi-auto & Manual |
| 快門速度 | 1/1 s to 1/30,000 s |
| WDR | 120 dB |
| Optical Defog | No, support defog by algorithm Picture in Display partial image of thermal channel on the full screen of optical channel Picture Image Effect Target Supported in white hot and black hot mode(Up to 15 types) Coloration Movement Pan: 360° Continuous Rotate; Tilt: From -20° to + 90° (auto flip) Range |
| 水平速度 | Configurable, From 0.2°/s to 200°/s |
| 垂直速度 | Configurable, From 0.2°/s to 100°/s |
| PTZ | Proportional Yes Zoom |
| 預置位 | 300 in total, 273 are configurable. |
| 巡航掃描 | 8; Up to 32 Presets Per Patrol |
| 花樣掃描 | 4; More Than 10 Minutes Per Pattern Yes Memory Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Park Scan |
| IR Distance | Up to 100m |
| Illuminator | IR Intensity Automatically adjusted and Angle 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA VCA rules in total. |
| Temperature | Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene |
| Measurement | (10 points, 10 areas, and 1 line) Temperature |
| Function | -20 °C to 150 °C (-4 °F to 302 °F) Range Temperature ± 8 °C (±14.4 °F) Accuracy |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable Optical channel 50 Hz: 25 fps (2560× 1440，1920 × 1080, 1280 × 960, 1280 × 720) |
| 主碼流 | 60 Hz: 30 fps (2560 × 1440，1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 x 576, 640 x 512, 384 x 288) |
| Video and | Optical channel |
| Audio | 50 Hz: 25fps (704 × 576, 352 × 288) |
| 子碼流 | 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 25 fps (704 × 576, 640 × 512, 384 × 288) |
| Video | Main stream: H.265+/H.265/H.264+/ H.264 |
| Compression | Sub-stream: H.265/H.264 IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, Protocols RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Network | MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network |
| Storage | replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T) Simultaneous Up to 20 channels Live View User/Host Up to 32 users, 3 levels: Administrator, Operator, User level User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x Security access control, IP address filtering |
| 客戶端 | iVMS-4200, Hik-Connect Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Web Browser Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
| SIM Card Type | MicroSIM LTE FDD: B 1/3/5/7/8/20/28 |
| Frequency | LTE TDD: B 38/40/41 WCDMA: B 1/5/8 |
| 標準 | LTE FDD/LTE TDD/WCDMA Wi-Fi standard: IEEE802.11b, 802.11g, 802.11n Frequency range: 2.4GHz~2.4835GHz Wi-Fi Channel bandwith: Support 20MHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP Alarm Action upload/Email linkage |
| Communicati | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. |
| on Interface | 1, RS-485 interface 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, Menu French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Language Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| 供電 | DC8V~DC36V Power Max. ＜ 20 W |
| General | Consumption Working |
| Temperature/ | From -40°C to 70°C (-40°F to 140°F); Humidity: 90% or Less Humidity |
| 防護等級 | IP67 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient |
| Level | Protection |
| 尺寸 | Ø 180mm×300mm |
| 重量 | Approx. 4.2 kg (9.3 lb) |
| Approval | Other E-mark and EN45545 on-board certification Range Table |
| VCA Range (Vehicles: 1.4 | VCA Range (Humans: 1.8 Temperature Temperature |
| × 4.0 m) | × 0.5 m) Measurement (Object: Measurement (Object: 1 0.2 × 0.2 m) × 1 m) 750m 250m 83m 417m |
| Detection | Detection Recognition Recognition Identification Identification |
| Range | Range Range Range Range Range 4.0 m) 0.5 m) 4.0 m) 0.5 m) 4.0 m) 0.5 m) 3194m 1042m 799m 260m 399m 130m |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

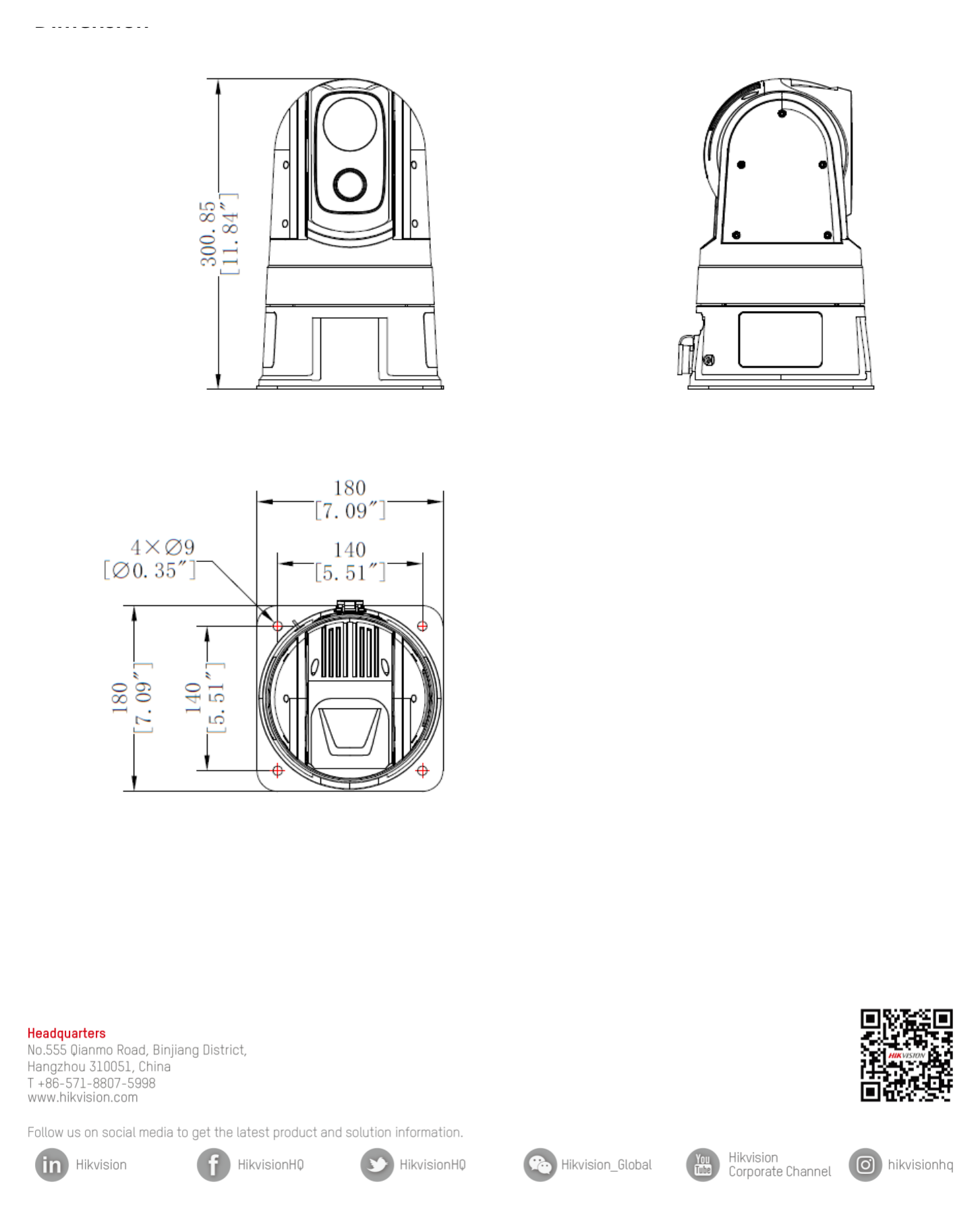

Ø 180mm×300mm｜重量 Approx. 4.2 kg (9.3 lb)｜Unit: mm
DS-2TD4538-25A4 Hikvision Bi-spectrum Mobile Thermal PTZ Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2TD4538-25A4 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2TD4538-25A4 係 VOx Uncooled Focal Plane Arrays，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；快門速度方面，DS-2TD4538-25A4 係 1/1 s to 1/30,000 s，DS-2XE6885G0-ILZHS 係 1 s to 1/100,000 s；尺寸方面，DS-2TD4538-25A4 係 Ø 180mm×300mm，DS-2XE6885G0-ILZHS 係 352 × 200 × 214 mm (13.6" × 7.9" × 8.4")。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2TD4538-25A4 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
