Hikvision DS-2TD8167-150ZC4F 為Thermal & Optical Bi-spectrum Network Stable PTZ，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2TD8167-150ZC4F 香港價格連安裝報價。
| 影像感測器 | Vanadium Oxide Uncooled Focal Plane Arrays |
|---|---|
| 解像度 | 640 × 512 (the resolution of output image is 1920 × 1080) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | Less than 35 mK (@25 °C,F#=1.0) |
| 焦距 | 30 to 150 mm |
| Focus Mode | Semi-auto & Manual |
| IFOV | 0.57 to 0.11 mrad |
| 光圈 | F0.8 to F1.2 |
| Field of View | 20.56° × 16.51° (H × V) to 4.15° × 3.32° (H × V) |
| Min. Focusing Distance | 3m |
| Digital Zoom | ×2, ×4, ×8 |
| 最低照度 | Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON) |
| Aperture (Range) | F1.36-F4.6 |
| 快門速度 | 1s to 1/30,000s |
| WDR | 120 dB |
| Optical Defog | Yes |
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
| Target Coloration | Supported in white hot and black hot mode |
| Movement Range | Pan: 360° Continuous Rotate; Tilt: From -45° to + 45° (auto flip) |
| 水平速度 | Configurable, From 0.01°/s to 40°/s, Preset Speed: 240°/s |
| 垂直速度 | Configurable, From 0.01°/s to 20°/s, Preset Speed: 200°/s |
| Proportional Zoom | Yes |
| 預置位 | 300 in total, 273 are configurable. |
| 巡航掃描 | 8; Up to 32 Presets Per Patrol |
| 花樣掃描 | 4; More Than 10 Minutes Per Pattern |
| Power Off Memory | Yes Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PT Status | Turn On/Turn Off Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene Support 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line) |
| Temperature Range | -20 °C to 150 °C (-4 °F to 302 °F) |
| Temperature Accuracy | ± 8 °C (±14.4 °F) |
| Fire Detection | Dynamic fire point detection, up to 10 fire points detectable. Optical channel 50 Hz:25 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720) |
| 主碼流 | 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 960, 1280 × 720) Thermal channel 50 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 384 × 288) Optical channel 50 Hz:25 fps (704 × 576, 352 × 288) |
| 子碼流 | 60 Hz: 30 fps (704 × 576, 352 × 288) Thermal channel 50 fps (704 × 576, 640 × 480, 384 × 288) Main stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG |
| 音訊壓縮 | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow |
| Color Palettes | 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer) IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) ISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, |
| 同時取流 | Up to 20 channels |
| User/Host level | Up to 32 users, 3 levels: Administrator, Operator, User User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| 客戶端 | iVMS-4200, Hik-Connect |
| 瀏覽器 | Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 + |
| 警報輸入 | 7-ch inputs (0-5 VDC) |
| 警報輸出 | 2-ch relay outputs, alarm response actions configurable Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage 1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| 音訊輸出 | Linear Level; Impedance: 600 Ω 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface |
| Analog Output | 1.0 V [p-p]/75 Ω, BNC for thermal channel 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, |
| Menu Language | Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| 供電 | 48 VDC ± 20%, two-core terminal block |
| 功耗 | Basic: ＜190W; Max: ＜270W (Heater on) From -40°C to 65°C (-40°F to 149°F); Humidity: 95% or Less |
| Wiper | Yes IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| 尺寸 | 559 mm × 379 mm × 646 mm (22.0 " × 14.9 " × 25.4 ") |
| 重量 | Approx. 60kg (132.3 lb) |
| VCA Range for Humans | 1050 m |
| VCA Range for Vehicles | 3150 m CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 FCC: CFR 47 FCC Part 15 subpart B Reach：Regulation(EC) No 1907/2006 |
| 防護等級 | IP66: IEC 60529-2013 Range Table |
| Temperature | Temperature Smoke |
| VCA Range | VCA Range |
| Measurement | Measurement Fire Detection Detection (Vehicles: 1.4 × (Humans: 1.8 × (Object: 0.2 × (Object: 0.5 × (Object: 1 × 1 m) (Object: 5 × 4.0 m) 0.5 m) 0.2 m) 0.5 m) 5m)) 3150 m 1050 m 352 m 862 m 4412 m 6000 m |
| Detection Range | Detection Range Recognition Recognition Identification Identification (Vehicles: 1.4 × (Humans: 1.8 × Range (Vehicles: Range (Humans: Range (Vehicles: Range (Humans: 4.0 m) 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 1.4 × 4.0 m) 1.8 × 0.5 m) 13529 m 4412 m 3382 m 1103 m 1691 m 551 m |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

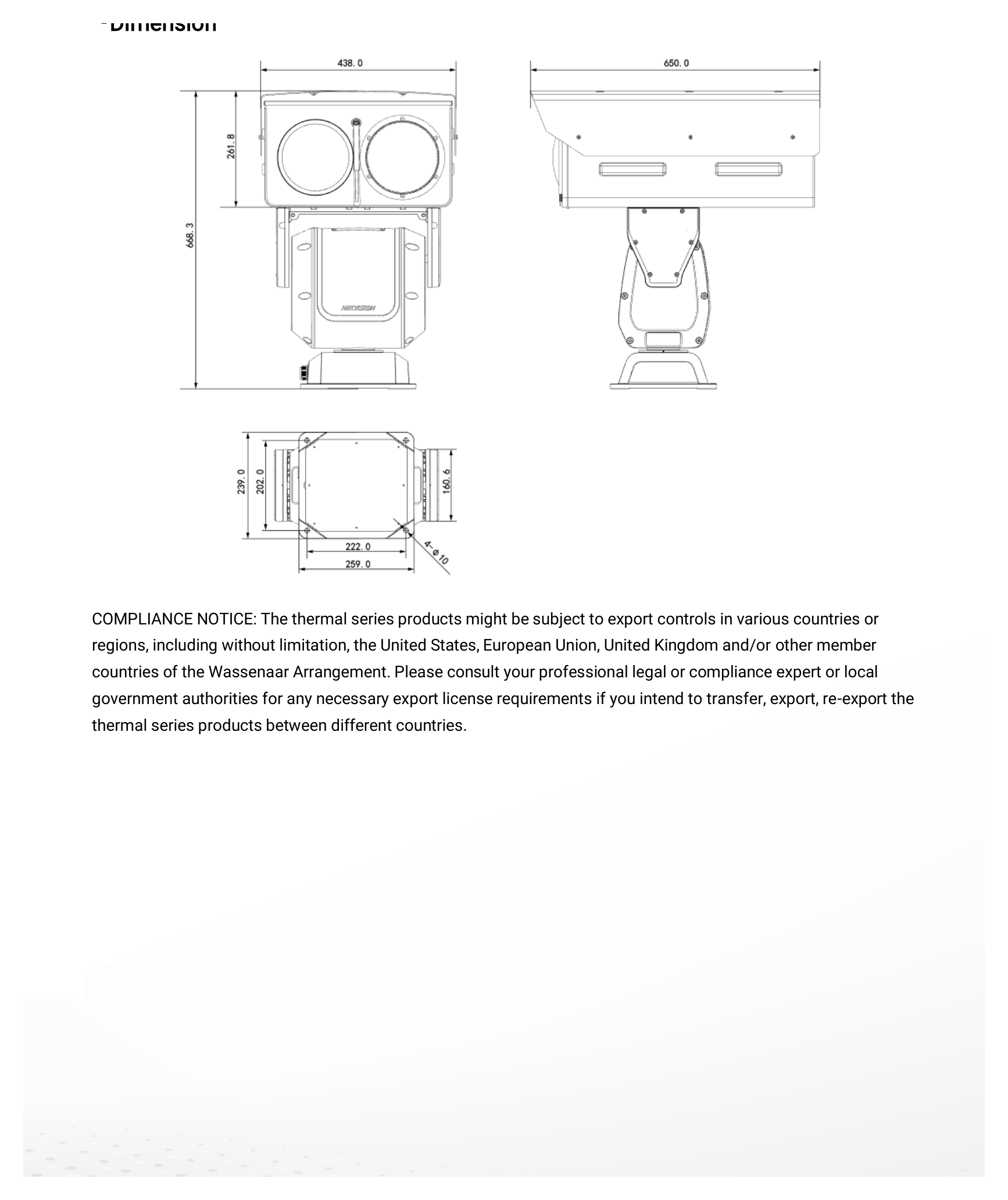

559 mm × 379 mm × 646 mm (22.0 " × 14.9 " × 25.4 ")｜重量 Approx. 60kg (132.3 lb)｜Unit: mm
