| 變焦 | 36× Optical, 12× Digital |
|---|
| 最大解像度 | 3840 × 2160 Lens 1: chromatic: 0.005 Lux @ (F1.3, AGC ON); monochrome: 0.0005 Lux @ (F1.3, AGC ON) Lens 2: chromatic：0.02 Lux @ (F1.7, AGC ON); monochrome: 0.02 Lux @ (F1.7, AGC ON) |
|---|
| 日夜切換 | Switch IR Cut Filter Automatically |
|---|
| Optical Image Stabilization | Supported Lens 1: 6 to 216 mm Lens 2: 2.8 mm fixed lens Lens 1: F1.3 - F4.6 Lens 2: F1.7 Lens 1: Horizontal FOV: 59° to 2.0°, Vertical FOV: 34.2° to 1.1°, Diagonal FOV: 67.1° to |
|---|
| 視場角 FOV | 2.3° Lens 2: Horizontal FOV: 102°, Vertical FOV: 56°, Diagonal FOV: 123° |
|---|
| 變焦速度 | Approx. 4.6 s (optical lens, wide-tele) Vehicle recognition, face recognition, helmet detection, phone call, work wear detection, smoking detection, area invasion, intrusion detection (supports 4 areas) |
|---|
| License Plate Recognition | Supported |
|---|
| 視頻壓縮 | H.264, H.265, MJPEG |
|---|
| Video Format | PS Lens 1: 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576) Lens 2: 60 Hz; 30 fps (3840 × 2160, 3072 × 1728, 704 × 240, 352 × 240) Lens 1: 60 Hz: 12fps (1920 × 1080); 30 fps (1280 × 720, 704 × 480, 704 × 240, 352 × |
|---|
| 子碼流 | 240) Lens 2: 60 Hz; 30 fps (1280 × 720, 704 × 240, 352 × 240) |
|---|
| 音訊壓縮 | G.711ulaw, G.711alaw, G.722.1 |
|---|
| 音訊碼率 | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1) |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 影像增強 | 3D DNR, Defog, EIS |
|---|
| Image Format | JPEG |
|---|
| Screen Type | LCD |
|---|
| Touchscreen | Supported |
|---|
| 屏幕尺寸 | 2.0" |
|---|
| 解像度 | 320 × 240 |
|---|
| RAM | 2 GB |
|---|
| ROM | 4 GB |
|---|
| IR Range | Up to 100 m |
|---|
| 紅外波長 | 850 nm |
|---|
| Positioning Mode | GPS |
|---|
| Wi-Fi Frequency Band | 2.412 to 2.472 GHz, 5.15 to 5.25 GHz, 5.725 to 5.875 GHz |
|---|
| 藍牙 | BT 4.0 Available for models with '/GLE': GSM: 850/900/1800 |
|---|
| Cellular Network | WCDMA: B1/B5/B8 FDD-LTE: B1/B3/B5/B7/B8/B20 TDD-LTE: B38/B40/B41 |
|---|
| Wi-Fi Protocol | 802.11 a/b/g/n/ac |
|---|
| Protocol | HTTPS, RTSP, NTP, FTP |
|---|
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP |
|---|
| 指示燈 | 1 status indicator: charging/power on/power off |
|---|
| 按鈕 | Power on/off |
|---|
| SIM Card | Available for models with '/GLE': 1 (Micro-SIM) |
|---|
| Ethernet | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) 10-Core Aviation Plug: supporting RS-232, RJ45 and power input 9-Core Aviation Plug: supporting RS-485, LINE IN/LINE OUT, 5 V output, Alarm I/O |
|---|
| Extended Storage | Built-in 2 memory card slots, supporting TF card, up to 256 GB for each |
|---|
| Preset | 256 arming locations |
|---|
| 水平旋轉 | 360° endless |
|---|
| 垂直旋轉 | -20° to 90° (Auto-flip) |
|---|
| 巡航掃描 | 8 Patrols |
|---|
| 工作環境 | -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
|---|
| 操作系統 | Linux |
|---|
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
|---|
| Light Sensor | Supported |
|---|
| MIC | Supported 2 Built-in speakers, Max. power consumption: 2.5 W, Max. sound pressure level: 102 dB (10 cm) |
|---|
| 瀏覽器 | Plug-in required live view: IE 10+ |
|---|

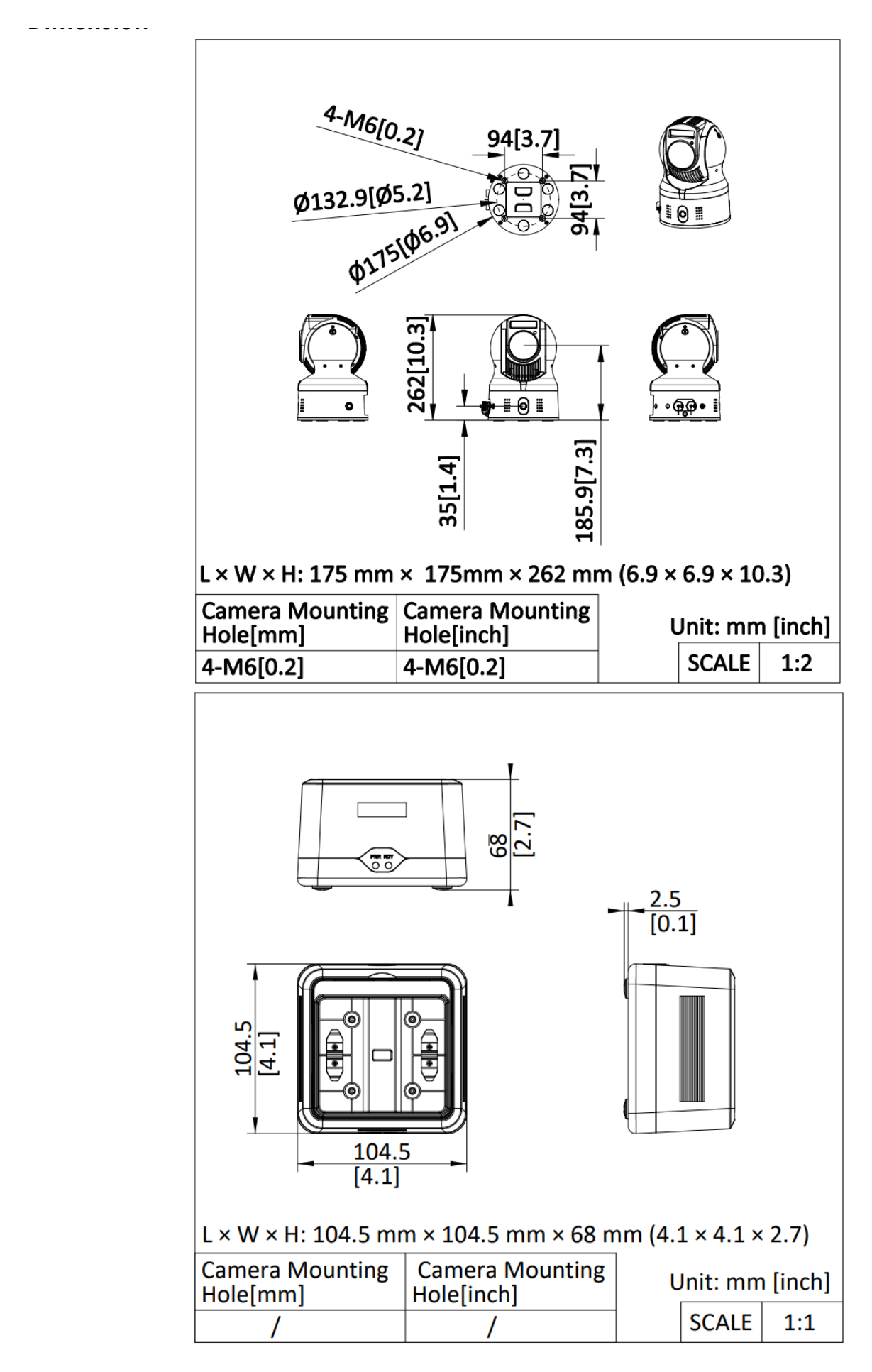

| 尺寸 | Kit: 500 mm × 395 mm × 257 mm (19.7" × 15.6" × 10.1") |
|---|
| 重量 | 11.75 kg (25.9 lb.) |
|---|
| 供電 | 12 VDC, 5.0 A, max. 60 W |
|---|
| Installation Method | Wall-Mounted, Tripod-Mounted, Movable Bracket |
|---|
| 客戶端 | Hik-Connect, HikCentral Pro, HikCentral Master 1 × 345 cm Composite cable 1 × Lithium-ion battery 1 × Mounting support plate for tripod |
|---|
| 包裝清單 | 1 × Safety rope 1 × C92-screwdriver 1 × 500 × 395 × 257 mm portable plastic box 1 × Battery Charger DS-MH1491 1 × tripod DS-MH1697 Battery |
|---|
| Battery Type | Lithium-ion battery, dismountable |
|---|
| 容量 | 13400 mAh |
|---|
| Charging Time | ≤4h |
|---|
| Battery Life | Up to 9h in 4MP resolution¹ CE-RED: EN 301 489-1 V2.2.3: 2019; EN 301 489-3 V2.2.2: 2019; EN 301 489-17 V3.2.4: 2020; EN 301 489-19 V2.2.1: 2022; EN 301 489-52 V1.2.1: 2021; EN 55032: 2015/A11: 2020; EN 55035: 2017/A11: 2020; EN 50130-4: 2011/A1: 2014; EN IEC 61000-3-2: 2019/A1: 2021; EN 61000-3-3: 2013/A2: 2021; EN 300 328 V2.2.2: 2019; EN 301 893 V2.1.1.1: 2017; EN 301 440 V2.1.1: 2017; EN 301 9 |
|---|
| Environment | CE-RoHS: 2011/65/EU |
|---|
| 防護等級 | IP66 |
|---|
