Hikvision iDS-TCV507-HER 為5 MP Radar-video Fusion Checkpoint Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 iDS-TCV507-HER 香港價格連安裝報價。
| 影像感測器 | 5 MP (2/3'' GMOS) |
|---|---|
| 最大解像度 | 2464 × 2056 |
| 最低照度 | Color: 0.001 Lux @ (F1.4, AGC ON), 0 Lux with white light |
| 快門速度 | 8 us-20000 us |
| 日夜切換 | 24/7 color imaging |
| 鏡頭類型 | Varifocal lens, motorized lens, 11 to 40 mm 11 to 40 mm, horizontal FOV 36.8° to 13.9°, vertical FOV 30.7° to 11.6°, diagonal FOV 48.0° to 18.2° |
| 對焦 | Auto |
| 光圈 | F1.6 |
| Built-in Supplement Light Type | White light |
| Light Bead | 16 |
| Built-in Supplement Light Range | Up to 40 m |
| External Supplement Light | Strobe and Flash light |
| Working Frequency | 60 to 61 GHz |
| Modulation Waveform | FMCW |
| Antenna Beam Width | 50° × 18° |
| Detection Distance | 150 m |
| Speed Measuring Range | 10 to 320 km/h |
| Max. Detectable Targets | Up to 128 |
| Speed Measurement Accuracy | ± 2 km/h |
| Coverage | Up to 2 lane(s) |
| Capture Rate | ≥ 98% |
| Trigger Mode | Approaching direction, leaving direction, and both 50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) 50 Hz: 50 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576) 60 Hz: 30 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576) 50 Hz: 50 fps (2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| H.264 類型 | Baseline profile/Main profile/High profile |
| H.265 類型 | Main profile TCP/IP, ICMP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, SNMP, 802.1X, IPv4/IPv6, UDP, ISUP, ARP, IGMP, SMTP |
| 同時取流 | Up to 6 channels |
| API | ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) Up to 16 users 3 user levels: administrator, operator and user Password protection, Complicated password, HTTPS encryption, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), IP address filter, Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, Control timeout settings |
| 網絡儲存 | MicroSD/TF card (512 GB), local storage and CVR, NVR, ANR |
| 客戶端 | Hik-Central Master, Hik-Central Pro, HikCentral Master Lite |
| 瀏覽器 | Chrome V61+, IE9 to IE11, Firefox V40+, Edge Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
| 日夜模式 | Auto, Schedule, Manual |
| 信噪比 SNR | 60 dB |
| 影像增強 | BLC, 3D DNR |
| Satellite Positioning | Optional |
| 網絡接口 | 1 RJ-45 10 M/100 M/1000 M self-adaptive Ethernet interface |
| 機身儲存 | Built-in memory card slot, supporting micro SD/SDHC/SDXC card, up to 512 GB |
| 警報 | 6 output interfaces |
| RS-485 | 1 RS-485 interface HDD Error, Network disconnected, IP address conflicted, Traffic light detector exception |
| No License Plate Detection | Supported Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| Motorcycle LPR | Supported Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. |
| Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycl e/Tricycle Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, |
| Vehicle Manufacturer | Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, |
| License Plate Color Recognition | Customized to support |
| U-Turn | Supported (only E-Police mode) |
| Red Light Running | Supported (only E-Police mode) |
| Failing to Yield for Pedestrians | Supported (only E-Police mode) |
| Stop Vehicle on Intersection | Supported (only E-Police mode) |
| Not Following Directional Sign | Supported (only E-Police mode) |
| Yellow Box Junction Violation | Supported (only E-Police mode) |
| Driving on Lane Line Detection | Supported |
| Lane Change Detection | Supported |
| Seatbelt Detection | Supported (with flash supplement light) |
| Phone Call Detection | Supported (with flash supplement light) |
| Vehicle Window Film | Supported (with flash supplement light) |
| Wrong-Way Driving Detection | Supported |
| Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
| Prohibition Mark Violation | Supported |
| Speeding | Supported (with Radar) |
| Low-Speed | Supported (with Radar) |
| Without Helmet | Supported |
| Manned Non-Motor Vehicle | Supported |
| Capture Speed Range | 10 to 320 km/h |
| 操作系統 | Linux |
| 供電 | DC 36 V ± 20%, 2 A, max. 75 W, two-core terminal block |
| 材質 | Aluminum alloy |
| 尺寸 | 457 mm × 396 mm × 139.15 mm (17.99" × 15.59" × 5.48") (L × W × H) |
| 包裝尺寸 | 535 mm × 500 mm × 360 mm (21.06" × 19.68" × 14.17") (L × W × H) |
| 連包裝重量 | Approx. 13.72 kg (30.2 lb.) |
| 重量 | Approx. 8.13 kg (17.9 lb.) |
| 工作環境 | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
| 一般功能 | One-key reset, Three streams, Heartbeat, Password protection, Pixel counter |
| Heater | Optional 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Language Spanish CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4 ，EN 301489-52 V1.2.1, EN 300440 V2.1.1, EN IEC 62311:2020 CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000 -3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
| Environment | CE-RoHS: 2011/65/EU, Reach: Regulation (EC) No 1907/2006 CE-LVD: EN 62368-1: 2014+A11: 2017, CB: IEC 62368-1: 2018,CB: IEC 62368-1: 2014, CE-LVD: EN IEC 62368-1:2020+A11:2020 |
| 防護等級 | IK10: IEC 62262:2002, IP66: IEC 60529-2013 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

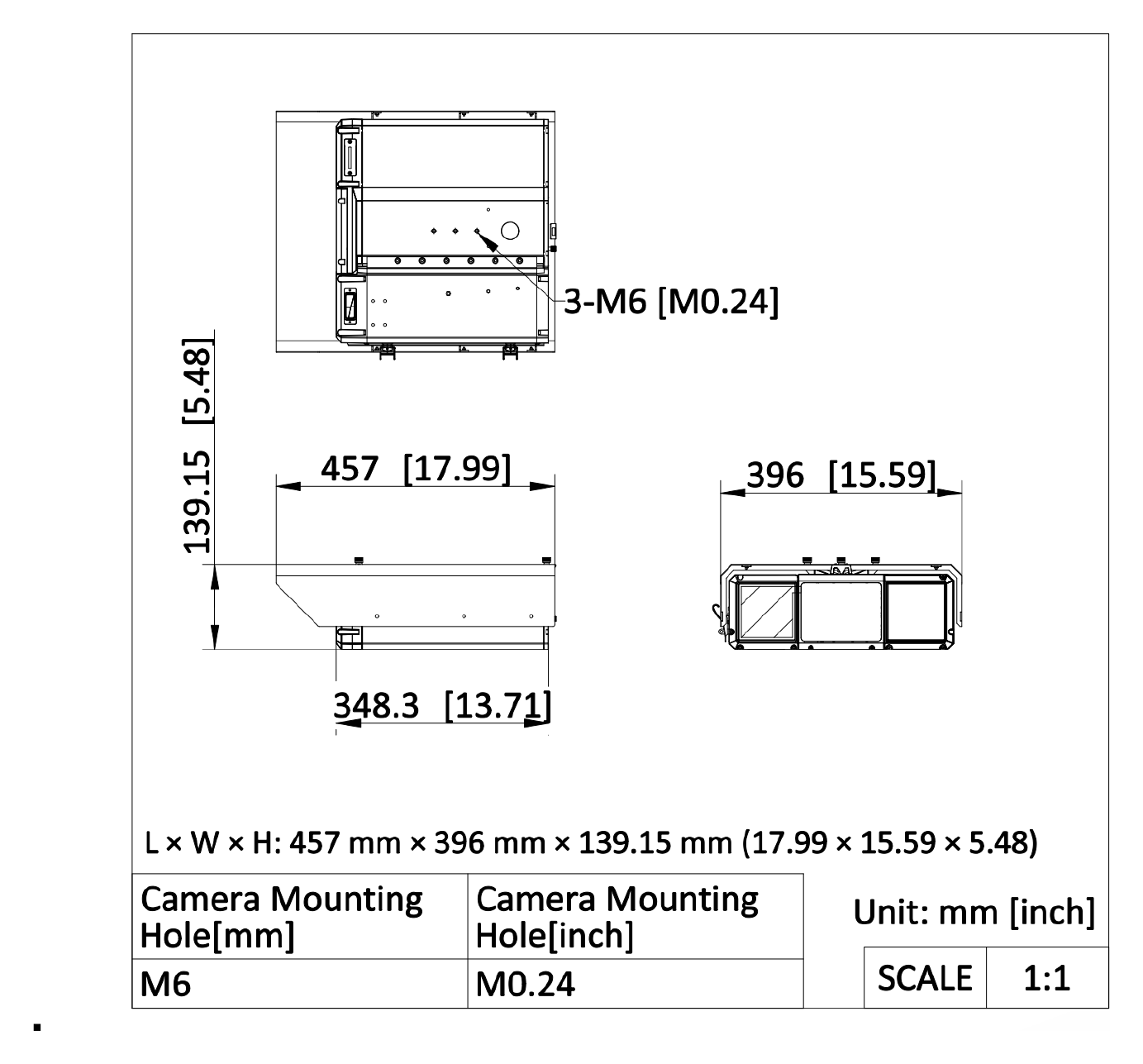

457 mm × 396 mm × 139.15 mm (17.99" × 15.59" × 5.48") (L × W × H)｜重量 Approx. 8.13 kg (17.9 lb.)｜Unit: mm
iDS-TCV507-HER Hikvision 5 MP Radar-video Fusion Checkpoint Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，iDS-TCV507-HER 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，iDS-TCV507-HER 係 Approx. 8.13 kg (17.9 lb.)，DS-D4039CD-1F 係 5.6 kg (12.35 lb)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-D4039CD-1F 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 iDS-TCV507-HER 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
