| 視頻壓縮 | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 When 1080p Lite mode is not enabled: 4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP Lite/1080p Lite/720p lite/VGA/WD1/4CIF/CIF Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CI |
|---|
| Video Bitrate | 32 Kbps to 6 Mbps |
|---|
| Dual-stream | Support |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 音訊壓縮 | G.711u |
|---|
| Audio Bitrate | 64 Kbps 1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps 5 MP(2560 × 1944)@20 fps,4 MP(25 |
|---|
| CVBS Input | Support |
|---|
| HDMI 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|---|
| VGA 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|---|
| 視頻輸出模式 | HDMI/VGA simultaneous output 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|---|
| 同步回放 | 4-ch |
|---|
| Total Bandwidth | 72 Mbps |
|---|
| 遠程連接 | 32 TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|---|
| 網絡接口 | 1, RJ45 10M/100M self-adaptive Ethernet interface |
|---|
| WiFi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
|---|
| SATA | 1 SATA interface |
|---|
| 容量 | Up to 10 TB capacity for each disk |
|---|
| 警報輸入/輸出 | N/A |
|---|
| USB 接口 | Real panel: 2 × USB 2.0 |
|---|
| 供電 | 12 VDC, 1.5 A |
|---|
| 功耗 | ≤ 8 W (without HDD) |
|---|
| 工作溫度 | -10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| 工作濕度 | 10% to 90% |
|---|

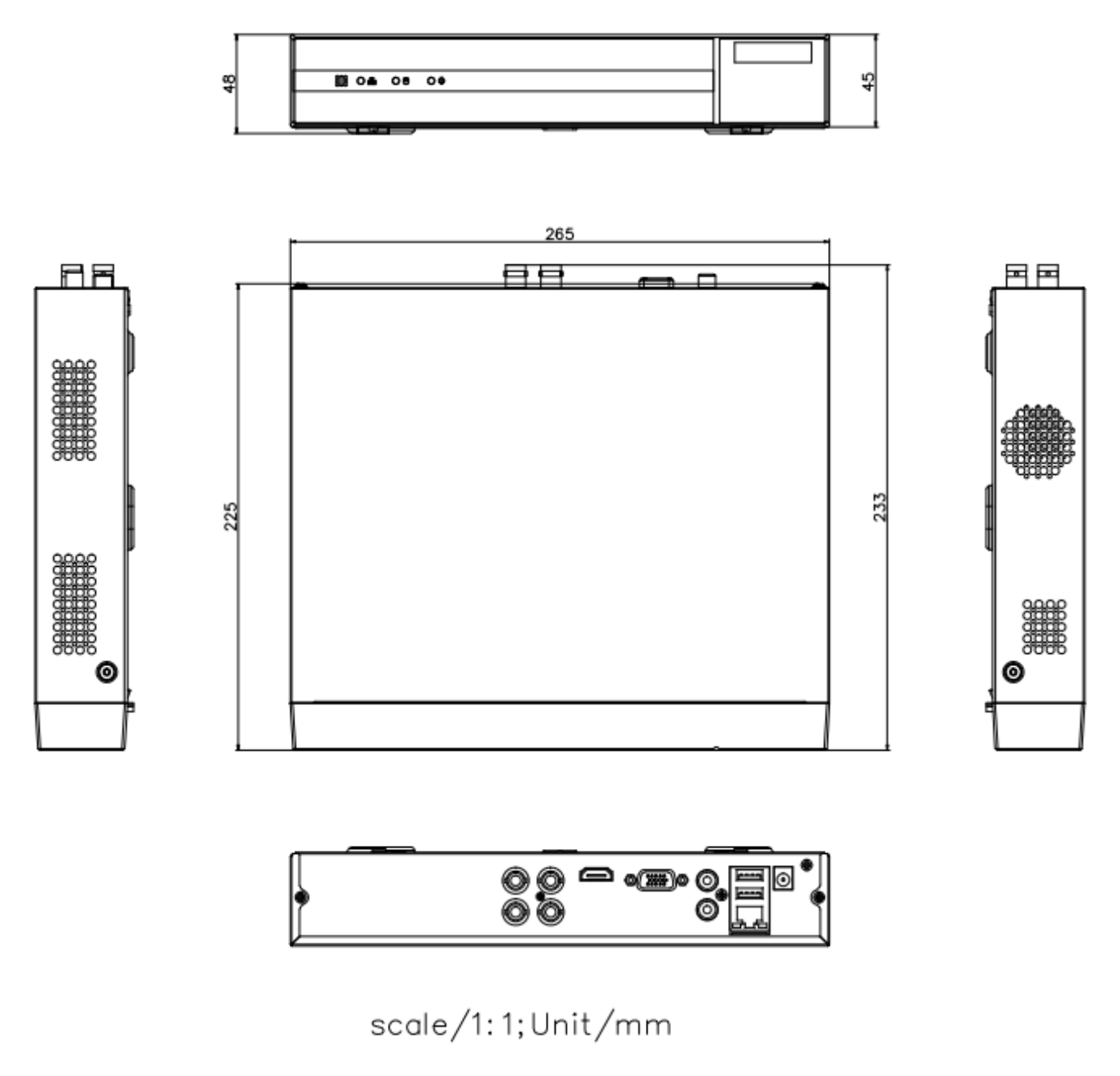

| 尺寸 | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|---|
| 重量 | ≤ 1 kg (without HDD, 2.2 lb.) |
|---|
