| | Support 8 MP@8 fps encoding Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|---|
| 視頻壓縮 | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|---|
| Encoding Resolution | 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps |
|---|
| Frame Rate | 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|---|
| Video Bitrate | 32 Kbps to 10 Mbps |
|---|
| Dual-stream | Support |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 音訊壓縮 | G.711u |
|---|
| Audio Bitrate | 64 Kbps 4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras 8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fp |
|---|
| HDCVI Input | MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps |
|---|
| CVBS Input | PAL/NTSC HDMI Output 1024/60Hz, 1280 × 720/60Hz |
|---|
| VGA 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|---|
| 視頻輸出模式 | HDMI/VGA simultaneous output 1-ch, RCA (2.0 Vp-p, 1 KΩ) Audio Input 4-ch via coaxial cable |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
|---|
| 同步回放 | 8-ch |
|---|
| Total Bandwidth | 128 Mbps TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, Network Protocol ONVIF |
|---|
| 遠程連接 | 64 |
|---|
| 網絡接口 | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
|---|
| WiFi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
|---|
| SATA | 1 SATA interface |
|---|
| 容量 | Up to 10 TB capacity for each disk |
|---|
| USB 接口 | Rear panel: 2 × USB 2.0 |
|---|
| 供電 | 12 VDC, 2 A |
|---|
| 功耗 | ≤ 10 W (without HDD) |
|---|
| 工作溫度 | -10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| 工作濕度 | 10% to 90% |
|---|

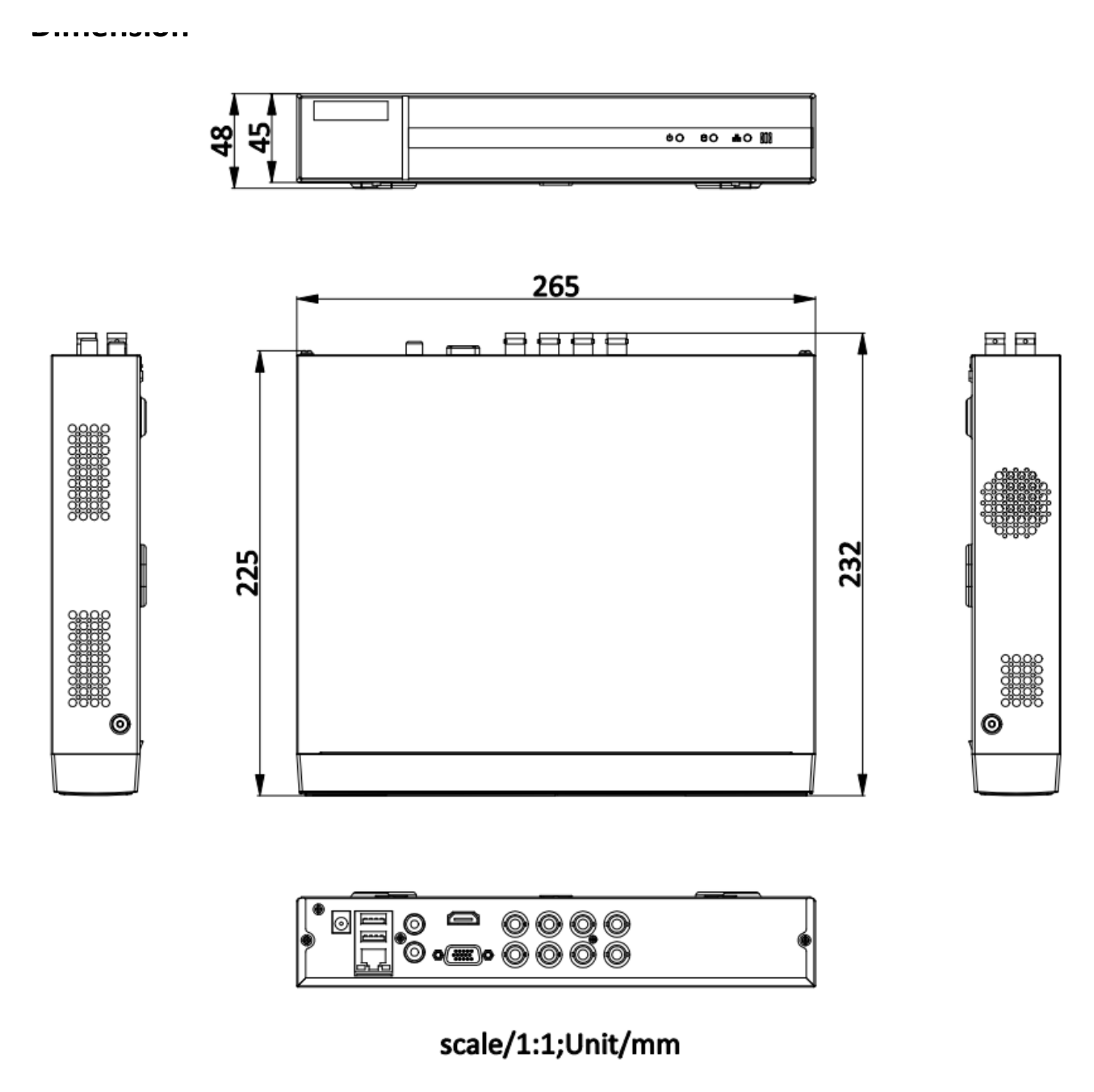

| 尺寸 | 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch) |
|---|
| 重量 | ≤ 1.6 kg (without HDD, 3.5 lb.) |
|---|
