| 視頻壓縮 | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 When 1080p lite mode is not enabled: 4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF Encoding resolution When 1080p lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF Main stream: When 1080p Lite mode is not enabled: 4 MP lite/1080p@15 fps; 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|---|
| Frame rate | When 1080p Lite mode is enabled: 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
|---|
| 視頻碼率 | 32 Kbps to 6 Mbps |
|---|
| Dual stream | Support |
|---|
| 碼流類型 | Video, Video & Audio |
|---|
| 音訊壓縮 | G.711u |
|---|
| 音訊碼率 | 64 Kbps 2-ch (up to 34-ch) Enhanced IP mode on: IP video input1 8-ch (up to 40-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras 32-ch Analog video input BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 HDTVI input MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,72 |
|---|
| CVBS input | PAL/NTSC |
|---|
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|---|
| VGA 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
|---|
| HDMI 輸出 | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|---|
| 視頻輸出模式 | HDMI and VGA simultaneous output 32-ch via coaxial cable |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|---|
| 同步回放 | 16-ch |
|---|
| Total bandwidth | 128 Mbps 96 Mbps |
|---|
| 遠程連接 | 128 TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|---|
| 網絡接口 | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
|---|
| SATA | 2 SATA interfaces |
|---|
| 容量 | Up to 10 TB capacity for each disk |
|---|
| Serial interface | 1 RS-485 (full-duplex) |
|---|
| USB 接口 | Front panel: 1 × USB 2.0, rear panel: 1 × USB 3.0 |
|---|
| 警報輸入/輸出 | N/A (optional to support) |
|---|
| 供電 | 12 VDC, 3.3 A ≤ 40 W |
|---|
| 工作溫度 | -10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| 工作濕度 | 10% to 90% |
|---|

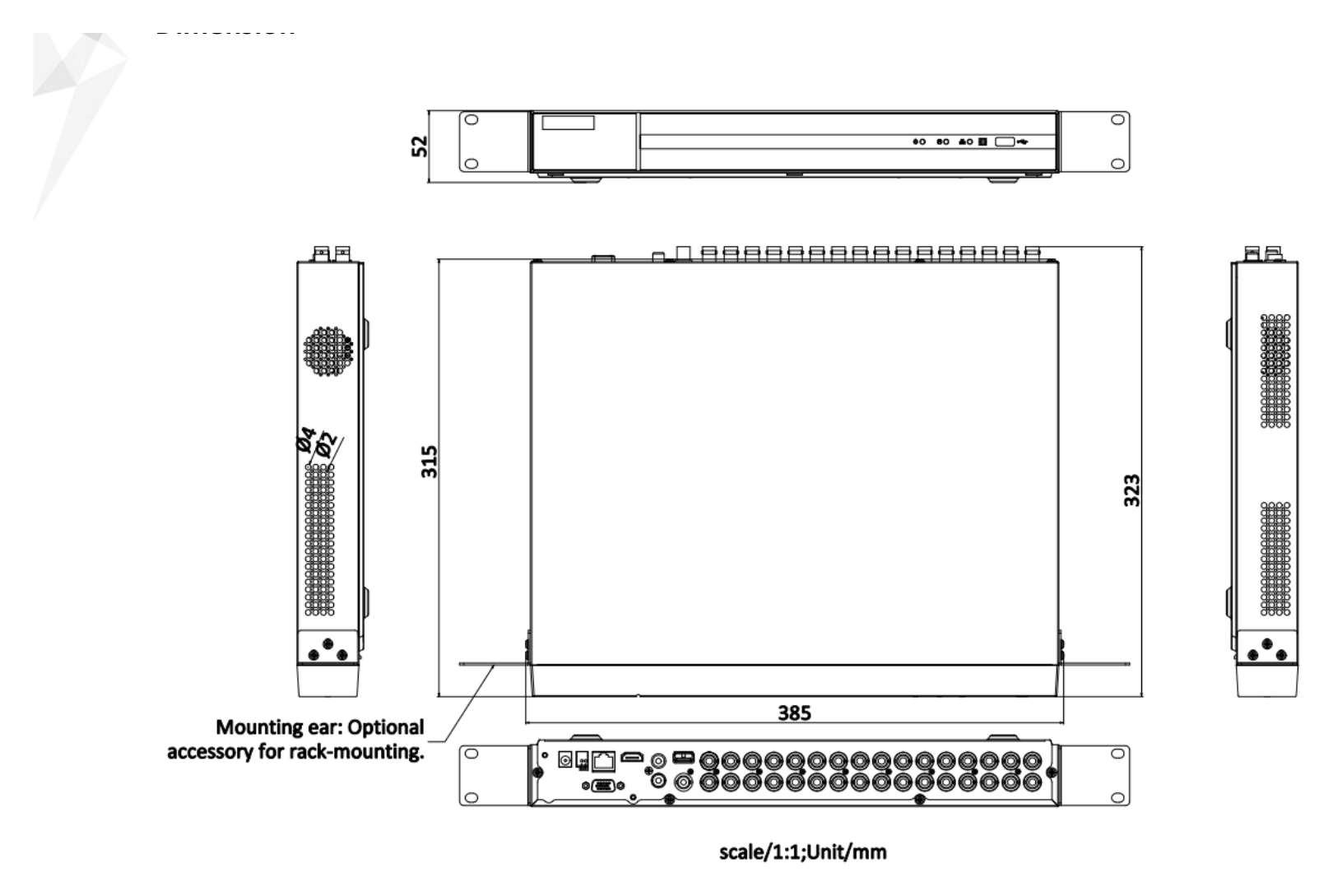

| 尺寸 | 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 inch) |
|---|
| Weight (without HDD) | ≤ 2 kg (4.4 lb.) |
|---|
