| 影像感測器 | 1/3″ Progressive Scan CMOS |
|---|
| 最大解像度 | 2560 × 1440 |
|---|
| 最低照度 | Color: 0.01 Lux @(F1.2 ，AGC ON), B/W: 0 Lux with light |
|---|
| 焦距 | 2.8 mm, 4 mm 2.8 mm, horizontal FOV 104.9°, vertical FOV 58.3°, diagonal FOV 123.3° 4 mm, horizontal FOV 81.3°, vertical FOV 43.7°, diagonal FOV 96.9° |
|---|
| 光圈 | F1.6 |
|---|
| 補光類型 | IR & White Light White Light Distance: up to 30 m IR Distance: up to 30 m |
|---|
| 智能補光 | Yes |
|---|
| 紅外波長 | 850 nm |
|---|
| 水平旋轉 | 0° to 345° |
|---|
| 垂直旋轉 | 0° to 80° |
|---|
| 水平速度 | Pan speed: configurable from 4° to 25°/s |
|---|
| 垂直速度 | Tilt speed: configurable from 4° to 20°/s |
|---|
| 視頻壓縮 | H.265, H.264, MJPEG |
|---|
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
|---|
| H.265 類型 | Main Profile 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360 ） 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| 音訊壓縮 | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM) |
|---|
| 音訊取樣率 | 8 kHz/16 kHz |
|---|
| 環境噪音過濾 | Yes |
|---|
| 網絡協議 | IPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour |
|---|
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP Saturation, brightness, contrast, and sharpness adjustable by client software or web browser |
|---|
| 寬動態 WDR | Digital WDR |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB |
|---|
| 內置麥克風 | 1 built-in microphone |
|---|
| Built-in Speaker | 1 built-in speaker |
|---|
| 重設 | Yes Motion detection (support alarm triggering by specified target type (human)), video Basic Event tampering alarm, exception Upload to FTP/memory card, notify surveillance center, send email, trigger capture, Alarm Linkage audible warning, auto-tracking lite |
|---|
| 工作環境 | -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing) |
|---|
| 一般功能 | Mirror, password protection, watermark 12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug, reverse polarity |
|---|

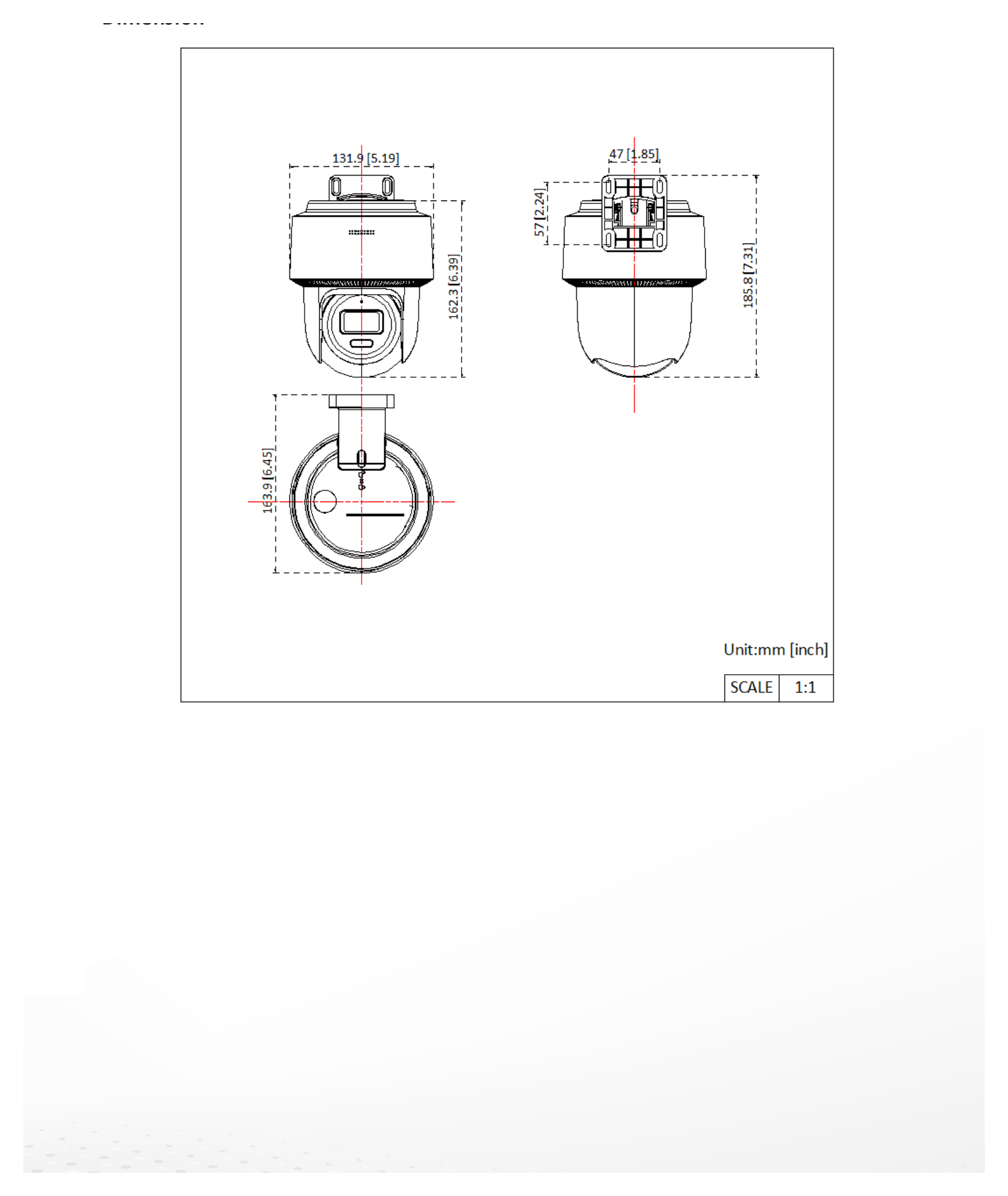

| 供電 | protection, PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19") Dimensions With package dimensi on: 224 mm × 164 mm × 230 mm (8.82" × 6.46" × 9.06") Camera weight: 600 g (1.32 lb.) Weight With package weight: 900 g (2.0 lb.) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + |
|---|
| 防護等級 | IP66 |
|---|
