| 影像感測器 | 1/2.8" progressive scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 最低照度 | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/1 s to 1/30,000 s |
|---|
| 日夜切換 | IR Cut Filter |
|---|
| 變焦 | 25 × optical, 16 × digital |
|---|
| 焦距 | 4.8 mm to 120 mm, 25 × optical Horizontal field of view: 57.6° to 2.5° (Wide-Tele), |
|---|
| 視場角 FOV | Vertical field of view: 34.4° to 1.4° (Wide-Tele), Diagonal field of view: 64.5° to 2.9° (Wide-Tele) |
|---|
| 對焦 | Auto, semi-auto, manual |
|---|
| 光圈 | Max. F1.6 |
|---|
| 變焦速度 | Approx. 3.6 s (optical lens, wide-tele) |
|---|
| 補光類型 | IR |
|---|
| 補光距離 | Up to 100 m |
|---|
| 智能補光 | Yes |
|---|
| 水平旋轉 | 360° endless |
|---|
| 垂直旋轉 | From -15° to 90° (Auto-flip) |
|---|
| 水平速度 | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
|---|
| 垂直速度 | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
|---|
| 比例變倍 | Yes |
|---|
| 預置位 | 300 |
|---|
| 預置位凍結 | Yes |
|---|
| 巡航掃描 | 8 patrols, up to 32 presets for each patrol |
|---|
| 花樣掃描 | 4 pattern scans, record time over 10 minutes for each scan Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
|---|
| PTZ 狀態顯示 | Yes Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust |
|---|
| 斷電記憶 | Yes 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) Main Stream: H.265+/H.265/H.264+/H. |
|---|
| 視頻壓縮 | Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16384 Kbps |
|---|
| H.264 類型 | Baseline Profile/Main Profile/High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | Main stream, sub-stream and third stream respectively support four fixed areas |
|---|
| 音訊壓縮 | G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM |
|---|
| 音訊碼率 | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2) IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | Open Network Video Interface, ISAPI, SDK, ISUP |
|---|
| 用戶管理 | Up to 32 users. 3 levels: Administrator, Operator and User User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
|---|
| 網絡儲存 | NAS (NPS, SMB/ CIPS), ANR |
|---|
| 客戶端 | iVMS-4200, HiLookVision |
|---|
| 瀏覽器 | IE10-11, Chrome 57+, Firefox 52+, Safari 12+ Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 除霧 | Digital defog |
|---|
| 防抖 | No |
|---|
| 影像增強 | BLC, HLC, 3D DNR |
|---|
| 隱私遮蔽 | 24 programmable privacy masks |
|---|
| Regional Focus | Yes |
|---|
| Regional Exposure | Yes |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4) |
|---|
| 機身儲存 | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|---|
| 基本事件 | Motion Detection, Video Tampering Detection, Exception Detection Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region |
|---|
| 智能事件 | Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max.:18 W (IR Max.6 W) |
|---|

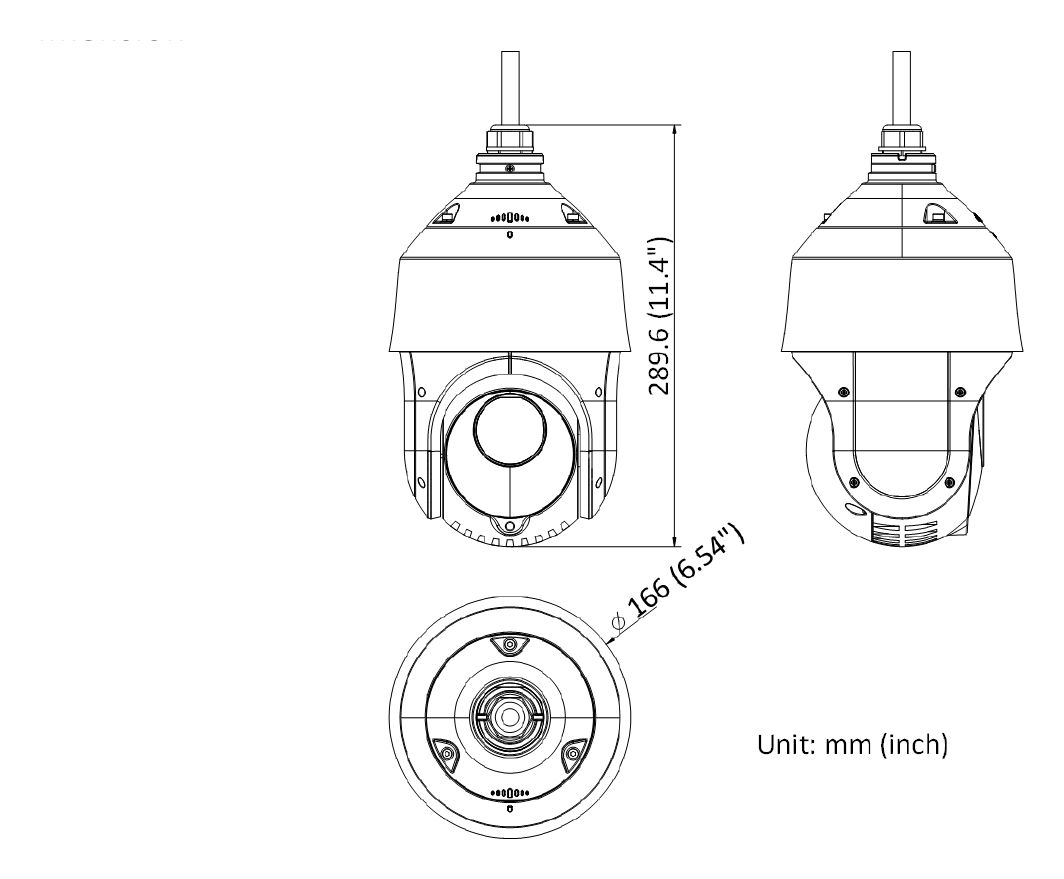

| 尺寸 | Ø 166 mm × 289.6 mm (Ø 6.54" × 11.4") |
|---|
| 重量 | Approx. 2.5 kg (5.51 lb) |
|---|
| 材質 | ADC 12, PC+10% GF |
|---|
| 工作環境 | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1) CB (IEC 62368-1:2014+A11); |
|---|
| Safety | CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); |
|---|
| Environment | WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) IP66 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Protection Transient Protection |
|---|
