| 影像感測器 | 1/2.8"progressive scan CMOS |
|---|
| Max. Image Resolution | 1920 × 1080 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) Color: 0.005 Lux @(F1.6, AGC ON) |
|---|
| 最低照度 | B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
|---|
| White Balance | Auto/Hauto/Manual/ATW/Indoor/Outdoor |
|---|
| AGC | Auto/Manual |
|---|
| DNR | 3D DNR |
|---|
| WDR | ≥ 120 dB PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
|---|
| 日夜切換 | IR cut filter |
|---|
| Digital Zoom | 16× |
|---|
| 隱私遮蔽 | 8 programmable privacy masks |
|---|
| BLC (Backlight Compensation) | Yes |
|---|
| HLC (highlight Compensation) | Yes |
|---|
| EIS (Electric Image Stabilization) | Yes |
|---|
| Reginal Focus | Yes |
|---|
| Focus Mode | Auto/Semiauto/Manual |
|---|
| 焦距 | 4.8 mm to 120 mm, 25 × Optical |
|---|
| Aperture Range | F 1.6 to F 3.5 |
|---|
| Horizontal Field of View | 57.6° to 2.5° (wide to tele) |
|---|
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
|---|
| 變焦速度 | Approx. 3.6 s (optical, wide to tele) |
|---|
| Pan Range | 360° endless Pan manual speed: 0.1° to 120°/s Pan preset speed: 120°/s |
|---|
| Tilt Range | -15° to 90° (auto flip) Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
|---|
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
|---|
| 預置位 | 256 |
|---|
| Patrol | 10 patrols, up to 32 presets per patrol |
|---|
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
|---|
| 斷電記憶 | Yes Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
|---|
| PTZ Position Display | ON/OFF |
|---|
| 預置位凍結 | Yes Calibration/None |
|---|
| IR Distance | Up to 150 m |
|---|
| IR Intensity | Automatically adjusted depending on the zoom ratio |
|---|
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) Half-duplex mode |
|---|
| RS-485 Interface | Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol |
|---|
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
|---|
| Menu Language | English 24 VAC |
|---|
| 供電 | Max.30 W (IR: 10 W) |
|---|
| 工作溫度 | -30° C to 65° C (-22° F to 149° F) |
|---|
| 工作濕度 | 90% or less IP66 standard (outdoor dome) |
|---|
| Protection Level | TVS 4,000 V lightning protection, surge protection and voltage transient protection |
|---|
| Mounting | Various mounting modes optional |
|---|

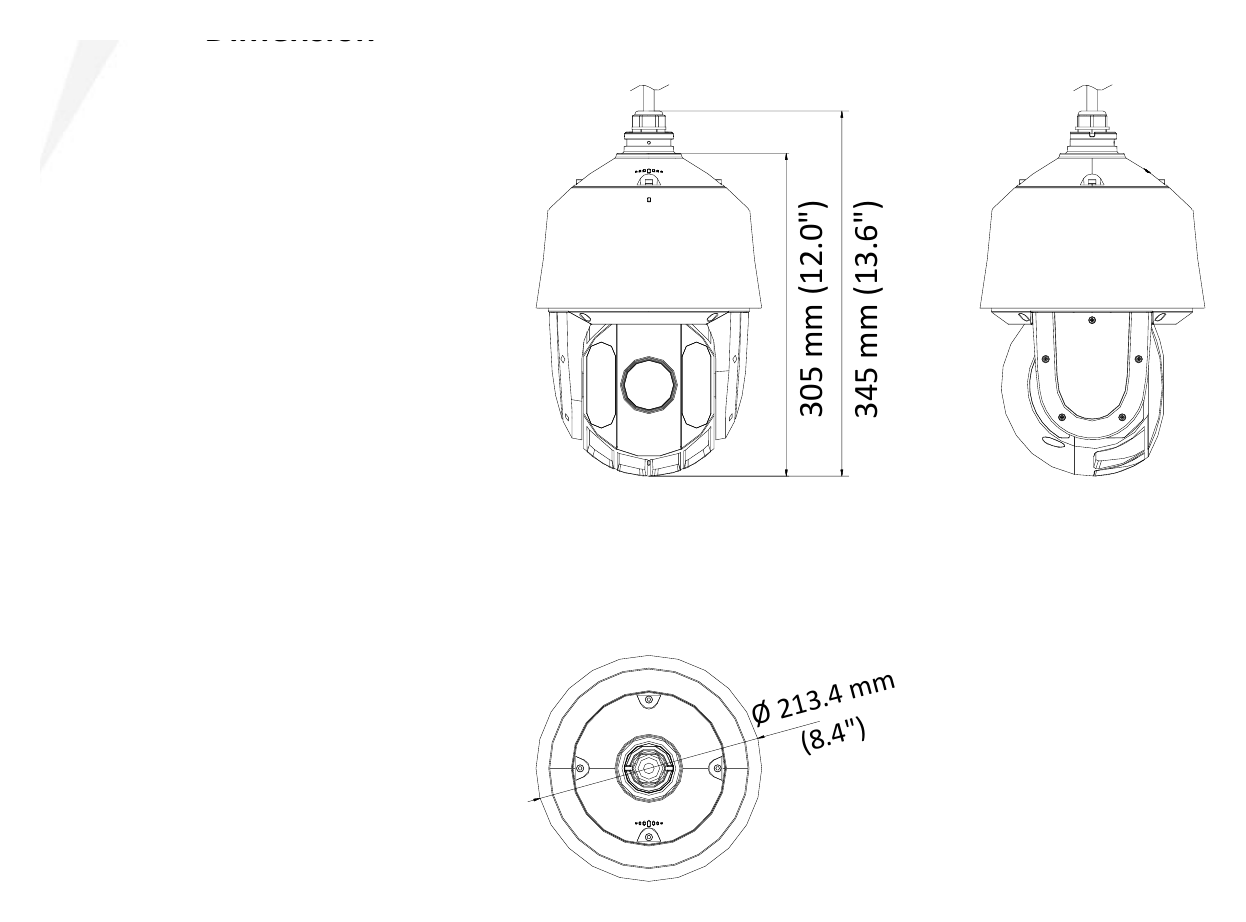

| 尺寸 | Ø 213.4 mm × 345 mm (Ø 8. 4" × 13.8") |
|---|
| Weight (approx.) | 3.3 kg (7.28 Ib.) |
|---|
