| Standard Operating Temperature | 32°F to 120°F (0°C to 49°C) |
|---|
| Humidity Range | 10 to 93% non-condensing |
|---|
| Strobe Flash Rate | 1 flash per second |
|---|
| Nominal Voltage | Regulated 12 DC or regulated 24 DC/FWR1,2 |
|---|
| Operating Voltage Range | 8 to 17.5 V (12 V nominal) or 16 to 33 V (24 V nominal) |
|---|
| Operating Voltage Range MDL3 Sync Module | 8.5 to 17.5 V (12 V nominal) or 16.5 to 33 V (24 V nominal) |
|---|
| Input Terminal Wire Gauge | 12 to 18 AWG |
|---|
| Wall-Mount Dimensions (including lens) | 5.6˝ L × 4.7˝ W × 1.91˝ D (143 mm L × 119 mm W × 49 mm D) Compact Wall-Mount Dimensions (including lens) 5.26” L x 3.46” W x 1.91” D (133 mm L x 88 mm W x 49 mm D) |
|---|
| Horn Dimensions | 5.6˝ L × 4.7˝ W × 1.25˝ D (143 mm L × 119 mm W × 32 mm D) |
|---|
| Compact Horn Dimensions | 5.25” L x 3.45” W x 1.25” D (133mm L x 88mm W x 32mm D) 1. Full Wave Rectified (FWR) voltage is a non-regulated, time-varying power source that is used on some power supply and panel outputs. 2. Strobe products will operate at 12 V nominal only for 15 cd and 30 cd. |
|---|
| UL Max. Strobe Current Draw (mA RMS) | UL Max. Horn Current Draw (mA RMS) 8–17.5 Volts 16–33 Volts 8–17.5 Volts 16–33 Volts |
|---|
| Candela | DC DC FWR Sound Pattern dB DC DC FWR |
|---|
| Range | 30 143 63 83 Temporal Low 28 32 54 75 N/A 107 136 Non-Temporal High 43 47 54 95 N/A 121 155 Non-Temporal Low 29 32 54 110 N/A 148 179 3.1 KHz Temporal High 39 41 54 135 N/A 172 209 3.1 KHz Temporal Low 29 32 54 185 N/A 222 257 3.1 KHz Non-Temporal High 42 43 54 3.1 KHz Non-Temporal Low 28 29 54 |
|---|
| Coded | High 43 47 54 3.1 KHz Coded High 42 43 54 8–17.5 Volts 16–33 Volts |
|---|
| DC Input | 15cd 30cd 15cd 30cd 75cd 95cd 110cd 135cd 185cd |
|---|
| Temporal High | 98 158 54 74 121 142 162 196 245 |
|---|
| Temporal Low | 93 154 44 65 111 133 157 184 235 |
|---|
| Non-Temporal High | 106 166 73 94 139 160 182 211 262 |
|---|
| Non-Temportal Low | 93 156 51 71 119 139 162 190 239 16–33 Volts |
|---|
| FWR Input | 15cd 30cd 75cd 95cd 110cd 135cd 185cd |
|---|
| Switch | Volts Volts |
|---|
| Position | Sound Pattern dB DC DC FWR AVDS865-04 • 11/17/2017 • Page 3 1.91" 3.46" 3.46" 48.5 mm 88 mm 1.25" 3.57" 1.55" 88 mm 1.25" 32 mm (9.1 cm) (3.9 cm) 32 mm 5.27" 5.38" 133.9 mm |
|---|
| A0548-00 | A0547-00 A0557-00 |
|---|
| Compact Strobe, Horn Strobe | Compact Horn Compact Wall Surface Mount Back Box SBBGRL, SBBGWL 4.70" (11.94 cm) 1.91" 4.7" 1.25" (4.85 cm) 4.82" 119 mm 32 mm 1.85" (12.24 cm) 1.25" (4.69 cm) (3.18 mm) 5.78" 5.67" 5.67" (14.68 cm) A0554-01 |
|---|
| A0550-00 | A0549-00 |
|---|
| Strobe, Horn Strobe | Horn Wall Surface Mount Back Box SBBRL/SBBWL |
|---|

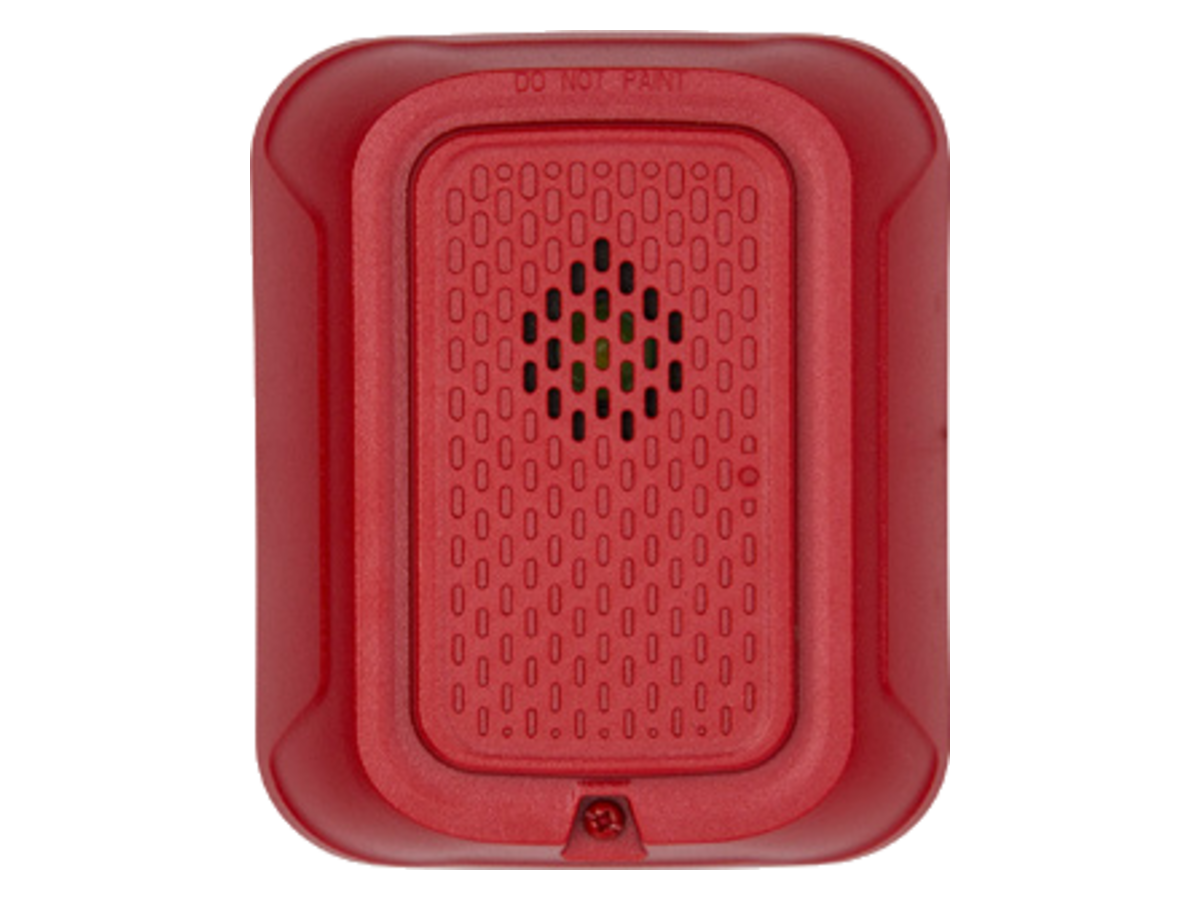

| Wall Horn Strobes | Horns |
|---|
| P2RL | 2-Wire, Horn Strobe, Red HRL Horn, Red |
|---|
| P2WL | 2-Wire, Horn Strobe, White HWL Horn, White |
|---|
| P2GRL | 2-Wire, Compact Horn Strobe, Red HGRL Compact Horn, Red |
|---|
| P2GWL | 2-Wire, Compact Horn Strobe, White HGWL Compact Horn, White |
|---|
| P2RL-P | 2-Wire, Horn Strobe, Red, Plain Accessories |
|---|
| P2WL-P | 2-Wire, Horn Strobe, White, Plain TR-2 Universal Wall Trim Ring Red |
|---|
| P2RL-SP | 2-Wire, Horn Strobe, Red, FUEGO TR-2W Universal Wall Trim Ring White |
|---|
| P2WL-SP | 2-Wire, Horn Strobe, White, FUEGO SBBRL Wall Surface Mount Back Box, Red |
|---|
| P4RL | 4-Wire, Horn Strobe, Red SBBWL Wall Surface Mount Back Box, White |
|---|
| P4RW | 4-Wire, Horn Strobe, White SBBGRL Compact Wall Surface Mount Back Box, Red |
|---|
| Wall Strobes | SBBGWL Compact Wall Surface Mount Back Box, White |
|---|
| SRL | Strobe, Red |
|---|
| SWL | Strobe, White |
|---|
| SGRL | Compact Strobe, Red |
|---|
| SGWL | Compact Strobe, White |
|---|
| SRL-P | Strobe, Red, Plain |
|---|
| SWL-P | Strobe, White, Plain |
|---|
| SRL-SP | Strobe, Red, FUEGO |
|---|
| SWL-CLR-ALERT Strobe, White, ALERT | Notes: All -P models have a plain housing (no “FIRE” marking on cover) All -SP models have “FUEGO” marking on cover All -ALERT models have “ALERT” marking on cover 3825 Ohio Avenue • St. Charles, IL 60174 ©2017 System Sensor. |
|---|
| Phone: 800-SENSOR2 • Fax: 630-377-6495 | Product specifications subject to change without notice. Visit systemsensor.com for current product information, including the latest version of this data sheet. |
|---|
| www.systemsensor.com | AVDS865-04 • 11/17/2017 |
|---|
