| sq. m coverage through one pipe. | • One and four pipe models for different applications. • Flair detection technology delivers reliable very early warning in a • Multi stage filtration and optical protection with clean air barriers |
|---|
| operate in FlashScan® mode only. | protection for the widest range of applications. tem diagnostics. |
|---|
| or reset airflow baselines. | • AutoLearn™ smoke for reliable and rapid commissioning. • Referencing to accommodate external environmental conditions to minimize nuisance alarms. |
|---|
| the environment. | maintenance. • Ethernet for connectivity with Xtralis software for configuration, |
|---|
| CONNECTIVITY AND CONFIGURATION | secondary monitoring and maintenance. • Field replaceable sub-assemblies enable faster service and max- imum uptime. |
|---|
| BACKWARD COMPATIBILITY | FLASHSCAN CAPABILITIES |
|---|
| VESDA VLP. | • Uses 5 detector SLC addresses. Sensitivity for all event thresh- olds are programmed with the VSC or VSM applications. DOC-02-184 | Rev B | 20 Oct 20 — Page 1 of 4 |
|---|
| • Detector trouble reporting at panel. | ONYX AFP-3030/NCA-2 CAPABILITIES Intelligent VESDA-E VEP or VEU Series detectors on the same • Put Intelligent VESDA-E VEP detectors into Service Mode, shut- |
|---|
| SLC loop. | ting the device down for maintenance. • Reset airflow baselines for an Intelligent VESDA-E VEP detector. |
|---|
| One Pipe VEP | Four Pipe VEP |
|---|
| Supply voltage | 18-30 VDC (24 V Nominal) |
|---|
| Device current consumption @ 24 VDC | VEP-A00-1P-NTF VEP-A00-P-NTF VEP-A10-P-NTF |
|---|
| Aspirator setting | Fixed 1 5 1 5 |
|---|
| Normal Operation1 | 360mA 290mA 370mA 330mA 410mA |
|---|
| In alarm1 | 390mA 320mA 400mA 360mA 440mA SLC current consumption |
|---|
| Normal Operation | 8mA 8mA 8mA 8mA 8mA |
|---|
| In alarm | 8mA 8mA 8mA 8mA 8mA |
|---|

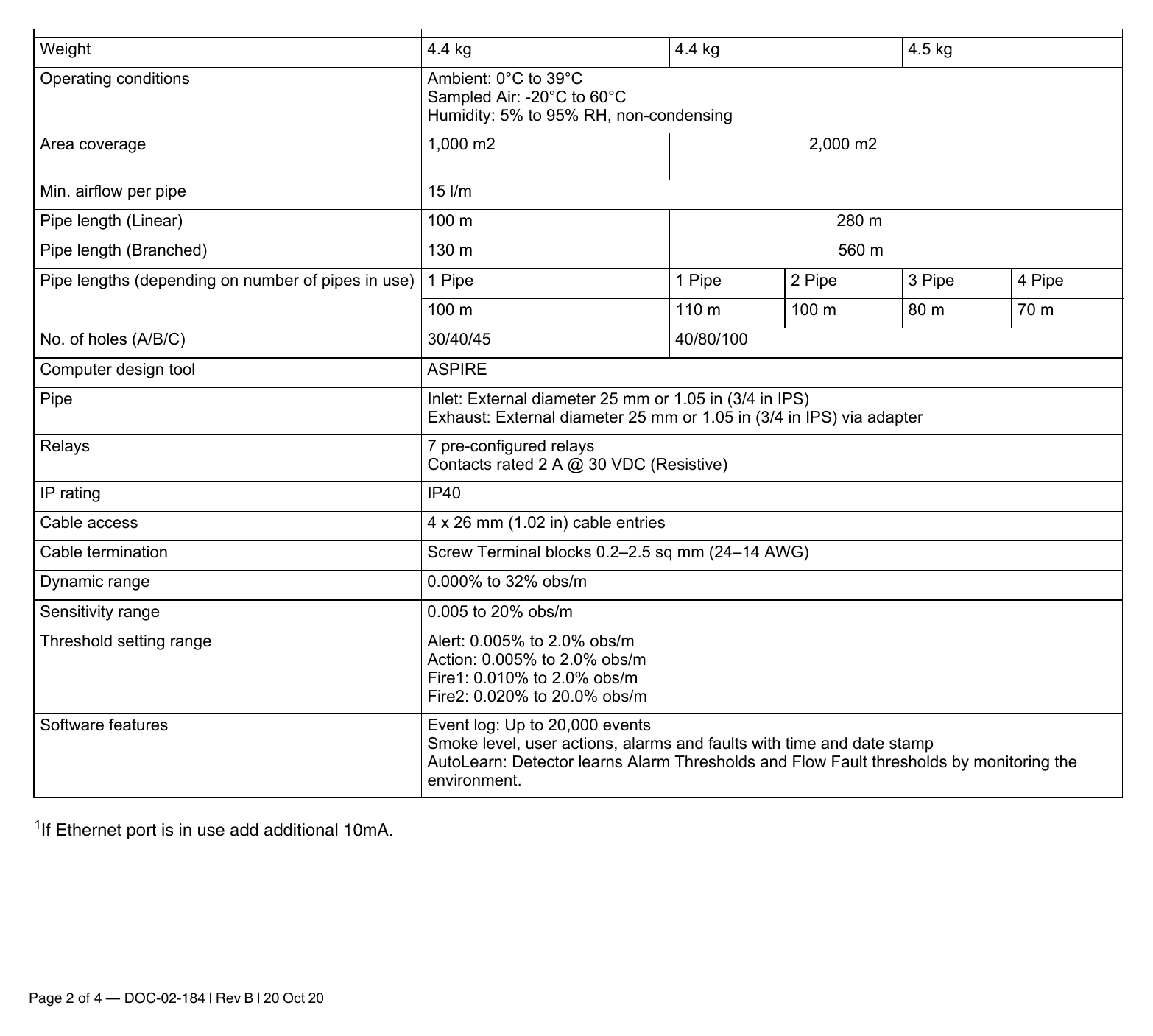

| Dimensions (WHD): | 350 mm x 225 mm x 135 mm |
|---|
| 重量 | 4.4 kg 4.4 kg 4.5 kg |
|---|
| Operating conditions | Ambient: 0°C to 39°C Sampled Air: -20°C to 60°C Humidity: 5% to 95% RH, non-condensing |
|---|
| Area coverage | 1,000 m2 2,000 m2 |
|---|
| Min. airflow per pipe | 15 l/m |
|---|
| Pipe length (Linear) | 100 m 280 m |
|---|
| Pipe length (Branched) | 130 m 560 m Pipe lengths (depending on number of pipes in use) 1 Pipe 1 Pipe 2 Pipe 3 Pipe 4 Pipe 100 m 110 m 100 m 80 m 70 m |
|---|
| No. of holes (A/B/C) | 30/40/45 40/80/100 |
|---|
| Computer design tool | ASPIRE |
|---|
| Pipe | Inlet: External diameter 25 mm or 1.05 in (3/4 in IPS) Exhaust: External diameter 25 mm or 1.05 in (3/4 in IPS) via adapter |
|---|
| Relays | 7 pre-configured relays Contacts rated 2 A @ 30 VDC (Resistive) |
|---|
| IP rating | IP40 |
|---|
| Cable access | 4 x 26 mm (1.02 in) cable entries |
|---|
| Cable termination | Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG) |
|---|
| Dynamic range | 0.000% to 32% obs/m |
|---|
| Sensitivity range | 0.005 to 20% obs/m |
|---|
| Threshold setting range | Alert: 0.005% to 2.0% obs/m Action: 0.005% to 2.0% obs/m Fire1: 0.010% to 2.0% obs/m Fire2: 0.020% to 20.0% obs/m |
|---|
| Software features | Event log: Up to 20,000 events Smoke level, user actions, alarms and faults with time and date stamp AutoLearn: Detector learns Alarm Thresholds and Flow Fault thresholds by monitoring the environment. If Ethernet port is in use add additional 10mA. |
|---|
| Symbol | LED Fire 2 Fire 1 Action Alert Disabled Fault |
|---|
| Agency Listings and Approvals | Power |
|---|
| CSFM: 7259-1728-0502. | Detector OK Aspirator Fault Airflow Fault Power Fault Filter Fault Smoke Chamber Fault Communication Fault StaX Module Fault DOC-02-184 | Rev B | 20 Oct 20 — Page 3 of 4 Phone (New Zealand): 800 220 345 (Toll free) |
|---|
| www.notifier.com.au | ISO9001 FS 520324 |
|---|
| © 2020 Honeywell International Inc. | www.notifier.co.nz ENGINEERING & MANUFACTURING QUALITY SYSTEMS |
|---|
| Country of Origin: Malaysia | DOC-02-184 | 20 Oct 20 | Rev. B |
|---|
