| and maintain full protection of the area. | stick of the Intelligent VESDA-E VES Series, providing better detection, |
|---|
| Features | fewer nuisance alarms, higher stability, increased longevity and par- ticle characterization. Direct imaging of the sampled particles using a CMOS imager combined with multiple photo-diodes allow vastly |
|---|
| • Adaptive scan threshold | more data about the observed particles. The Intelligent VESDA-E a wide range of environments with minimal nuisance alarms with a powerful aspirator that provides a total pipe length of 560 m |
|---|
| ensures lifetime detection performance | Two models are available, a VES-A00-P-NTF-UL Intelligent aspira- automatically assume the same values that are set in sector 1) aspiration smoke detector with a LED and LCD display. The VES and a wide sensitivity range deliver optimum protection for the display home page has a bar graph to indicate the smoke level and |
|---|
| widest range of applications | adaptive scan threshold. Fault icons are also included to indicate various fault conditions. When the adaptive scan threshold is |
|---|
| diate response | status page to indicate the smoke level and alarm level per sector. If |
|---|
| ditions | retained until Reset is applied. The VES display can only return to |
|---|
| predictable maintenance | coverage to protect up to 21,520 sq.ft (2,000 sq.m) subject to sys- tem design and local regulatory requirements. tem diagnostics DN-62040:A • 11/11/2021 — Page 1 of 4 |
|---|
| FlashScan® mode only. | The file number(s) below reference the specific listings for the modules in this document. In some cases, certain modules or |
|---|
| reset airflow baselines. | These listings and approvals below apply to the VESDA-E VES. In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in process. Consult fac- tory for latest listing status. |
|---|
| environment. | UL 268 7th ed. Product Line Information modes with four alarm levels. Day/Night/Weekend mode enables technicians to configure alarm thresholds based on routine changes in the environment. naling Line Circuit (SLC) loop of NFS-320, NFS2-640, and NFS2- 3030. For these detectors, panel firmware version 25 or higher is required. Mode, shutting the device down for maintenance. detector. VES. |
|---|
| Symbol | LED Fire 2 Fire 1 Action Alert |
|---|
| Home Page | Sector Status Page Disabled Acknowledge to stop the buzzer. Fault Power Smoke and Alarm Threshold Levels Detector OK Detector Fault Aspirator Fault Airflow Fault Power Fault Filter Fault Smoke Chamber Fault Communication Fault StaX Module Fault DN-62040:A • 11/11/2021 — Page 3 of 4 |
|---|

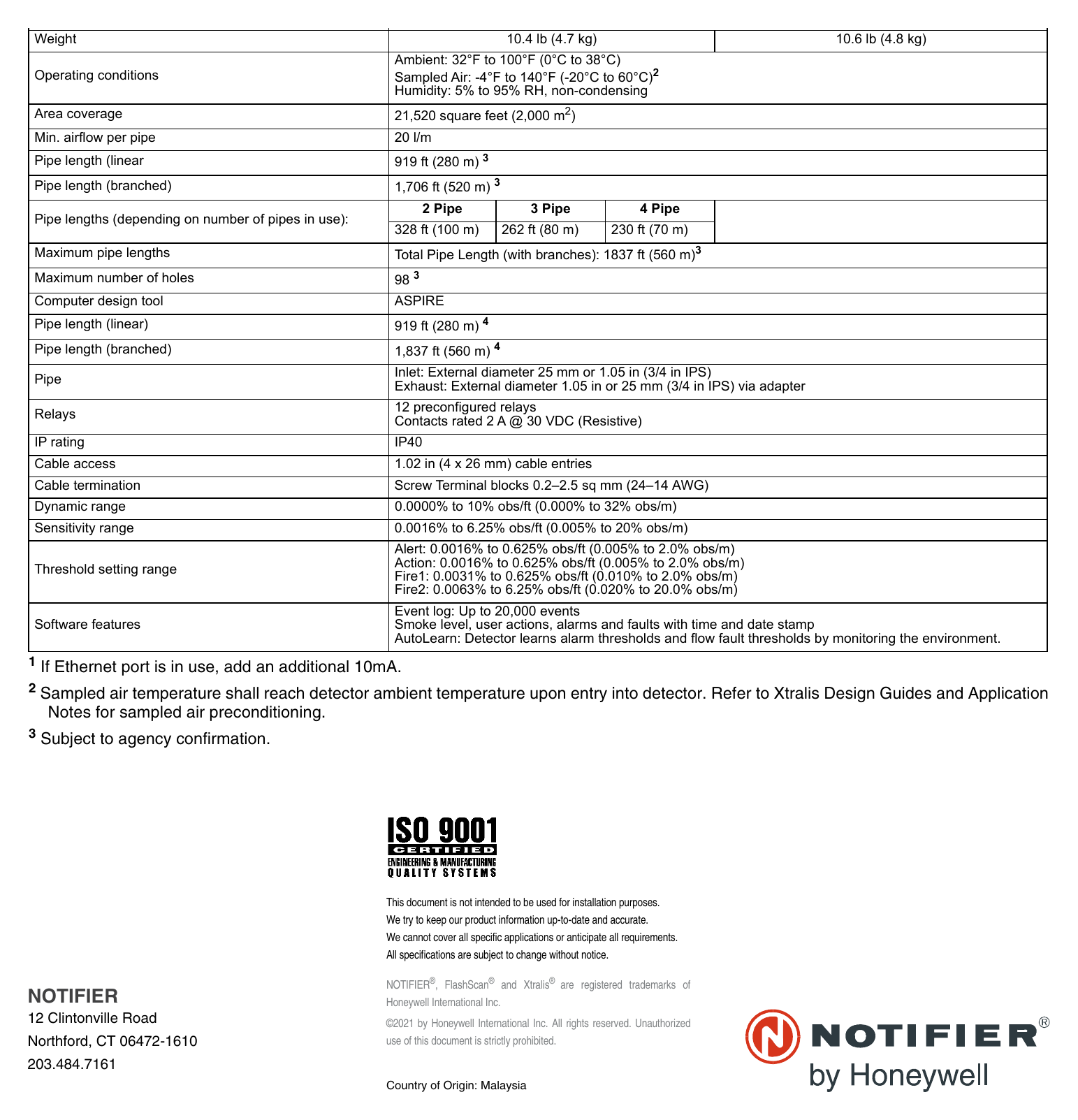

| Supply voltage | 18-30 VDC (24 V Nominal) |
|---|
| VES-A00-P-NTF-UL | VES-A10-P-NTF-UL Maximum current consumption |
|---|
| - Normal Operation: | 0.79 A 0.83 A |
|---|
| - In Alarm | 0.83 A 0.86 A |
|---|
| - Peak Current: | 1.5 A 1.5 A Detector current consumption @ 24 VDC: |
|---|
| - Aspirator setting | 1 5 10 1 5 10 |
|---|
| - Normal operation1 | 0.28 A 0.35 A 0.58 A 0.30 A 0.38 A 0.61 A |
|---|
| - In alarm1 | 0.32 A 0.40 A 0.63 A 0.34 A 0.42 A 0.65 A |
|---|
| SLC current consumption: | Current drawn from SLC loop: 0.008 A |
|---|
| Dimensions (WHD) | 13.8 in x 8.9 in x 5.3 in (350 mm x 225 mm x 135 mm) |
|---|
| 重量 | 10.4 lb (4.7 kg) 10.6 lb (4.8 kg) Ambient: 32°F to 100°F (0°C to 38°C) |
|---|
| Operating conditions | Sampled Air: -4°F to 140°F (-20°C to 60°C)2 Humidity: 5% to 95% RH, non-condensing |
|---|
| Area coverage | 21,520 square feet (2,000 m2) |
|---|
| Min. airflow per pipe | 20 l/m |
|---|
| Pipe length (linear | 919 ft (280 m) 3 |
|---|
| Pipe length (branched) | 1,706 ft (520 m) 3 2 Pipe 3 Pipe 4 Pipe Pipe lengths (depending on number of pipes in use): 328 ft (100 m) 262 ft (80 m) 230 ft (70 m) |
|---|
| Maximum pipe lengths | Total Pipe Length (with branches): 1837 ft (560 m)3 |
|---|
| Maximum number of holes | 98 3 |
|---|
| Computer design tool | ASPIRE |
|---|
| Pipe length (linear) | 919 ft (280 m) 4 |
|---|
| Relays | Contacts rated 2 A @ 30 VDC (Resistive) |
|---|
| IP rating | IP40 |
|---|
| Cable access | 1.02 in (4 x 26 mm) cable entries |
|---|
| Cable termination | Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG) |
|---|
| Dynamic range | 0.0000% to 10% obs/ft (0.000% to 32% obs/m) |
|---|
| Sensitivity range | 0.0016% to 6.25% obs/ft (0.005% to 20% obs/m) Alert: 0.0016% to 0.625% obs/ft (0.005% to 2.0% obs/m) Action: 0.0016% to 0.625% obs/ft (0.005% to 2.0% obs/m) Threshold setting range Fire1: 0.0031% to 0.625% obs/ft (0.010% to 2.0% obs/m) Fire2: 0.0063% to 6.25% obs/ft (0.020% to 20.0% obs/m) Event log: Up to 20,000 events |
|---|
| Software features | Smoke level, user actions, alarms and faults with time and date stamp AutoLearn: Detector learns alarm thresholds and flow fault thresholds by monitoring the environment. If Ethernet port is in use, add an additional 10mA. Notes for sampled air preconditioning. This document is not intended to be used for installation purposes. We try to keep our product information up-to-date and accurate. We can |
|---|
