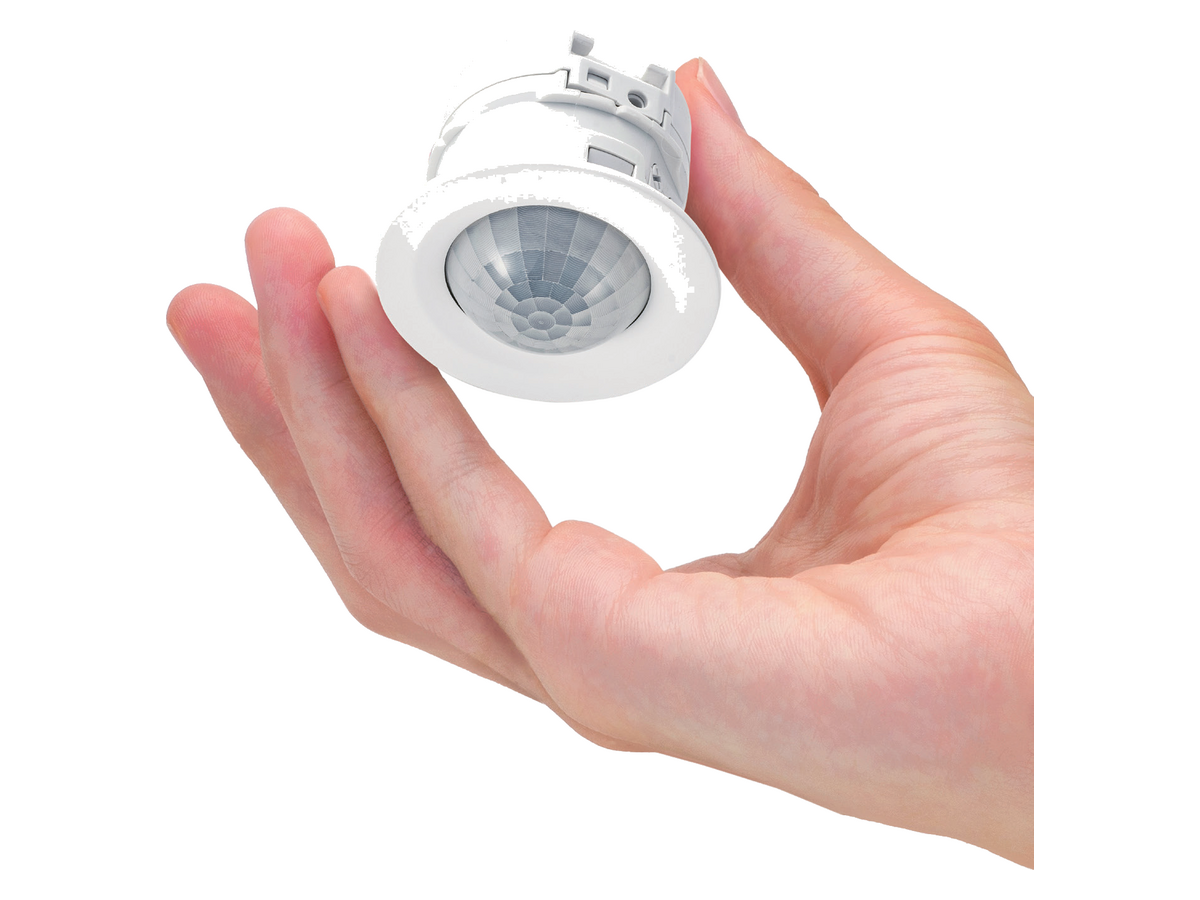

| Detection method | Passive infrared recessed mount on the ceiling. |
|---|
| Detection area | < Ceiling mount > φ6m (20’) at mounting height 4.5 m (14’9”) |
|---|
| Mounting height | 2.5 to 4.5 m (8’2” to 14’9”) |
|---|
| Recessed Mount with | 86-type box Mounting Bezel |
|---|
| Mounting type | Recessed ceiling mount/86-type box mount 86-type box |
|---|
| 靈敏度 | 2.0°C at 0.6 m/s (3.6°F at 2’/s) 86-type box mount is available by |
|---|
| Detection speed | 0.3 to 3.0 m/s (1’/s to 9’10”/s) using the included decorative plate. |
|---|
| LED 指示燈 | Warm-up upon power on: Warm-up upon power on: blinking /Stand-by: off blinking/ Stand-by: off Walk test: solid on Alarm: solid on Alarm: off Approx. 2s / 30s / 120s |
|---|
| Accessories | Mounting Bezel |
|---|
| Alarm period | Approx. 2 s for an 86-type box (selectable) |
|---|
| Illuminance | 20 to 320 lux (variable/not detected) |
|---|
| Battery saving timer | - 120 s/ 5 s selectable Retaining spring x 2 |
|---|
| 警報輸出 | N.O./N.C., 28 V DC 200 mA max. N.O./N.C., 3.6 V DC 10 mA max. Fixing screw Screw cap x 2 N.C. 28 V DC 100 mA max. Tamper switch The contact opens once the casing is detached. Dimensions |
|---|
| Warm-up time | Approx. 60 s Without switch box |
|---|
| 供電 | 9.5 to 16 V DC 2.7 to 3.6 V DC (CR123A battery) 102 (4.02) |
|---|
| Current | 12 V DC 3 V DC ø52 (2.05) 42.5 (1.67) |
|---|
| Stand-by: 11mA, Max.: 13 mA | Stand-by: 10µA, Max.: 4 mA |
|---|
| PIR sensitivity | H/ M/ L Unit: mm |
|---|
| 重量 | 50 g (1.76 oz) |
|---|
| Operation temperature | -20 to +50°C (-4°F to +122°F) |
|---|
| Operation humidity | < 95% Web |
|---|
| Location | Indoors Based |
|---|

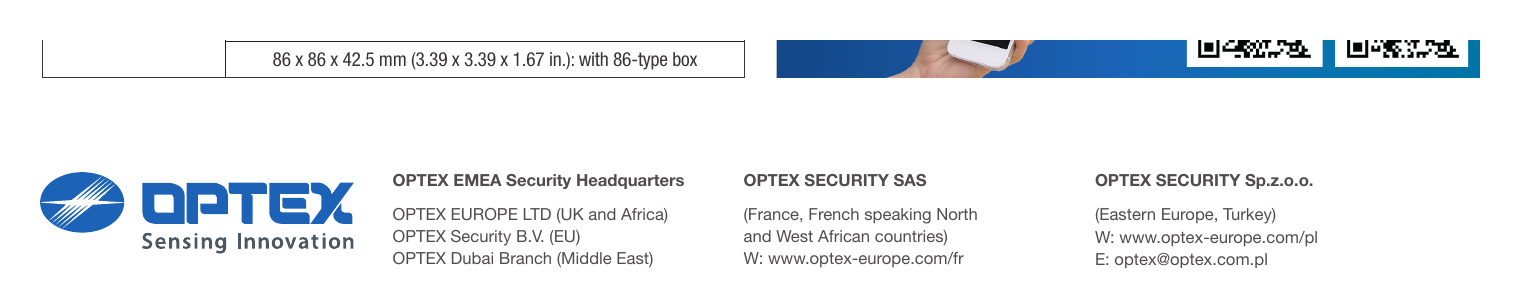

| 尺寸 | ø52 x 42.5 mm (ø2.05 in. x 1.67 in.): without switch box Manual 86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.): with 86-type box |
|---|
