| Maximum detection range | 100 m/350 ft. Keep birds and small animals off the |
|---|
| Maximum arrival distance | 1000 m/3500 ft. detector to reduce false alarms. |
|---|
| Detection method | Quad infrared beam interruption detection Stop rain and snow streaming in front |
|---|
| Selectable beam frequency | 4 channels − of the detector to keep the |
|---|
| Interruption time | Variable between 50/100/250/500 ms (4 steps) sensitivity. |
|---|
| Recommend: 3.6 V, 13.0Ah | BATTERY OPERATED PHOTOELECTRIC DETECTOR LSH20 lithium batteries manufactured by SAFT Work Smart, |
|---|
| Power source | Operating range: 3.2 V - 4.0 V lithium batteries Transmitter: 2 or 4 units, Receiver: 2 or 4 units 745µA Current draw Transmitter: 420 µA + Receiver: 325 µA (at 25°C, 3.6 VDC) Transmitter: Approx. 4 years "ENJOY WIRELESS " Battery life * |
|---|
| ** | Receiver: Approx. 5 years |
|---|
| 警報輸出 | Form C-Solid State Switch: 3.6 VDC, 0.01 A |
|---|
| Alarm period | 2 sec (±1) (Nominal) Form C-Solid State Switch: 3.6 VDC, 0.01 A 4ch. beam frequencies selectable model D.Q output (Receiver only) |
|---|
| Output | Low battery output |
|---|
| N.C. (mechanical switch): 3.6 VDC, 0.01 A | Back Cover BC-4 Pole Side Cover PSC-4 - LONG DISTANCE : 100m / 350ft. - Tamper output (cover, back box, N.C. (contact output): 3.6 VDC, 0.01 A Conceal the back side of pole mounted detector. Conceal the gap between detectors mounted back to back. - LONG BATTERY LIFE : 4 to 10 years - Opens when cover, main unit or back box is removed. main unit) Patent |
|---|
| pending | - LONG TERM DURABILITY : IP65 - Standard model |
|---|
| Alarm indicator | Alarm: ON (Receiver) Light receiving: OFF |
|---|
| Level indicator | Not Light receiving: OFF |
|---|
| 指示燈 | (Receiver) Light receiving: Flickering or OFF |
|---|
| Power indicator | Power ON: ON (Transmitter) Power OFF: OFF |
|---|
| Low battery indicator | Voltage reduction: Flickering |
|---|
| 工作溫度 | -20°C - +60°C (-40°F - 140°F) |
|---|
| 工作濕度 | 95 % (max.) |
|---|
| Alignment angle | ±90° Horizontal, ±10° Vertical |
|---|

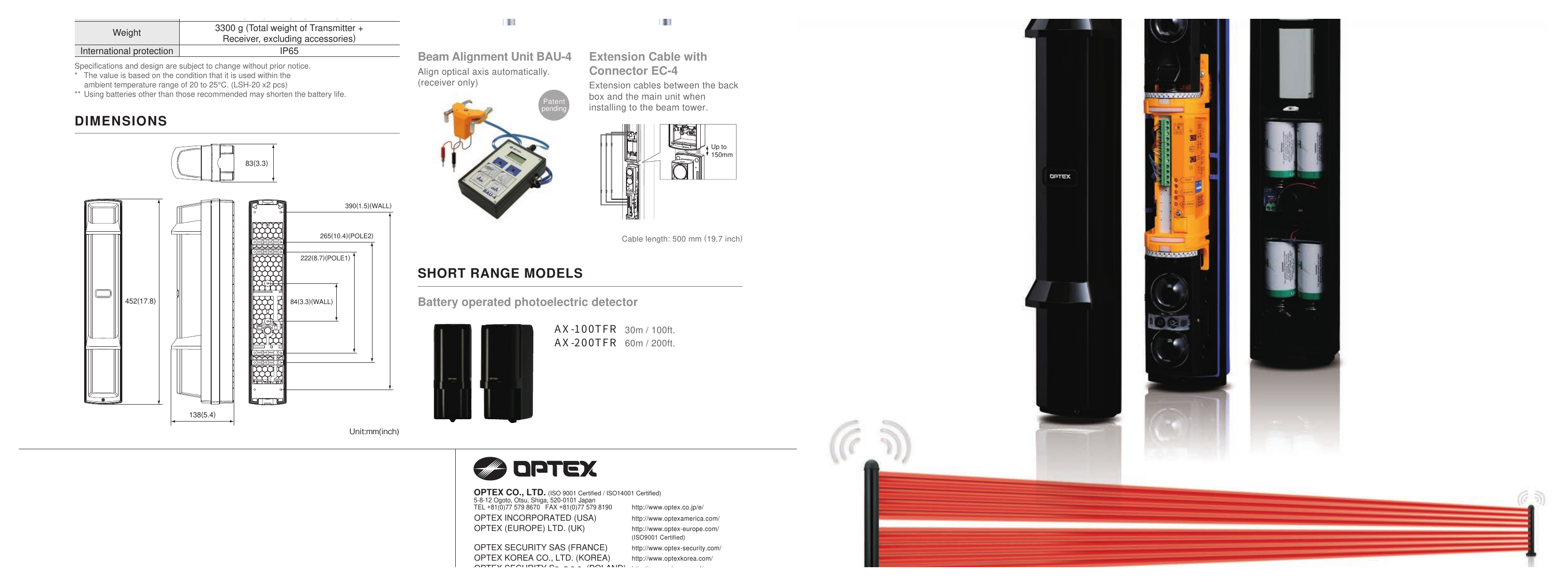

| 尺寸 | H x W x D mm(inch): 452 (17.9) x 83 (3.3) x 138 (5.4) |
|---|
| 重量 | 3300 g (Total weight of Transmitter + Receiver, excluding accessories) |
|---|
| International protection | IP65 |
|---|
| Beam Alignment Unit BAU-4 | Extension Cable with ambient temperature range of 20 to 25°C. (LSH-20 x2 pcs) (receiver only) Extension cables between the back Patent |
|---|
