| T1500G-8T | T1500G-10PS T1500-28PCT (TL-SG2008) (TL-SG2210P) (TL-SL2428P) 24 10/100Mbps RJ45 Ports, 8 10/100/1000Mbps 8 10/100/1000Mbps RJ45 Ports |
|---|
| General | Interfaces 4 10/100/1000Mbps RJ45 Ports, |
|---|
| RJ45 Ports | 2 Gigabit SFP Slots 2 Combo Gigabit SFP Slots |
|---|
| PoE 標準 | 802.3af 802.3af/at 802.3af |
|---|
| PoE | PoE Ports / 8, up to 15.4W 8, up to 30W 24, up to 30W |
|---|
| PoE 功率預算 | 53W 116W 192W Switching 16Gbps 20Gbps 12.8Gbps Packet 11.84Mpps 14.88Mpps 9.52Mpps Forwarding Rate Performance MAC Address Table 4.1Mbit |
|---|
| Jumbo Frame | 9KB |
|---|
| 供電 | 100-240V AC, 50/60Hz 9.92W (220V/50Hz) 15.61W (220V/50Hz) 21.7W (220V/50Hz) |
|---|
| Max Power | (no PD connected) (no PD connected) (no PD connected) 5.75W (220V/50Hz) |
|---|
| 功耗 | 64.89W (110V/60Hz) 139.52W (220V/50Hz) 229.73W (110V/60Hz) (with 53W PD connected) (with 116W PD connected) (with 192W PD connected) 33.85 BTU/h 53.26 BTU/h 74.04 BTU/h |
|---|
| Max Heat | (no PD connected) (no PD connected) (no PD connected) 19.62 BTU/h |
|---|
| Dissipation | 221.40 BTU/h 476.04 BTU/h 783.84 BTU/h (with 53W PD connected) (with 116W PD connected) (with 192W PD connected) |
|---|
| 尺寸 | 209mm*126mm 209mm*126mm 294mm*180mm 440mm*180mm |
|---|
| Physical & | (W × D × H) *26mm *26mm *44mm *44mm |
|---|
| Environment | Fan Quantity Fanless Fanless 1 2 Operating 0°C to 40°C (32°F to 104°F) Temperature Storage -40°C to 70°C (-40°F to 158°F) Temperature Operating 10% to 90% RH, non-condensing Humidity Storage 5% to 90% RH, non-condensing Humidity CE, FCC |
|---|

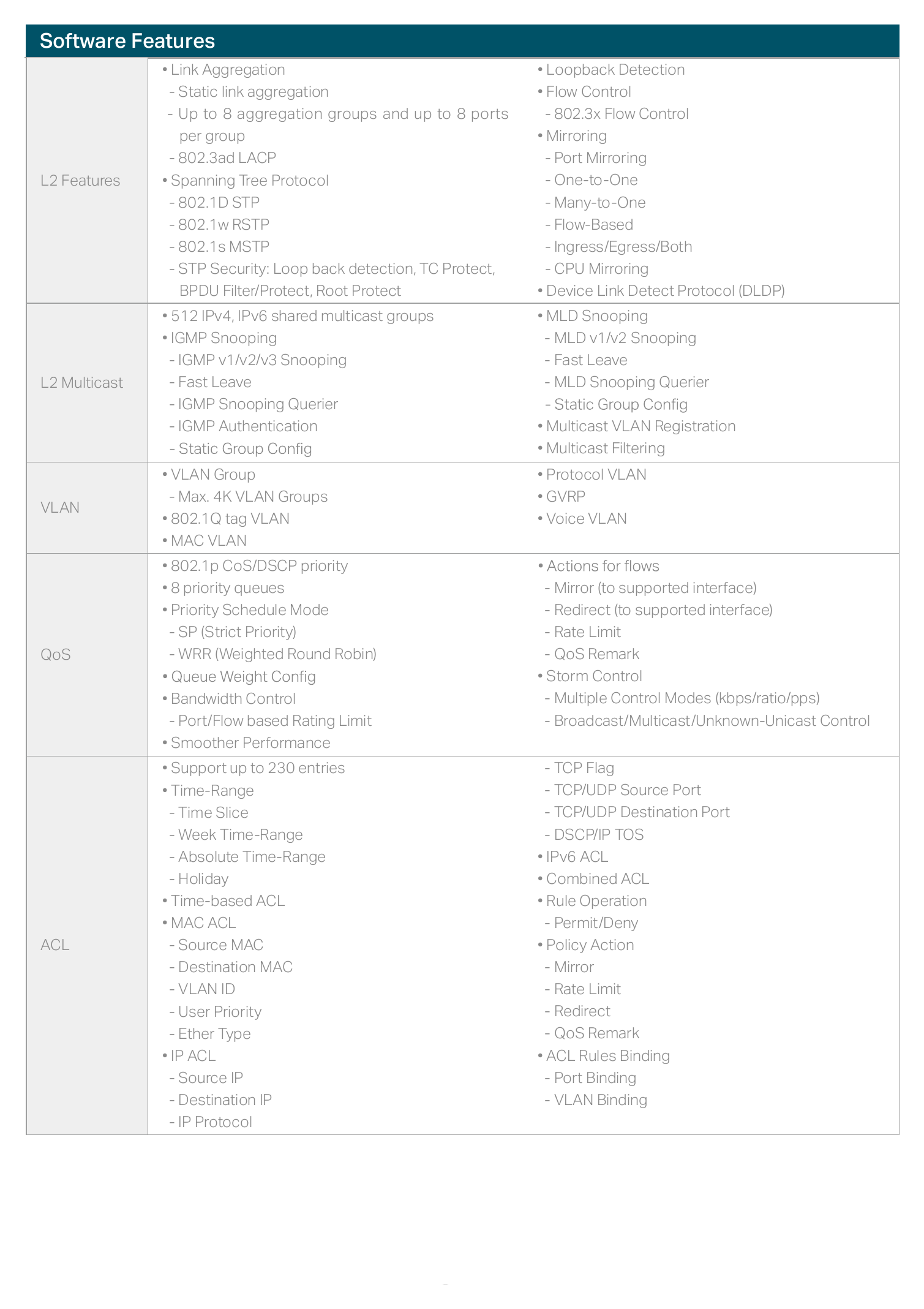

| • Link Aggregation | • Loopback Detection |
|---|
| - Static link aggregation | • Flow Control - Up to 8 aggregation groups and up to 8 ports - 802.3x Flow Control |
|---|
| per group | • Mirroring |
|---|
| - 802.3ad LACP | - Port Mirroring |
|---|
| L2 Features | • Spanning Tree Protocol - One-to-One |
|---|
| - 802.1D STP | - Many-to-One |
|---|
| - 802.1w RSTP | - Flow-Based |
|---|
| - 802.1s MSTP | - Ingress/Egress/Both - STP Security: Loop back detection, TC Protect, - CPU Mirroring |
|---|
| BPDU Filter/Protect, Root Protect | • Device Link Detect Protocol (DLDP) |
|---|
| • 512 IPv4, IPv6 shared multicast groups | • MLD Snooping |
|---|
| • IGMP Snooping | - MLD v1/v2 Snooping |
|---|
| - IGMP v1/v2/v3 Snooping | - Fast Leave |
|---|
| L2 Multicast | - Fast Leave - MLD Snooping Querier - IGMP Snooping Querier |
|---|
| - IGMP Authentication | • Multicast VLAN Registration • Multicast Filtering |
|---|
| • VLAN Group | • Protocol VLAN |
|---|
| - Max. 4K VLAN Groups | • GVRP |
|---|
| • 802.1Q tag VLAN | • Voice VLAN • MAC VLAN • 802.1p CoS/DSCP priority |
|---|
| • 8 priority queues | - Mirror (to supported interface) |
|---|
| • Priority Schedule Mode | - Redirect (to supported interface) |
|---|
| - SP (Strict Priority) | - Rate Limit |
|---|
| QoS | - WRR (Weighted Round Robin) - QoS Remark • Storm Control |
|---|
| • Bandwidth Control | - Multiple Control Modes (kbps/ratio/pps) |
|---|
| - Port/Flow based Rating Limit | - Broadcast/Multicast/Unknown-Unicast Control • Smoother Performance |
|---|
| • Support up to 230 entries | - TCP Flag |
|---|
| • Time-Range | - TCP/UDP Source Port |
|---|
| - Time Slice | - TCP/UDP Destination Port |
|---|
| - Week Time-Range | - DSCP/IP TOS |
|---|
| - Absolute Time-Range | • IPv6 ACL |
|---|
| - Holiday | • Combined ACL |
|---|
| • Time-based ACL | • Rule Operation |
|---|
| • MAC ACL | - Permit/Deny |
|---|
| ACL | - Source MAC • Policy Action |
|---|
| - Destination MAC | - Mirror |
|---|
| - VLAN ID | - Rate Limit |
|---|
| - User Priority | - Redirect |
|---|
| - Ether Type | - QoS Remark |
|---|
| • IP ACL | • ACL Rules Binding |
|---|
| - Source IP | - Port Binding |
|---|
| - Destination IP | - VLAN Binding - IP Protocol |
|---|
| • AAA | - 253 Entries |
|---|
| • 802.1X | - Source IP+Source MAC |
|---|
| - Port based authentication | • IPv6 Source Guard |
|---|
| - MAC (Host) based authentication | - 183 Entries - Authentication Method includes PAP/EAP-MD5/ - Source IPv6 Address+Source MAC |
|---|
| EAP-TLS/EAP-TTLS/EAP-PEAP | • DoS Defend |
|---|
| - MAB | • Static/Dynamic/Permanent Port Security |
|---|
| - Guest VLAN | - Up to 64 MAC addresses per port Security - Support Radius authentication and accountability • Broadcast/Multicast/Unicast Storm Control |
|---|
| • IP/IPv6-MAC Binding | - kbps/ratio/pps control mode |
|---|
| - 512 Binding Entries | • Port Isolation |
|---|
| - DHCP Snooping | • Secure web management through HTTPS with |
|---|
| - DHCPv6 Snooping | SSLv3/TLS1.0 |
|---|
| - ARP Inspection | • Secure Command Line Interface (CLI) |
|---|
| - ND Detection | management with SSHv1/SSHv2 |
|---|
| • IP Source Guard | • IP/Port/MAC based access control |
|---|
| • IPv6 Dual IPv4/IPv6 | - Ping6 • Multicast Listener Discovery (MLD) Snooping - Tracert6 |
|---|
| • IPv6 neighbor discovery (ND) | - Telnet (v6) • Path maximum transmission unit (MTU) discovery - IPv6 SNMP IPv6 Support • Internet Control Message Protocol (ICMP) version 6 - IPv6 SSH |
|---|
| • TCPv6/UDPv6 | - IPv6 SSL |
|---|
| • IPv6 applications | - Http/Https |
|---|
| - DHCPv6 Client | - IPv6 TFTP |
|---|
| • Web-based GUI | • DHCP/BOOTP Client • Command Line Interface (CLI) through telnet |
|---|
| • SNMPv1/v2c/v3 | • CPU Monitoring |
|---|
| Management | • SNMP Trap/Inform • Cable Diagnostics |
|---|
| • RMON (1,2,3,9 groups) | • EEE |
|---|
| • SDM Template | • System Log • 802.1ab LLDP/ LLDP-MED |
|---|
| • MIB II (RFC1213) | • RMON2 MIB (RFC2021) |
|---|
| • Interface MIB (RFC2233) | • Radius Accounting Client MIB (RFC2620) |
|---|
| • Ethernet Interface MIB (RFC1643) | • Radius Authentication Client MIB (RFC2618) MIBs |
|---|
| • Bridge MIB (RFC1493) | • Remote Ping, Traceroute MIB (RFC2925) |
|---|
| • P/Q-Bridge MIB (RFC2674) | • Support TP-Link private MIBs • RMON MIB (RFC2819) |
|---|
