Uniview IPC2B12SS-ADF28K-I1 為IPC2B12SS-ADF28(40)K-I1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC2B12SS-ADF28K-I1 香港價格連安裝報價。
| Max Resolution | 2 MP |
|---|---|
| Sensor | 1/2.8" CMOS |
| 最低照度 | Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 130 dB |
| 焦距 | 2.8 mm 4.0 mm |
| 光圈類型 | Fixed |
| Iris | F1.6 |
| Field of View (H) | 100.15° 87.5° |
| Field of View (V) | 54.5° 46.3° |
| Field of View (D) | 104.92° 92.4° |
| DORI Distance (Lens) | 2.8 mm 4 mm |
| DORI Distance (Detect) | 43.4 m (142.4 ft.) 62.1 m (203.7 ft.) |
| DORI Distance (Observe) | 17.4 m (57.1 ft.) 24.8 m (81.4 ft.) |
| DORI Distance (Recognize) | 8.7 m (28.5 ft.) 12.4 m (40.7 ft.) |
| DORI Distance (Identify) | 4.3 m (14.1 ft.) 6.2 m (20.3 ft.) |
| Supplemental Light | IR |
| Illumination Distance (IR) | 80 m (262.5 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile Main Stream: 1080P (1920 × 1080), max. 60 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; |
| Frame Rate | 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps;CIF (352 × 288), max. 30 fps; |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| 隱私遮蔽 | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
| Auto Scene Match (ASM) | Support (only WDR) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| 除霧 | Digital defog Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Statistical Analysis | N/A |
| People Counting | Support people flow counting and crowd density detection |
| Attribute Collection | SIP with color retrieval Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| 音訊壓縮 | G.711U, G.711A, AAC-LC |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| 用戶管理 | Up to 32 users. 3 user levels: administrator, common user and operator Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, APP Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | N/A CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) CE-LVD (EN 62368-1) |
| Safety | CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| 防護等級 | IP67 (IEC 60529) |
| 供電 | DC 12 V±25%, PoE (IEEE 802.3af) |
| 功耗 | Max. 10.0 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | 269 mm × 96 mm × 82 mm (10.6" × 3.8" × 3.2") (L × W × H) |
| 重量 | 0.84 kg (1.85 lb.) |
| 材質 | Metal + Plastic |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 4 KV |
| Reset Button | Support 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| TR-JB07-D-IN-V2 | TR-JB06-A-IN TR-UP06-B-IN Bullet Junction Box(Support wiring from |
| Middle Bullet Junction Box(Elegant White) | Bullet Pole Mounting Bracket behind) |
| TR-A01-IN | TR-UP06-C-IN-V2 TR-UC08-C-V2 Pole Mounting Bracket for Bullet Junction |
| NPT 3/4'' Waterproof Cable Gland | Bullet&Dome Corner Mounting Bracket Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

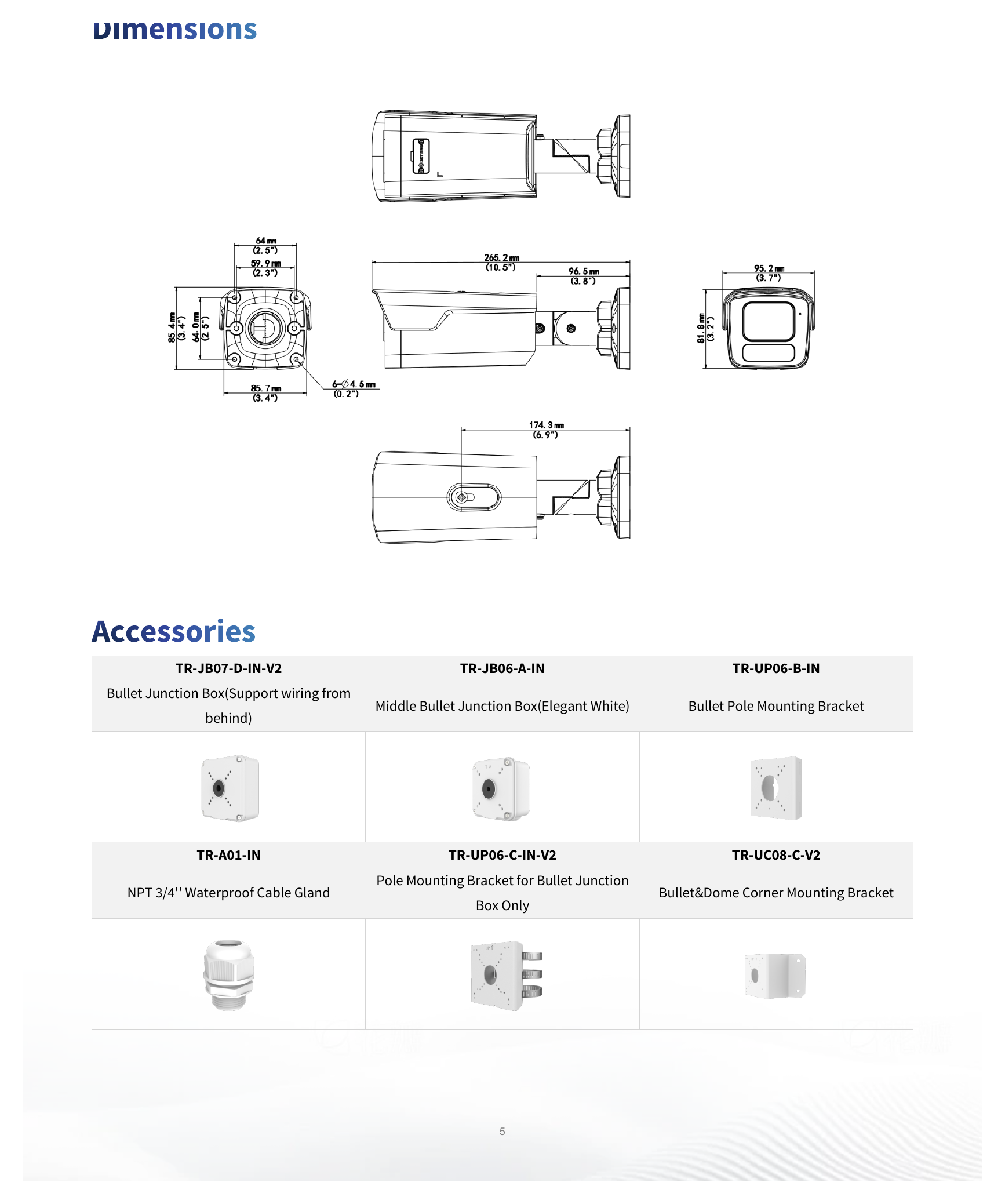

269 mm × 96 mm × 82 mm (10.6" × 3.8" × 3.2") (L × W × H)｜重量 0.84 kg (1.85 lb.)｜Unit: mm
IPC2B12SS-ADF28K-I1 Uniview IPC2B12SS-ADF28(40)K-I1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC2B12SS-ADF28K-I1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC2B12SS-ADF28K-I1 係 1/2.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC2B12SS-ADF28K-I1 係 Auto/Manual, 1 ~ 1/100000s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC2B12SS-ADF28K-I1 係 2.8 mm 4.0 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC2B12SS-ADF28K-I1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC2B12SS-ADF28K-I1 Uniview IPC2B12SS-ADF28(40)K-I1供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：藍田CCTV 閉路電視安裝、觀塘CCTV 閉路電視安裝、銅鑼灣CCTV 閉路電視安裝、鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝、青衣CCTV 閉路電視安裝、香港仔CCTV 閉路電視安裝、黃大仙CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC2B12SS-ADF28K-I1 香港價格連安裝報價。
IPC2B12SS-ADF28K-I1 Uniview IPC2B12SS-ADF28(40)K-I1適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
