| Decoding | Description |
|---|
| 解碼格式 | Ultra 265, H.265, H.264 NVR301-04S3-P4:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 |
|---|
| 解碼能力 | NVR301-08S3-P8:1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| Network | Description |
|---|
| 入口頻寬 | 64Mbps |
|---|
| 出口頻寬 | 48Mbps |
|---|
| Remote Users | 128 |
|---|
| 網絡協議 | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SMTP;RTSP Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
|---|
| Video/Audio Input | Description NVR301-04S3-P4:4-ch NVR301-08S3-P8:8-ch |
|---|
| Video/Audio Output | Description HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|---|
| RCA Audio Output | 1-ch NVR301-04S3-P4:1/4 NVR301-08S3-P8:1/4/6/8/9 NVR301-04S3-P4:3/4 NVR301-08S3-P8:3/4/5/7/9 |
|---|
| Snapshot | Description |
|---|
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution |
|---|
| Recording | Description |
|---|
| 錄影解像度 | 8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF NVR301-04S3-P4:4-ch NVR301-08S3-P8:8-ch |
|---|
| Smart | Description Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD) |
|---|
| VCA Search | ;Behavior Search |
|---|
| Smart by IPC | Total 4-ch(Face Detection, SIP, UMD) |
|---|
| 警報 | Description Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
|---|
| GUI Language | Description 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), |
|---|
| Hard Disk | Description |
|---|
| SATA | 1 SATA Interface Up to 10TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size) |
|---|
| External Interface | Description |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
|---|
| USB | Rear panel: 2 x USB2.0 |
|---|
| RS485 | N/A |
|---|
| RS232 | N/A |
|---|
| Alarm In | N/A |
|---|
| Alarm Out | N/A NVR301-04S3-P4:DC 48V/1.35A Power Supply NVR301-08S3-P8:DC 52V/1.8A |
|---|
| PoE | Description |
|---|
| 接口 | 10M/100M self-adaptive Ethernet Interface NVR301-04S3-P4:Max 30W for single port, Max 54W in total Max Power NVR301-08S3-P8:Max 30W for single port, Max 75W in total |
|---|
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
|---|
| Working Environment | Description |
|---|
| 工作溫度 | -10 °C ~ 55 °C (14 °F ~ 131 °F) |
|---|
| 工作濕度 | ≤ 90% RH (non-condensing) Power Consumption (without HD ≤ 9W |
|---|

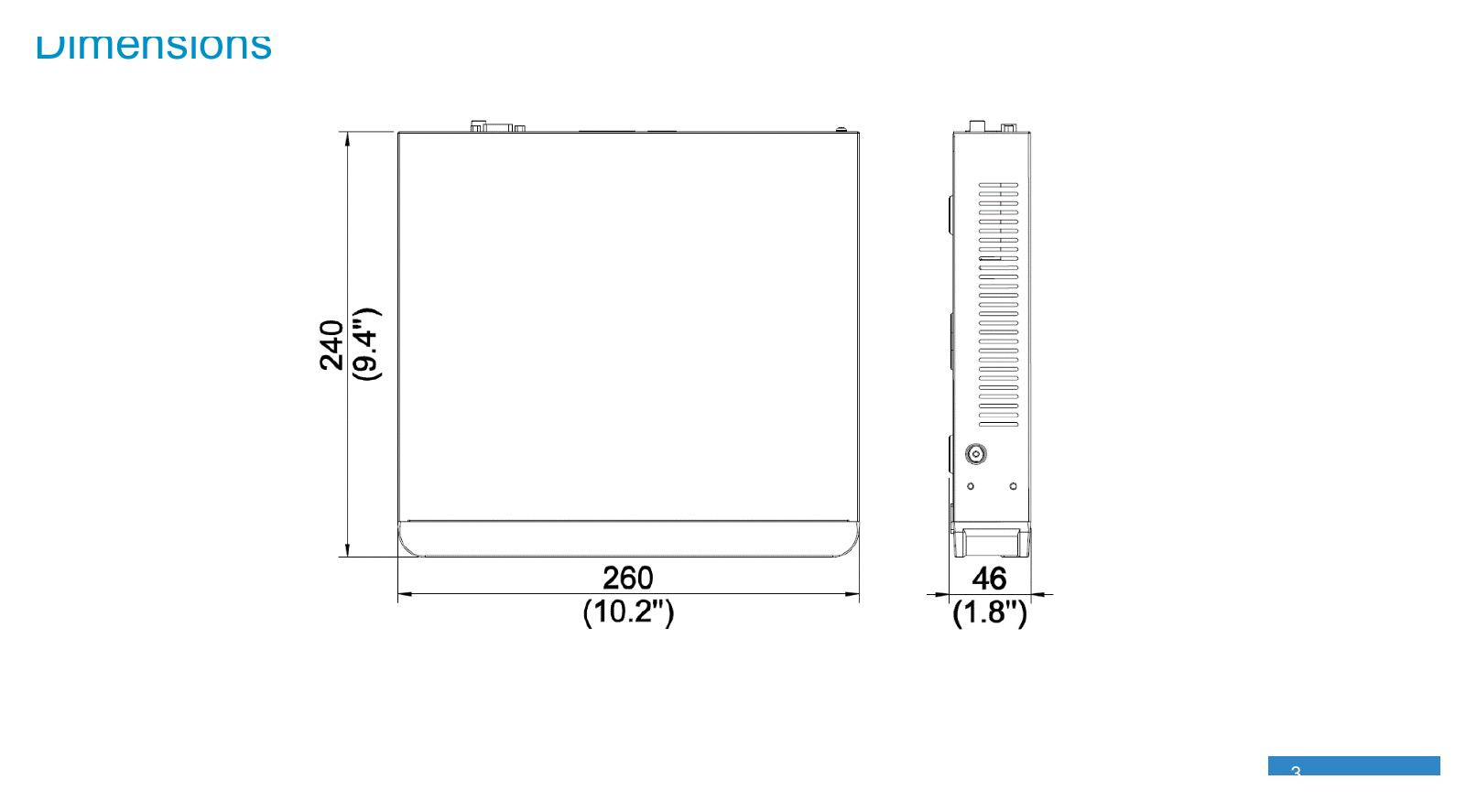

| 尺寸 | Description |
|---|
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
|---|
| Certification | Description |
|---|
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|---|
| FCC | Part15 Subpart B |
|---|
