| IP 視頻輸入 | 4-ch 8-ch 16-ch |
|---|
| 入口頻寬 | 64Mbps |
|---|
| 出口頻寬 | 48Mbps |
|---|
| Remote Users | 128 |
|---|
| 網絡協議 | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, |
|---|
| HDMI/VGA Output | 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|---|
| 錄影解像度 | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|---|
| 音訊輸出 | 1-ch, 3.5mm |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| 同步回放 | 4-ch 8-ch 16-ch |
|---|
| Liveview display | 1/4 1/4/6/8/9 1/4/6/8/9/16 |
|---|
| Corridor Mode Screen | 3/4 3/4/5/7/9 3/4/5/7/9/10/12/16 1-ch snapshot, up to D1 resolution |
|---|
| 解碼格式 | Ultra 265/H.265/H.264 |
|---|
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF 1 x 4K@30, 4 x 5MP@25, 4 x 1 x 4K@30, 4 x 5MP@25, 4 x 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 1080p@30, 8 x 720p@30 1080p@30, 8 x 720p@30, 16 x D1@25 |
|---|
| SATA | 1 SATA interface Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
|---|
| VCA Detection by | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion |
|---|
| Camera | Detection(UMD) |
|---|
| VCA Search | Face Search, Behavior Search |
|---|
| Prevention (SIP), UMD | Total 4-ch |
|---|
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
|---|
| USB 接口 | Rear panel: 2 x USB2.0 |
|---|
| RS232 | NA |
|---|
| RS485 | NA |
|---|
| Alarm In | NA |
|---|
| Alarm Out | NA 12V DC Power Consumption: ≤5 W (without HDD) |
|---|
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|---|

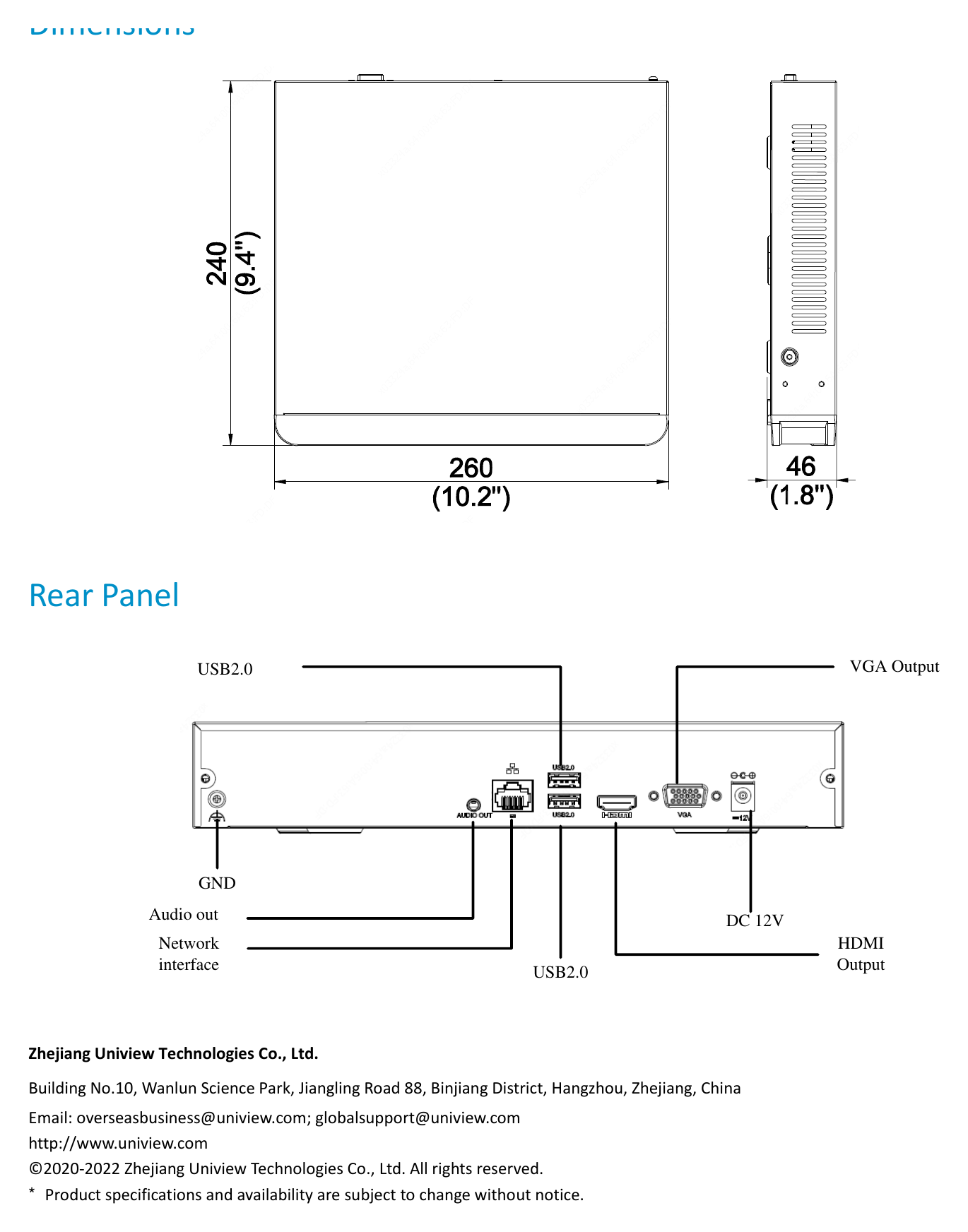

| Dimensions (W×D×H) | 260mm × 240mm × 46mm (10.2"×9.4"×1.8 ") |
|---|
| Weight (without HDD) | ≤0.98kg (2.16 lb) |
|---|
| Certification | CE, FCC, UL, RoHS, WEEE |
|---|
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
|---|
| FCC | Part15 Subpart B, ANSI C63.4 |
|---|
| USB2.0 | VGA Output GND |
|---|
| Audio out | DC 12V |
|---|
| Network | HDMI |
|---|
| 接口 | USB2.0 Output |
|---|
