Uniview IPC6312LFW-AX5C-VG1 為IPC6312LFW-AX5C-VG1，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC6312LFW-AX5C-VG1 香港價格連安裝報價。
| Max Resolution | 2 MP |
|---|---|
| Sensor | 1/2.8" CMOS |
| 最低照度 | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >52 dB |
| 焦距 | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.6 |
| Field of View (H) | 106.6° to 31.5° |
| Field of View (V) | 56.5° to 16.9° |
| Field of View (D) | 138.6° to 38.7° |
| DORI Distance (Detect) | 49.7 m to 158.3 m (162.9 ft. to 519.3 ft.) |
| DORI Distance (Observe) | 19.9 m to 63.3 m (65.2 ft. to 207.7 ft.) |
| DORI Distance (Recognize) | 9.9 m to 31.7 m (32.6 ft. to 103.9 ft.) |
| DORI Distance (Identify) | 5.0 m to 15.8 m (16.4 ft. to 51.8 ft.) |
| 隱私遮蔽 | Up to 4 areas |
| 視頻壓縮 | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 1080P (1920 × 1080) max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps |
| 視頻碼率 | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Dual streams |
| OSD | Up to 4 OSDs |
| Auto Tracking | Support, target filtering: human only Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| 除霧 | Digital defog |
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 50 m (164.0 ft.) 15 m (49.2 ft.) |
| Basic Detection | Motion detection, Tampering alarm, Audio detection Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User |
| 音訊壓縮 | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| 雙向語音 | Support |
| Suppression | Support |
| 取樣率 | 16KHZ |
| Edge Storage | MicroSD, up to 512 GB |
| 網絡儲存 | ANR, NAS (NFS) TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and |
| 安全 | Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| 水平速度 | 1°/s to 40°/s |
| 垂直速度 | 1°/s to 30°/s |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) CE LVD (EN 62368-1: 2020+A11: 2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) |
| 防護等級 | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| 供電 | DC 12 V (±25%), PoE (IEEE 802.3at) |
| 功耗 | 18 W |
| 電源接口 | Ø5.5 mm coaxial power plug |
| 尺寸 | 133 mm × 185 mm × 286 mm (Ø 5.2" × 7.3" × 11.3" ) (L × W × H) |
| 重量 | 788 g (1.74 lb.) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| 防雷 | 2 KV |
| Reset Button | Support |
| Heater | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| TR-JB07-D-IN | TR-UP06-B-IN TR-CM06-D Bullet Junction Box(Support wiring from |
| Bullet Pole Mounting Bracket | Alarm Ball Machine Hoisting Bracket behind) |
| TR-UC08-C | TR-A01-IN TR-UP06-C-IN Pole Mounting Bracket for Bullet Junction |
| Bullet&Dome Corner Mounting Bracket | NPT 3/4'' Waterproof Cable Gland Box Only Unlimited New View http://www.uniview.com overseasbusiness@uniview.com; globalsupport@uniview.com No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

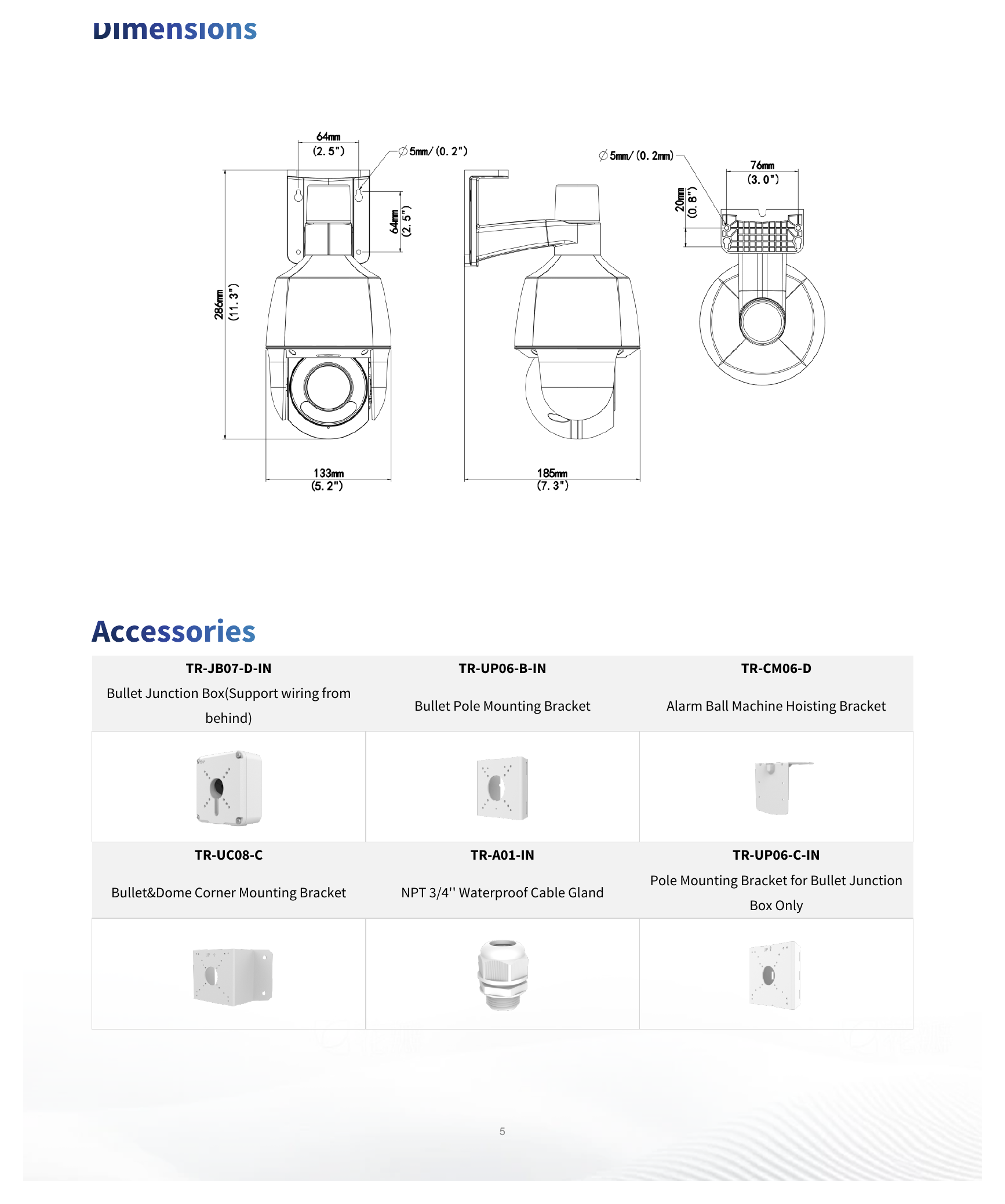

133 mm × 185 mm × 286 mm (Ø 5.2" × 7.3" × 11.3" ) (L × W × H)｜重量 788 g (1.74 lb.)｜Unit: mm
IPC6312LFW-AX5C-VG1 Uniview IPC6312LFW-AX5C-VG1亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC6312LFW-AX5C-VG1 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 EZView/EZLive App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：Sensor方面，IPC6312LFW-AX5C-VG1 係 1/2.8" CMOS，PKC1150-4-Z28-C-P 係 1/2.7" 5MP CMOS；Shutter方面，IPC6312LFW-AX5C-VG1 係 Auto/Manual, 1 to 1/100000 s，PKC1150-4-Z28-C-P 係 1/100000 to 1/25s；焦距方面，IPC6312LFW-AX5C-VG1 係 2.7 to 13.5 mm，PKC1150-4-Z28-C-P 係 2.8mm to 12mm zoom lens。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 PKC1150-4-Z28-C-P 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC6312LFW-AX5C-VG1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
