| Channel | Channel 1 (Panorama) Channel 2 (Detail) |
|---|
| Sensor | 1/1.8" CMOS |
|---|
| Max Resolution | 32 MP 4 MP Color: 0.0005 Lux (F1.2, AGC ON) |
|---|
| 最低照度 | Color: 0.0003 Lux (F1.0, AGC ON) IR: 0.0003 Lux (F1.2, AGC ON) |
|---|
| Shutter | Auto/Manual, 1 to 1/100000 s |
|---|
| WDR | N/A 120 dB |
|---|
| S/N | > 56 dB |
|---|
| Optical Zoom | N/A 42X |
|---|
| Digital Zoom | N/A 8X |
|---|
| Field of View (H) | 360° 59.47° to 2.20° |
|---|
| Field of View (V) | 110° 35.62° to 1.24° |
|---|
| DORI Distance (Lens) | 2mm 6.0mm to 252.0mm |
|---|
| DORI Distance (Detect) | 31.0 m (101.8 ft.) 93.1 m to 3724.1 m (305.5 ft. to 12218.3 ft.) |
|---|
| DORI Distance (Observe) | 12.4 m (40.7 ft.) 37.2 m to 1489.7 m (122.2 ft. to 4887.3 ft.) |
|---|
| DORI Distance (Recognize) | 6.2 m (20.4 ft.) 18.6 m to 774.8 m (61.1 ft. to 2443.7 ft.) |
|---|
| DORI Distance (Identify) | 3.1 m (10.2 ft.) 9.3 m to 372.4 m (30.5 ft. to 1221.8 ft.) |
|---|
| Light On/Off Control | N/A Auto/Manual |
|---|
| Illumination Distance (IR) | N/A 500 m (1640.4 ft.) |
|---|
| 除霧 | N/A Optical defog, Digital defog |
|---|
| White Balance | Sodium lamp, Area white balance, Outdoor, Locked, Fine tune, Auto2, Auto |
|---|
| Flip | N/A Flip vertical, 180°, Flip horizontal, Normal |
|---|
| HLC | Support |
|---|
| BLC | Support |
|---|
| Heatwave Reduction | N/A Support 4 MP (2688 × 1520) , max. 60 fps; 32 MP (11520 × 2700) , max. 30 fps; 4 MP (2560 × 1440) , max. 60 fps; 16 MP (8192 × 1800) , max. 30fps; 1080P (1920 × 1080) , max. 60 fps; 6144 × 1200, max. 30fps; 720P (1280 × 720) , max. 60 fps; 4096 × 900, max. 30fps; D1 (720 × 576), max. 60 fps; 640 × 360, max. 30 fps; 1080P (1920 × 1080) , max. 60 fps; 720P (1280 × 720) , max. 60 fps; |
|---|
| Frame Rate-Sub Stream | 3072 × 676, max. 30 fps; D1 (720 × 576), max. 60 fps; 640 × 360, max. 60 fps; 720 × 576, max. 60 fps; 640 × 360, max. 60 fps; |
|---|
| Frame Rate-Third Stream | 2048 × 450, max. 30 fps; 704 × 288, max. 60 fps; 352 × 288, max. 60 fps; |
|---|
| 視頻碼率 | 128 Kbps to 16 Mbps |
|---|
| 隱私遮蔽 | Up to 8 areas (8 blacks/ 8 mosaics) 24 areas, up to 8 areas per scene |
|---|
| 視頻壓縮 | H.265, H.264, MJPEG, Ultra 265 |
|---|
| U-code | Support |
|---|
| ROI | Up to 8 areas |
|---|
| Video Stream | Triple streams |
|---|
| OSD | Up to 10 OSDs |
|---|
| Maximum Bitstream | 20 |
|---|
| Maximum Bandwidth | 50 Mbps |
|---|
| 音訊壓縮 | G.711A, G.711U |
|---|
| Audio Bitrate | 128 Kbps |
|---|
| 雙向語音 | Support |
|---|
| Suppression | Support |
|---|
| 取樣率 | 8 kHz, 16 kHz |
|---|
| Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target |
|---|
| People Counting | Support people flow counting and crowd density detection Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|---|
| Multi-target Detection | N/A Support, target filtering: human, non-motor |
|---|
| Auto Tracking | N/A vehicle and vehicle Face Recognition: Max support 16 face |
|---|
| Recognition | N/A libraries, Max supports 100000 faces in face library Motion detection, Ultra motion detection, Motion detection, Ultra motion detection, |
|---|
| Basic Detection | Tampering alarm, Audio detection, Object Tampering alarm, Audio detection removed, Object Left Behind Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
|---|
| Pan Range | N/A 0° to 360° |
|---|
| 水平速度 | N/A 0.1°/s to 300°/s |
|---|
| Tilt Range | N/A -15° to 90° |
|---|
| 垂直速度 | N/A 0.1°/s to 180°/s |
|---|
| Number of Presets | N/A 1024 |
|---|
| Preset Patrol | N/A 16 patrols, up to 64 presets for each patrol |
|---|
| Preset Image Freeze | N/A Support |
|---|
| Home Position | N/A Support |
|---|
| Number of Patrol | N/A 16 |
|---|
| Snow Removal Mode | N/A Support |
|---|
| Patrol Recording | N/A Support |
|---|
| Edge Storage | MicroSD, up to 512 GB |
|---|
| 網絡儲存 | ANR, NAS (NFS) SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, QoS, SSL/TLS, HTTPS, FTP |
|---|
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
|---|
| 用戶管理 | Up to 32 users. 2 user levels: administrator and common user TLS 1.3, Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic |
|---|
| 安全 | and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
|---|
| 客戶端 | EZStation, UNV-Link, UNV-Link Pro Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|---|
| Alarm I/O | 7/3 |
|---|
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 2 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
|---|
| Serial Port | 1 × RS485 |
|---|
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP CE EMC (EN 55032; EN 50130-4; EN IEC 61000-3-2; EN 61000-3-3) FCC SDoC (47 CFR Part 15, Subpart B) UL (UL 62368-1) |
|---|
| Safety | CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) CE-RoHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU) IP67 (IEC 60529) IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |
|---|
| 供電 | DC 24 V (±25%), DC 36 V (±25%) |
|---|
| 功耗 | ≤ 124W |
|---|
| 電源接口 | Wires with cold-pressed terminal |
|---|

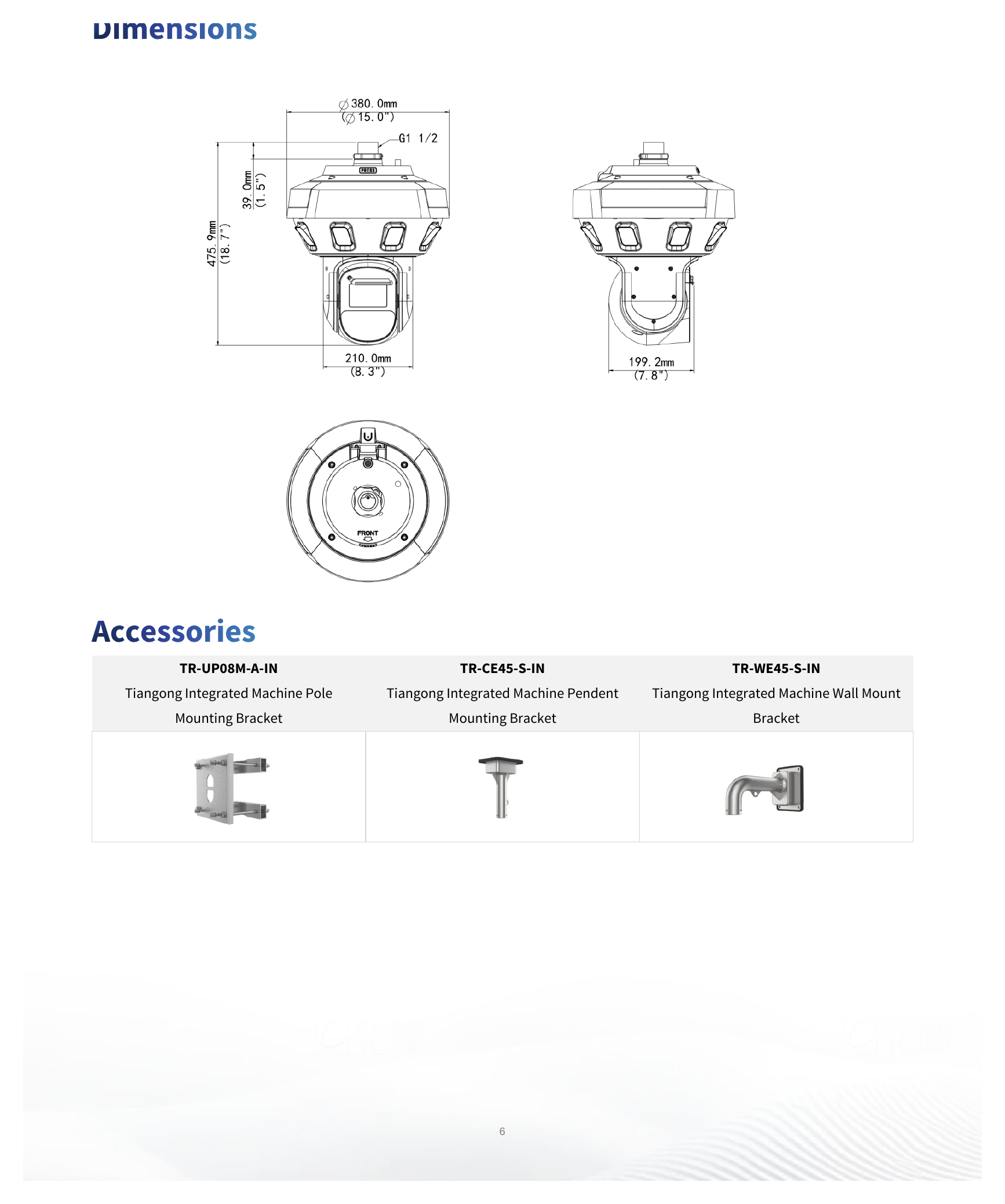

| 尺寸 | Φ380mm * 475.9mm |
|---|
| 重量 | 13.5 kg |
|---|
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
|---|
| 防雷 | 6 KV |
|---|
| Reset Button | Support 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, |
|---|
| 介面語言 | Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
|---|
| Wiper | N/A Manual |
|---|
| TR-UP08M-A-IN | TR-CE45-S-IN TR-WE45-S-IN |
|---|
| Tiangong Integrated Machine Pole | Tiangong Integrated Machine Pendent Tiangong Integrated Machine Wall Mount |
|---|
