| Alarm Linkage | triggering output, electronic map displaying, and |
|---|
| Performance | email sending Radar alarm, no SD card, insufficient SD card |
|---|
| Max. Number of Targets | 32 Alarm Event storage, SD card error, network disconnection, IP conflict, full disk, and illegal access Human: 450.0 m (1476.38 ft) Detection Distance |
|---|
| Vehicle: 600.0 m (1968.50 ft) | SD Card Yes Horizontal: 90° |
|---|
| Detection Angle | Vertical: 13° Network connection: Yellow |
|---|
| Indicator Light | Running status: Red/Green |
|---|
| Max. Detection Speed | 80 km/h, continuous trajectory Power: Green |
|---|
| Min. Detection Speed | 1.8 km/h, continuous trajectory Power |
|---|
| 供電 | DC 12V (±30%), AC 24V (±30%), PoE (802.3at) |
|---|
| Distance Accuracy | ± 1.5 m (± 4.92 ft) Basic: 20W |
|---|
| Angle Accuracy | ± 1° Power Consumption Max.: 24W |
|---|
| Max. Number of Areas | 10 Environment |
|---|
| Modulation Type | FMCW Operating Temperature –40°C to +65°C (–40°F to +149°F) |
|---|
| Scan Frequency | 8 Hz Operating Humidity ≤95% (RH) |
|---|
| Operating Frequency | 24 GHz Storage Temperature –40°C to +80°C (–40°F to +176°F) |
|---|
| Detection Target Type | Human and vehicle Storage Humidity ≤95% (RH) |
|---|
| Function | Protection Grade IP67/IK10 |
|---|
| Radar+PTZ Smart Tracking | Supported on web manager Contact discharge: 6k ESD Air discharge: 8k |
|---|
| Track Mode | Tour, distance priority, and time priority Common mode: ± 6kV Surge Protection Grade Differential Mode: ± 2kV |
|---|
| Region Setting | Alarm area, pre-warning area, and shield area |
|---|
| Target Filtering | Human and vehicle filtering |
|---|
| Product Color | White Manual record, scheduled record, and alarm record Record Mode |
|---|
| Record priority: Manual>Alarm>Scheduled | Casing ADC12+PC |
|---|
| Restore to Factory Default | Restore to default settings with one click 244.9 mm × 184.9 mm × 61.2 mm Product Dimensions (9.64" × 7.28" × 2.41") Authorized username and password, MAC address |
|---|
| 安全 | binding, HTTPS encryption, IEEE 802.1x, and 328.0 mm × 146.0 mm × 278.0 mm |
|---|
| network access control | Packaging Dimensions (12.90"×5.75" × 10.95") |
|---|
| Positioning | GPS, Glonass Net Weight 2.0 kg (4.41 lb) |
|---|
| Map Encoding | Yes Gross Weight 3.2 kg (7.06 lb) |
|---|
| Network | Installation Method Wall mount, ceiling mount, pole mount |
|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to Installation Height 16.40 ft) (9.84 ft recommended) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, Installation Position Install separately DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x Certification |
|---|
| Interoperability | ONVIF Profile S&G, CGI CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; Certifications |
|---|
| User Management | 19 EN 60950-1 CE RED: EN 300440 |
|---|
| Storage | NAS; FTP; micro SD card (256 G) IE: Versions later than IE7 |
|---|
| Browser | Google: Versions earlier than Chrome45 Firefox: Versions earlier than Firefox46 |
|---|
| Management Software | SmartPSS, DSS Port 1 channel (support 5V DC potential and 5mA Alarm Input current) 5 channels (wet contact; support max 12V DC Alarm Output potential and max 300mA current) www.dahuasecurity.com |
|---|
| Package Information | Installation |
|---|
| Security radar | 1 |
|---|
| Ceiling Mount | Wall Mount Corner Mount |
|---|
| Waterproof connector for | DH-PFB510W DH-PFB510W DH-PFB510W+DH-PFA151 network cable |
|---|
| Wrench | 1 |
|---|
| Quick start guide | 1 |
|---|
| Quality certificate | 1 Legal and regulatory information |
|---|
| QR code label | 1 Pole Mount DH-PFA150+DH-PFB510W |
|---|
| Vertical | Horizontal Ordering Information |
|---|
| 類型 | Model Description |
|---|

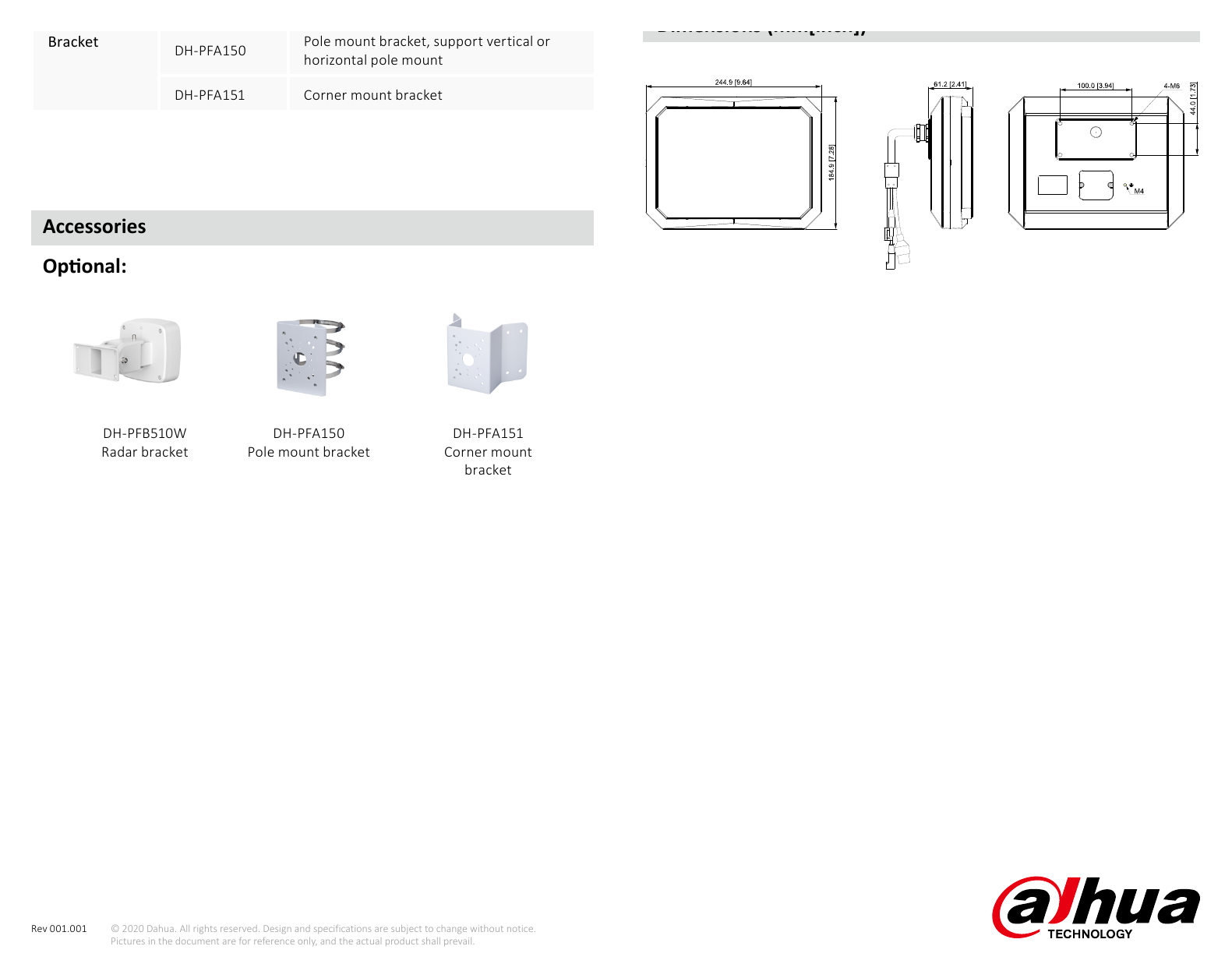

| Radar | DH-PFR4K-D450 450m security radar Radar bracket, support wall mount and DH-PFB510W ceiling mount Dimensions (mm[inch]) |
|---|
| Bracket | Pole mount bracket, support vertical or DH-PFA150 horizontal pole mount |
|---|
| DH-PFA151 | Corner mount bracket Accessories Optional: |
|---|
| DH-PFB510W | DH-PFA150 DH-PFA151 |
|---|
| Radar bracket | Pole mount bracket Corner mount bracket |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
