| System | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, |
|---|
| Third-party Support | JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
|---|
| Main Processor | Quad-core embedded processor |
|---|
| 操作系統 | Embedded LINUX Network |
|---|
| Aduio and Video | Interface 1 RJ-45 Port (10/100Mbps) |
|---|
| IP Camera Input | 4/8/16 Channel Ethernet Port 1 Independent 100Mbps Ethernet Port |
|---|
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
|---|
| PoE | N/A |
|---|
| Display | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, |
|---|
| 接口 | 1 HDMI, 1 VGA Network Function SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.) HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 Max. User Access 128 users Resolution |
|---|
| VGA: 1920×1080, 1280×1024, 1280×720 | Smart Phone iPhone, iPad, Android |
|---|
| Decoding Capacity | 2ch@4K(30fps)/8ch@1080P(30fps) Interoperability ONVIF 2.4, SDK, CGI 4CH: 1/4 Storage |
|---|
| Multi-screen Display | 8CH: 1/4/8/9 16CH: 1/4/8/9/16 Internal HDD 1 SATA III Port, Up to 6 TB capacity for each HDD Camera title, Time, Camera lock, Motion detection, HDD Mode Single OSD Recording Recording |
|---|
| USB | 2 ports(1 Rear USB2.0, 1 Front USB2.0) |
|---|
| Compression | Smart H.265+/H.265/Smart H.264+/H.264 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P RS232 N/A Resolution etc. |
|---|
| RS485 | N/A |
|---|
| Record Rate | 80Mbps |
|---|
| Bit Rate | 16Kbps ~ 20Mbps Per Channel Electrical Manual, Schedule (Regular, Continuous), MD Power Supply DC12V/2A |
|---|
| Record Mode | (Video detection: Motion Detection, Tampering, |
|---|
| Video Loss), Stop | Power Consumption <6.3W (Without HDD) 1 ~ 120 min (default: 60 min), Pre-record: Record Interval 1 ~ 30 sec, Post-record: 10 ~ 300 sec Environmental |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa Video Detection and Alarm |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Recording, PTZ, Tour, Video Push, Email, Snapshot, Trigger Events Buzzer and Screen Tips Construction Motion Detection, MD Zones: 396 (22 × 18), Video Detection |
|---|

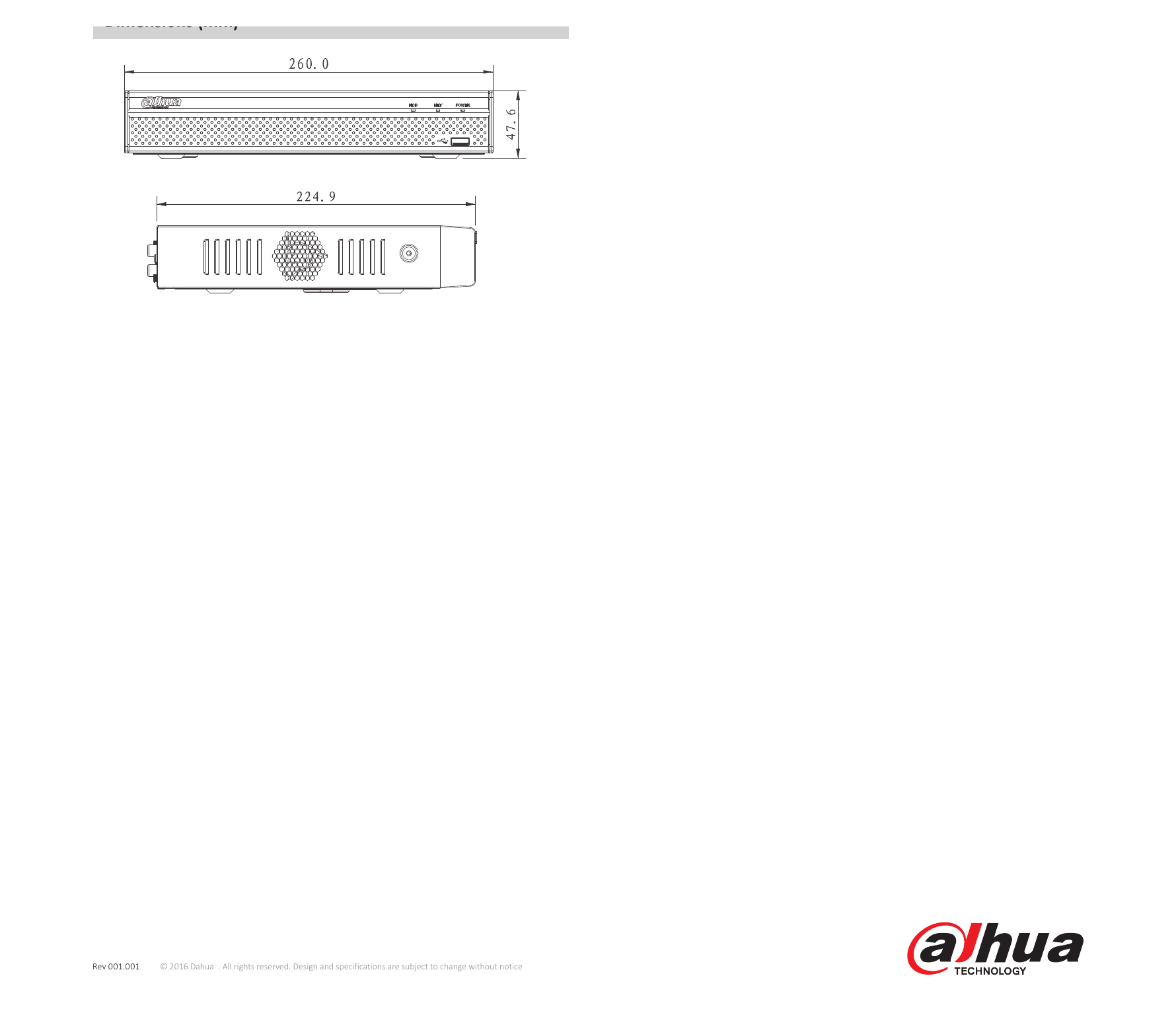

| Video Loss and Tampering | Compact 1U, 260mm×224.9mm×47.6mm Dimensions (10.2" x 8.9" x 1.9") |
|---|
| 警報輸入 | N/A |
|---|
| 淨重 | 0.8kg (1.76 lb) (without HDD) |
|---|
| 警報輸出 | N/A |
|---|
| 毛重 | 1.6kg(3.53 lb)(without HDD) Playback and Backup 4CH: 1/4 Certifications |
|---|
| Playback | 8CH: 1/4/9 CE EN55032, EN55024, EN50130-4, EN60950-1 16CH: 1/4/9/16 FCC Part 15 Subpart B, ANSI C63.4-2014 Time /Date, MD and Exact Search |
|---|
| Search Mode | UL UL60950-1 (accurate to second), Smart search Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Playback Function Camera, Full Screen, Backup Selection, Digital Zoom |
|---|
| Backup Mode | USB Device/Network www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|
| 類型 | Part Number Description 4 Channel Compact 1U 4K&H.265 4 Channel NVR DHI-NVR4104HS-4KS2 Lite Network Video Recorder 8 Channel Compact 1U 4K&H.265 8 Channel NVR DHI-NVR4108HS-4KS2 Lite Network Video Recorder 16 Channel Compact 1U 4K&H.265 16 Channel NVR DHI-NVR4116HS-4KS2 Lite Network Video Recorder Dimensions (mm) |
|---|
| Rev 001.001 | © 2016 Dahua . All rights reserved. Design and specifications are subject to change without notice www.dahuasecurity.com |
|---|
